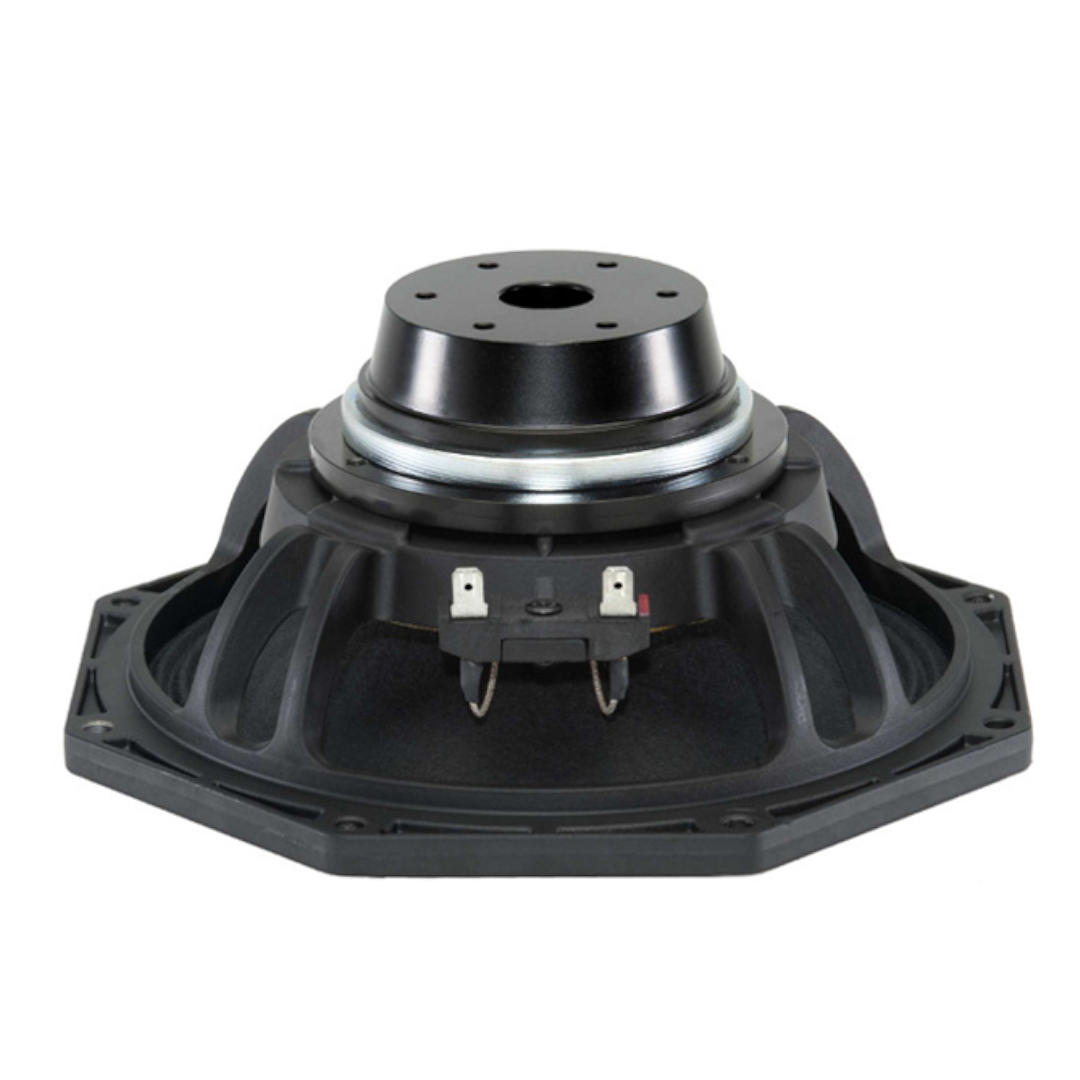

B&C 8MBX51 8″ Professional Mid-Bass LF Driver
The B&C 8MBX51 is a professional 8-inch mid-bass LF driver engineered for applications requiring high efficiency, lightweight construction, and broad bandwidth performance from compact enclosure designs. Built around a neodymium motor structure and optimized moving assembly, the B&C 8MBX51 has been designed specifically for two-way loudspeaker systems where strong mid-bass output, controlled response, and reduced system weight are important design priorities.
Part of B&C’s MBX series, the driver combines lightweight materials with distortion reduction technologies and optimized thermal management. Its design focuses on delivering efficient output and broad operating bandwidth while maintaining compact loading characteristics suitable for modern professional loudspeaker systems. The MBX series was developed specifically as a high-efficiency alternative for compact two-way systems and point-source loudspeaker designs.
Key Features
- 200 W nominal power handling
- 400 W continuous program power capacity
- 51 mm (2 inch) aluminium voice coil
- 96.5 dB sensitivity
- 60 Hz – 4000 Hz frequency response
- Neodymium ring magnet assembly
- Aluminium demodulation ring for reduced distortion
- Ventilated voice coil gap for reduced power compression
- Waterproof impregnated cone treatment
- Optimized for compact two-way loudspeaker systems
Neodymium Motor Structure and Distortion Reduction
The B&C 8MBX51 utilizes a lightweight neodymium ring magnet assembly, allowing the driver to maintain strong motor force while significantly reducing total driver weight. This lightweight construction makes the driver particularly suitable for portable loudspeaker systems and applications where system mass must be minimized.
The motor structure incorporates an aluminium demodulation ring, designed to reduce distortion by minimizing inductance modulation effects. Lower distortion characteristics contribute to smoother response behavior and improved system integration across the driver’s intended bandwidth. This design approach is particularly beneficial in compact two-way systems where clean crossover integration is critical.
The driver operates with a measured 1.3 T flux density, helping maintain effective control over cone movement while supporting high efficiency and stable output characteristics.
Voice Coil Construction and Thermal Management
At the center of the B&C 8MBX51 is a 51 mm aluminium voice coil utilizing an inside/outside wound copper clad aluminium wire configuration on a glass fibre former. This construction balances low moving mass with the thermal stability required for professional applications.
The driver supports 200 W nominal power handling and 400 W continuous program power handling, making it suitable for professional systems requiring sustained output capability. A ventilated voice coil gap improves airflow through the motor structure, helping reduce thermal compression during continuous operation.
Combined with the lightweight moving assembly, the cooling architecture contributes to improved transient performance and more consistent output under demanding operating conditions.
Cone and Suspension Design
The B&C 8MBX51 uses a curvilinear cone profile combined with a triple-roll surround geometry, allowing controlled cone movement while maintaining the excursion capability required for mid-bass applications.
A single spider suspension system maintains mechanical stability while preserving efficiency and transient performance. The cone assembly utilizes a waterproof impregnated cone treatment, improving resistance to humidity and environmental exposure in portable and installed sound reinforcement systems.
This suspension and cone geometry supports controlled low-frequency behavior while maintaining useful upper bandwidth extension for compact system integration.
Compact Enclosure Integration
The B&C 8MBX51 has been optimized for compact enclosure designs.
The manufacturer recommends a 19 dm³ enclosure volume with a 63 Hz tuning frequency, making the driver particularly suitable for compact vented loudspeaker systems where space efficiency is important. These loading characteristics allow designers to achieve useful low-frequency extension while maintaining manageable cabinet dimensions.
Typical applications include:
- Compact two-way loudspeaker systems
- Portable PA systems
- Point-source loudspeaker designs
- Professional stage monitors
- Installed sound reinforcement systems
- Compact mid-bass applications
Technical Specifications
Nominal Diameter: 200 mm (8 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 5.9 Ω
Nominal Power Handling: 200 W
Continuous Program Power: 400 W
Sensitivity: 96.5 dB
Frequency Range: 60 Hz – 4000 Hz
Voice Coil Diameter: 51 mm (2 in)
Winding Material: Aluminium
Former Material: Glass Fibre
Winding Depth: 15 mm
Magnetic Gap Depth: 7 mm
Flux Density: 1.3 T
Magnet Material: Neodymium Ring
Cone Shape: Curvilinear
Surround Shape: Triple Roll
Spider Design: Single
Pole Design: T-Pole
Cone Treatment: Waterproof Impregnated Cone
Recommended Enclosure: 19 dm³
Recommended Tuning: 63 Hz
Thiele-Small Parameters
Fs: 60 Hz
Re: 4.9 Ω
Qes: 0.31
Qms: 5.6
Qts: 0.29
Vas: 23 dm³
Sd: 220 cm²
η₀: 1.7 %
Xmax: 6 mm
Xvar: 8 mm
Mms: 20 g
BL Factor: 11.4 Tm
Le: 0.4 mH
EBP: 194 Hz
Mounting Information
Overall Diameter: 225 mm
Bolt Circle Diameter: 210 mm
Baffle Cutout Diameter: 187 mm
Depth: 93 mm
Flange and Gasket Thickness: 9 mm
Air Volume Occupied by Driver: 1.1 dm³
Net Weight: 1.8 kg
Shipping Weight: 2.25 kg
Shipping Box: 255 × 255 × 150 mm
Recone Kit: RCK008MBX518
Applications
The B&C 8MBX51 is engineered for professional mid-bass applications where reduced weight, broad bandwidth, and compact enclosure loading are priorities. Its lightweight neodymium motor structure, efficient cooling architecture, and distortion reduction technologies make it particularly suitable for portable loudspeaker systems, compact two-way designs, stage monitoring, and professional sound reinforcement applications.
For system designers requiring a lightweight professional mid-bass transducer optimized for compact systems and efficient acoustic output, the B&C 8MBX51 provides a balanced combination of efficiency, reduced distortion, and installation flexibility.
