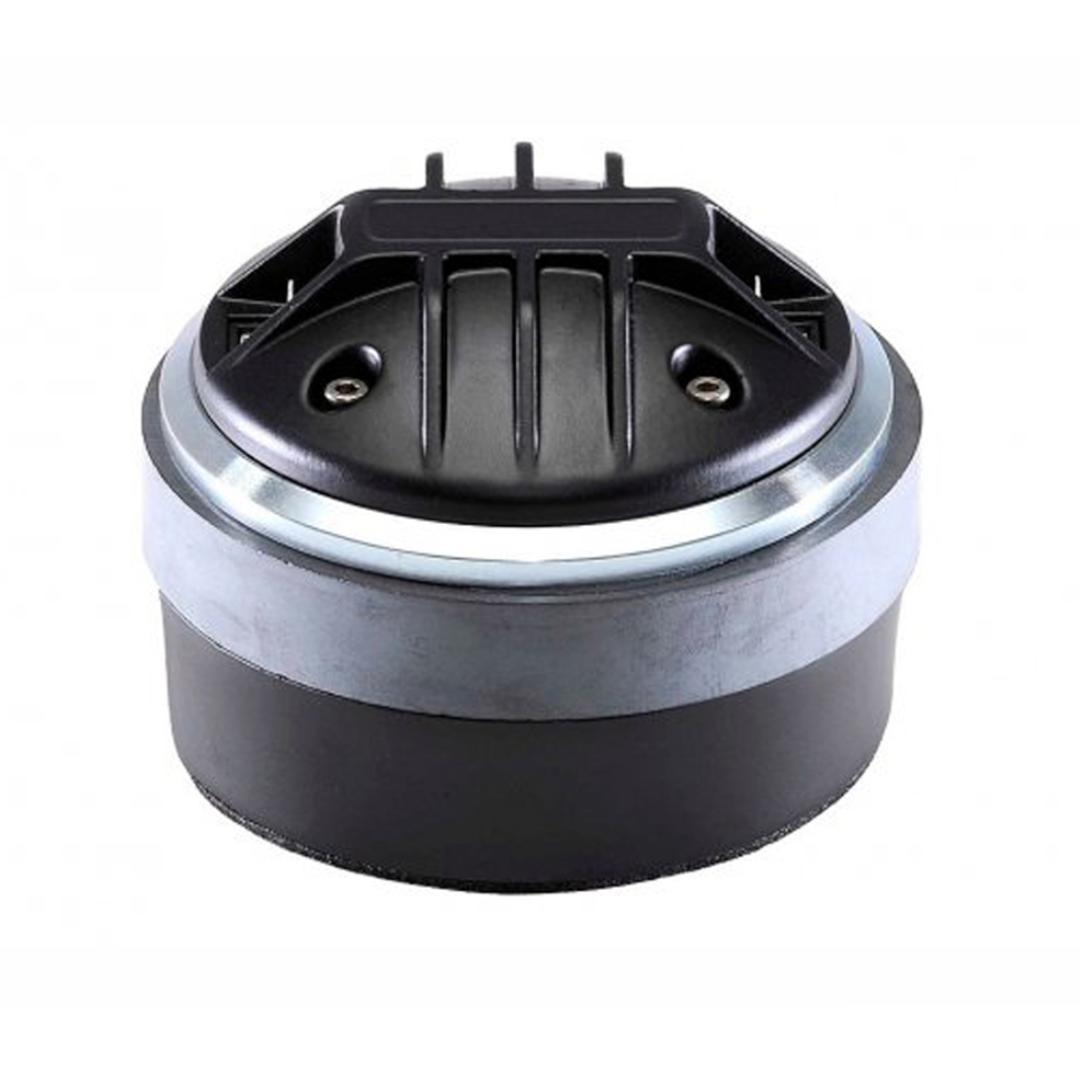

B&C DE254TN – Precision 1.4-Inch Neodymium Titanium Compression Driver for Professional Horn Systems
The B&C DE254TN is B&C’s titanium 1.4-inch exit compression driver built around the proven 44 mm voice coil platform. The step from a 1-inch to a 1.4-inch exit is not just a size increase — it’s a fundamental change in how the compression driver couples to the horn, how the horn controls directivity, and how the system performs in the critical crossover region. The B&C DE254TN delivers 106.5 dB sensitivity, 60 W AES power handling, a 1 kHz – 19 kHz bandwidth, and 1.85 T neodymium flux through a 36 mm throat that pairs with the full-size professional horns used in touring and installed sound systems.
The 1.4-inch exit is the industry standard large-format compression driver throat size. It provides a larger acoustic coupling area than 1-inch and 1.3-inch exits, which means less compression at the throat, more efficient energy transfer to the horn, and better low-frequency performance from the horn body. When a 1-inch driver compresses its output through a 25 mm exit, it generates high SPL but works harder at lower frequencies. The B&C DE254TN’s 36 mm exit moves more air with less effort, which is why it maintains usable output down to 1 kHz and supports a 1.5 kHz crossover with authority.
The 19 kHz upper frequency limit is the highest of any compression driver in B&C’s HF range — 1 kHz above the 18 kHz ceiling shared by most of B&C’s other HF drivers. The titanium diaphragm’s stiffness and the 0.11 mH inductance keep the response extended and usable into the top octave of human hearing, where air and shimmer define the character of the high-frequency section.
At 2.4 kg and 120 mm overall diameter with a 1.5 kHz recommended crossover, the B&C DE254TN is built for the professional two-way and three-way speaker systems that define touring and installed sound — the cabinets running 1.4-inch horns where output, coverage, and high-frequency quality are non-negotiable. Available in 8 Ω with a user-replaceable titanium diaphragm (part number MMD5028M) and a fast-on version for systems using push-on terminal connections.
Design and Construction of the B&C DE254TN
The B&C DE254TN uses a 44 mm (1.7-inch) aluminium voice coil driving a titanium diaphragm through a 1.4-inch (36 mm) exit throat. The 44 mm coil is the same diameter used in the 1-inch DE502 and DE160 — a proven platform that provides strong thermal capacity and efficient drive force. The difference is the exit: where the DE502 compresses the 44 mm coil’s output through a 25 mm throat, the B&C DE254TN uses a 36 mm throat that reduces the compression ratio and changes the driver’s acoustic behaviour.
The lower compression ratio means the diaphragm doesn’t need to work as hard to generate output at the throat. This reduces distortion, improves linearity at higher SPL, and allows the driver to maintain cleaner output at the lower end of its operating range. The trade-off is slightly lower sensitivity — 106.5 dB versus the DE502’s 107 dB — because the larger exit distributes the acoustic energy across a wider area. In practice, the 0.5 dB difference is negligible, and the B&C DE254TN’s cleaner low-frequency performance through the larger exit more than compensates.
The magnetic circuit produces 1.85 T of flux density from a neodymium magnet assembly. While slightly lower than the DE502’s 1.9 T, the 1.85 T is still among the highest in B&C’s HF range and provides the concentrated magnetic field the 44 mm coil needs for 106.5 dB sensitivity and 60 W AES power handling. The neodymium motor keeps the total weight to 2.4 kg — competitive for a 1.4-inch exit driver with a 44 mm coil.
The titanium diaphragm delivers the bright, detailed, forward treble character that titanium is known for in professional compression drivers. The stiffness of titanium maintains pistonic dome behaviour at higher frequencies than polymer alternatives, producing sharper transient definition and more high-frequency energy in the presence and brilliance bands. The characteristic titanium resonant peak provides the forward treble projection that live sound applications demand.
The 0.11 mH inductance is very low for a 44 mm coil driver, keeping the impedance curve flat through the 19 kHz upper limit. Low inductance means the response doesn’t roll off prematurely at the top of the range, and passive crossover networks behave more predictably. The B&C DE254TN’s electrical behaviour is clean and well-controlled through the entire operating bandwidth.
At 2.4 kg, 120 mm overall diameter, and 85 mm depth, the B&C DE254TN is deeper than B&C’s 1-inch and 1.3-inch exit drivers. The 85 mm depth reflects the larger compression chamber and phase plug assembly required for the 1.4-inch exit — the acoustic path from the diaphragm to the throat is longer, which adds depth to the driver body. Four M6 mounting holes on a 102 mm bolt circle at 90° intervals match the same bolt pattern used on the DE910 and DE910TN, providing compatibility with standard 1.4-inch horn flanges.
The fast-on version offers an alternative connection method using push-on terminal tabs instead of solder or screw terminals — a practical option for production environments where assembly speed matters.
Performance and Applications for the B&C DE254TN
The B&C DE254TN delivers 106.5 dB sensitivity across a 1 kHz – 19 kHz bandwidth with a recommended crossover frequency of 1.5 kHz. The 106.5 dB sensitivity provides comfortable headroom above woofer sections in the 96–100 dB range, and the 1.5 kHz crossover lets the horn take over directivity control well below the frequency where most woofers begin to beam.
The 19 kHz upper frequency limit is the highest of any compression driver in B&C’s HF range. Most B&C HF drivers reach 17–18 kHz — the B&C DE254TN extends 1–2 kHz beyond that ceiling. The additional high-frequency extension adds air and detail at the very top of the audible range, which is perceptible in well-designed systems as a sense of openness and sparkle that drivers with earlier rolloff can’t reproduce.
The 60 W AES / 120 W program power handling is higher than the DE502’s 50 W — the 1.4-inch exit format’s lower compression ratio means the diaphragm experiences less back-pressure at high power levels, which reduces mechanical stress and allows B&C to rate the driver for higher sustained power. For systems running at sustained high output, the B&C DE254TN handles 20% more power than B&C’s flagship 1-inch titanium driver.
The 1.4-inch exit is the specification that most significantly differentiates the B&C DE254TN from the 1-inch range. Larger-exit compression drivers pair with larger horns, and larger horns provide three key advantages. First, lower cutoff frequency — a 1.4-inch horn can control directivity to lower frequencies than a 1-inch horn of the same coverage angle. Second, wider coverage at lower frequencies — the horn body has more physical area to shape the wavefront. Third, lower distortion — the larger throat reduces compression losses and nonlinear behaviour.
For system designers, the move from 1-inch to 1.4-inch means better pattern control through the crossover region, smoother power response, and more consistent coverage across the listening area. These are the performance characteristics that separate professional touring and installed systems from compact PA — and the B&C DE254TN is the titanium 1.4-inch driver that delivers them from B&C’s proven 44 mm coil platform.
The titanium diaphragm’s bright, projecting character is particularly effective on 1.4-inch horns. The larger horn body loads the driver more efficiently at lower frequencies, and the titanium’s high-frequency energy projects through the horn’s coverage pattern with maximum authority. In live sound environments where the audience is distant and ambient noise is high, the B&C DE254TN on a well-designed 1.4-inch horn delivers vocal clarity and transient definition that carries to every seat.
Ideal applications for the B&C DE254TN include:
- Professional two-way and three-way touring speaker systems with 1.4-inch horns
- Installed sound systems in venues, clubs, theatres, and houses of worship
- Line array HF sections requiring 1.4-inch exit compatibility
- Two-way systems crossing over at 1.5 kHz for optimised directivity control
- High-fidelity PA systems where the 19 kHz extension adds air and detail
- Stage monitors and side-fill systems requiring titanium projection
- Systems upgrading from 1-inch exit drivers to 1.4-inch for improved coverage and output
- Fast-on terminal configurations for production-line assembly
Specifications – B&C DE254TN
- Throat Diameter: 36 mm (1.4 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 7.8 Ω
- Nominal Power Handling: 60 W
- Continuous Power Handling: 120 W
- Sensitivity: 106.5 dB
- Frequency Range: 1 kHz – 19 kHz
- Recommended Crossover: 1.5 kHz
- Voice Coil Diameter: 44 mm (1.7 in)
- Winding Material: Aluminium
- Inductance: 0.11 mH
- Flux Density: 1.85 T
- Magnet Material: Neodymium
- Diaphragm Material: Titanium
- Replacement Diaphragm: MMD5028M
- Net Weight: 2.4 kg (5.3 lb)
Mounting Information – B&C DE254TN
- Overall Diameter: 120 mm (4.7 in)
- Depth: 85 mm (3.3 in)
- Bolt Pattern: Four M6 holes on 102 mm (4 in) bolt circle, 90° apart
- Note: Also available in fast-on version
Conclusion – B&C DE254TN Compression Driver
The B&C DE254TN is B&C’s titanium gateway into the 1.4-inch exit class. The 44 mm voice coil platform is proven across the DE502 and DE160, and the 1.4-inch exit elevates its performance with lower compression, cleaner low-frequency output, and compatibility with the full-size professional horns that touring and installed sound systems demand.
The 19 kHz upper frequency limit leads B&C’s entire HF range on high-frequency extension. The 60 W AES power handling exceeds the DE502 by 20%. The 1.85 T neodymium motor and titanium diaphragm deliver the bright, projecting treble character that live sound professionals rely on for vocal clarity and transient definition at distance.
The move from 1-inch to 1.4-inch exit is the step that separates compact PA from professional system design. Larger horns provide better pattern control, smoother coverage, and lower distortion — and the B&C DE254TN is the titanium 1.4-inch driver that makes those advantages accessible from a proven, lightweight, neodymium-powered platform.
For professional touring systems, installed sound, line arrays, and any application where a 1.4-inch compression driver needs to deliver titanium detail with B&C’s motor engineering behind it, the B&C DE254TN is the driver that brings the 44 mm coil platform to the large-format horn class. Nineteen kilohertz of extension, 1.85 Tesla of motor authority, and the titanium projection that reaches the back row.
