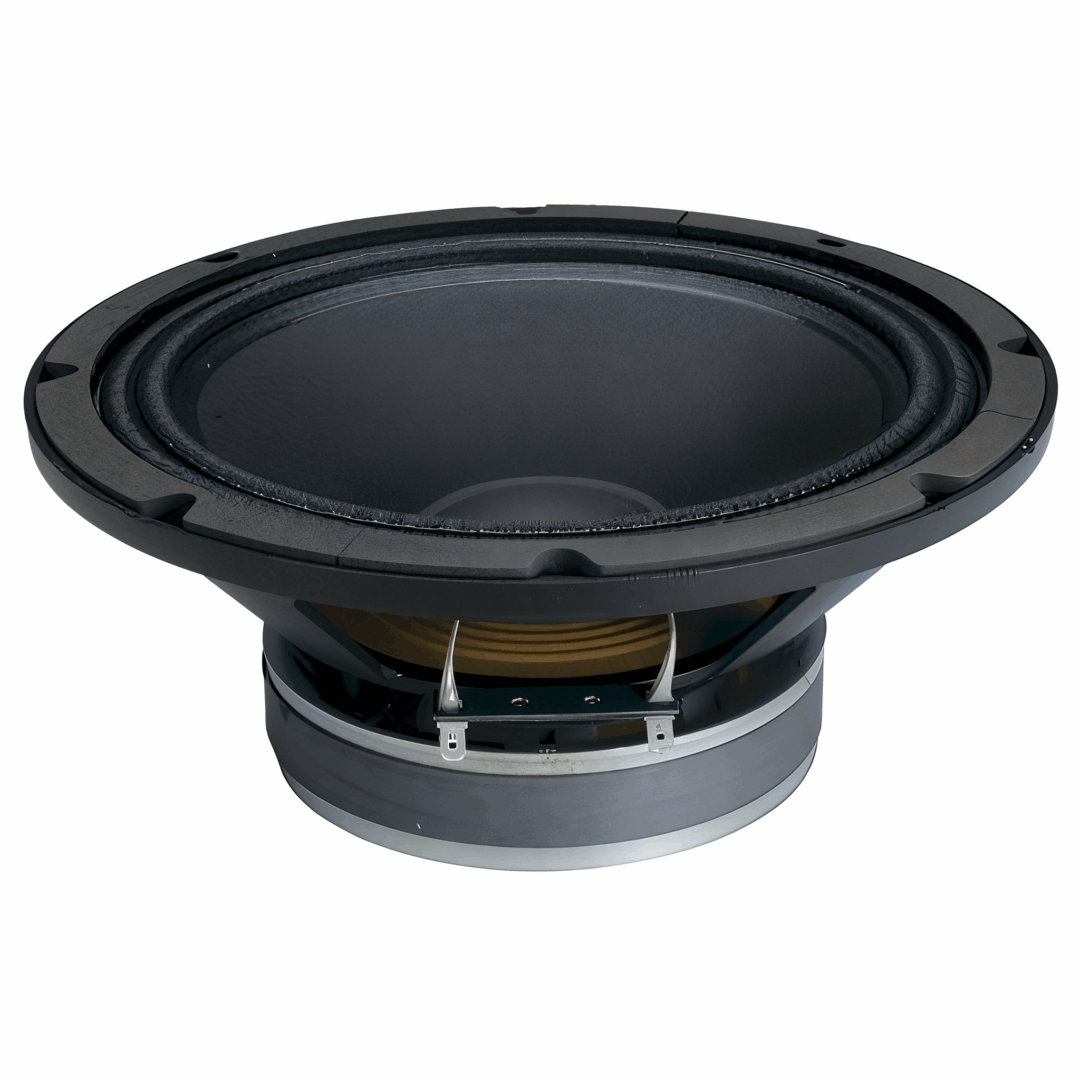

Ciare PW252 – 10″ High-Output Mid-Bass/Woofer Driver
The Ciare PW252 is a high-performance 10-inch driver designed for sound systems that demand strong low-mid frequency response, excellent sensitivity, and dependable power handling. Built with robust materials and engineered precision in Italy, this driver delivers tight, musical bass with strength and clarity. It’s ideal for vented cabinets, fill or mid-bass modules, and portable PA applications where power meets restraint.
With a balance of reliable performance, good thermal handling, and a design optimized for real-world usage, Ciare PW252 offers the kind of output and consistency needed in serious loudspeaker builds.
Tight Low-Mid Output & Balanced Bandwidth
Featuring a nominal diameter of 250 mm (10 in), the Ciare PW252 moves enough air to reproduce bass and low-mid frequencies with authority without becoming overly large or cumbersome. Its frequency range of 45 Hz to 3000 Hz gives it broad usable bandwidth—it hits into the bass, supports midbass and low-mid, and hands over to upper frequencies cleanly when paired with a correct driver or horn.
This range makes it flexible: usable in vented or reflex enclosures tuned for bass, or in full-range cabinets needing decent low-mid reach without a separate subwoofer, especially in smaller venues or portable systems.
Reliable Power Handling & Durability
The PW252 is rated for nominal power handling of 150 W yet supports continuous (program) power of 400 W, giving it headroom to handle peaks and dynamic musical content without overload. Its 50 mm (2-inch) voice coil ensures both mechanical strength and thermal resilience—helping it resist overheating under extended use.
Thermal considerations like ventilated magnet structures and quality voice coil formers ensure that distortion from heat build-up (power compression) remains low, even when pushed. The PW252 keeps output stable over time under challenging conditions.
Strong Sensitivity & System Efficiency
With a sensitivity of 97 dB (1W/1m), the Ciare PW252 delivers ample sound pressure output with modest amplifier power. That level of efficiency helps systems reach high SPLs with less amp load, which matters in both portable rigs and fixed installations.
Combined with its power handling, this makes the PW252 effective in designs where dynamic response and punch are required without overengineering the amp side.
Solid Electrical Behavior & Integration
Operating at a nominal impedance of 8 Ω, with a minimum impedance around 6 Ω, the Ciare PW252 provides stable load behavior for common amplifiers and crossover networks. This predictability eases system design, cabinet matching, and ensures performance remains consistent across various setups.
For designers working with passive crossovers or active DSP setups, less tweaking is required since impedance doesn’t shift negatively under load.
Rugged Design & Real-World Reliability
Ciare built the PW252 for durability. Its cone, surround, and motor are made to withstand real usage. The voice coil former material is selected for heat resistance and mechanical stability, the suspension preserves alignment and excursion without sag over time, and the basket is constructed for rigidity.
These design traits help ensure consistent sound quality, lower distortion, and reduced risk of mechanical failure even after frequent transport, high output, or long-term installation.
Ideal Applications
The Ciare PW252 works especially well in:
-
Ventilated mid-bass cabinets and reflex designs needing extension down to the low-mid region
-
Full-range top enclosures that benefit from particular mid-bass strength
-
Portable PA cabinets where weight vs performance trade-offs matter
-
Fill or side-fill systems in larger audio setups
-
OEM speaker builds that require reliable, scalable, and consistent drivers
Its combination of sensitivity, power, and bandwidth makes the PW252 versatile for many professional audio situations.
Specifications
-
Nominal Diameter: 250 mm (10 in)
-
Voice Coil Diameter: 50 mm (2 in)
-
Continuous Power Handling: 400 W
-
Nominal Power Handling: 150 W
-
Nominal Impedance: 8 Ω
-
Minimum Impedance: ~6 Ω
-
Frequency Range: 45 Hz – 3000 Hz
-
Sensitivity: 97 dB (1W/1m)
Performance Summary
The Ciare PW252 stands out for delivering articulate low-mid response with good power headroom and strong sensitivity. It balances output and clarity well, preserving bass punch without sacrificing midrange accuracy. When pushed, it holds its tone and resists distortion from thermal stress thanks to its voice coil and motor design.
In cabinets tuned appropriately, the PW252 gives useful extension, loudness, and musicality across a wide range of genres and use cases.
Conclusion
If your speaker design needs a driver that delivers strong mid-bass, high efficiency, and dependable power without going overboard in size or weight, Ciare PW252 is a solid choice. It offers the musical foundation, reliability, and performance demanded by touring rigs, installations, or top-end PA systems.
For audio professionals who want clarity, bass presence, and system efficiency from a 10-inch driver, the Ciare PW252 delivers consistent value and sonic strength.
