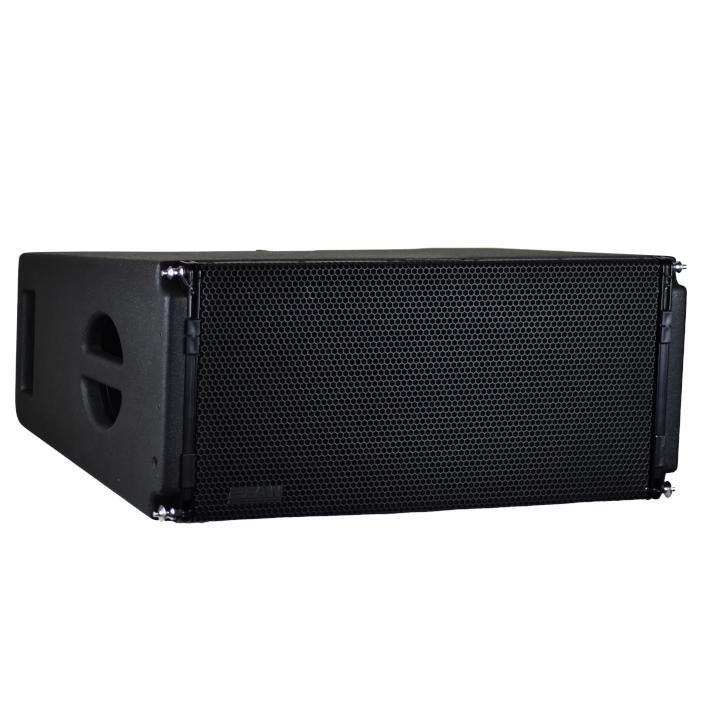

EAW KF210
2-Way Dual-Amp/Passive Touring & Installation Line Array
The EAW KF210 is a medium-format, high-output line array loudspeaker designed to deliver EAW’s iconic KF Series performance in a highly efficient, lightweight package. Engineered to support a wide range of demanding live sound reinforcement, touring, and fixed-installation applications, the KF210 provides an uncompromising sonic signature while requiring minimal crew resources to deploy.
Streamlined Portability Meets Extreme Road-Readiness

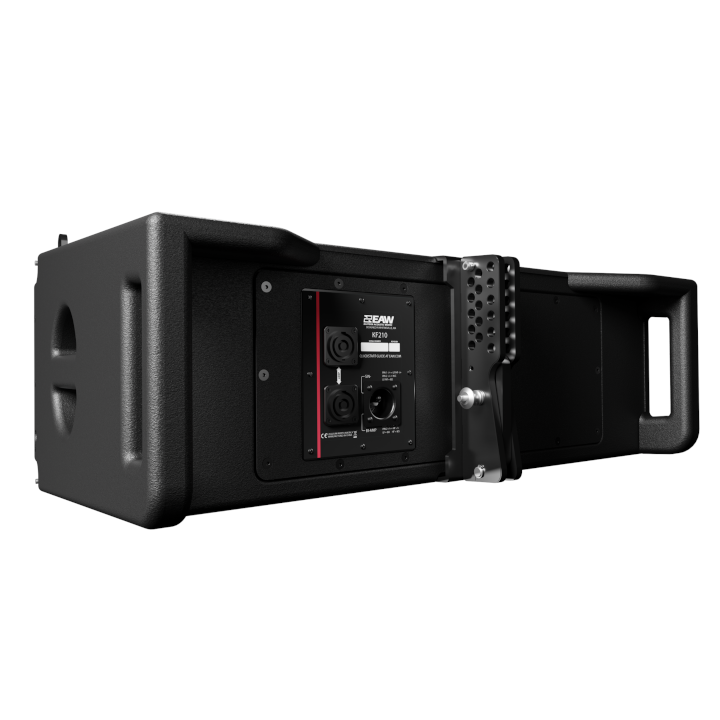

Designed with operational efficiency in mind, the KF210 weighs in at a remarkably light 29 kg (60 lbs). It features four strategically placed, multi-orientational handles that allow small crews to seamlessly maneuver cabinets through warehouses, backstage corridors, or rapid event loading. To protect the mechanical infrastructure from heavy transport use, it boasts a retractable front rigging layout. Furthermore, standard IP55-rated weather protection, integrated corrosion-resistant hardware, and weather-resistant NL4 connectors with protective WP covers guarantee reliable outdoor performance in any environment.
High-Output Acoustic Precision

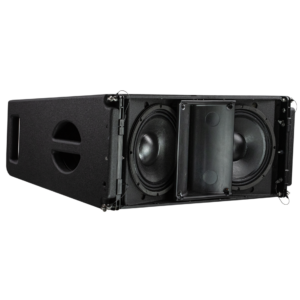

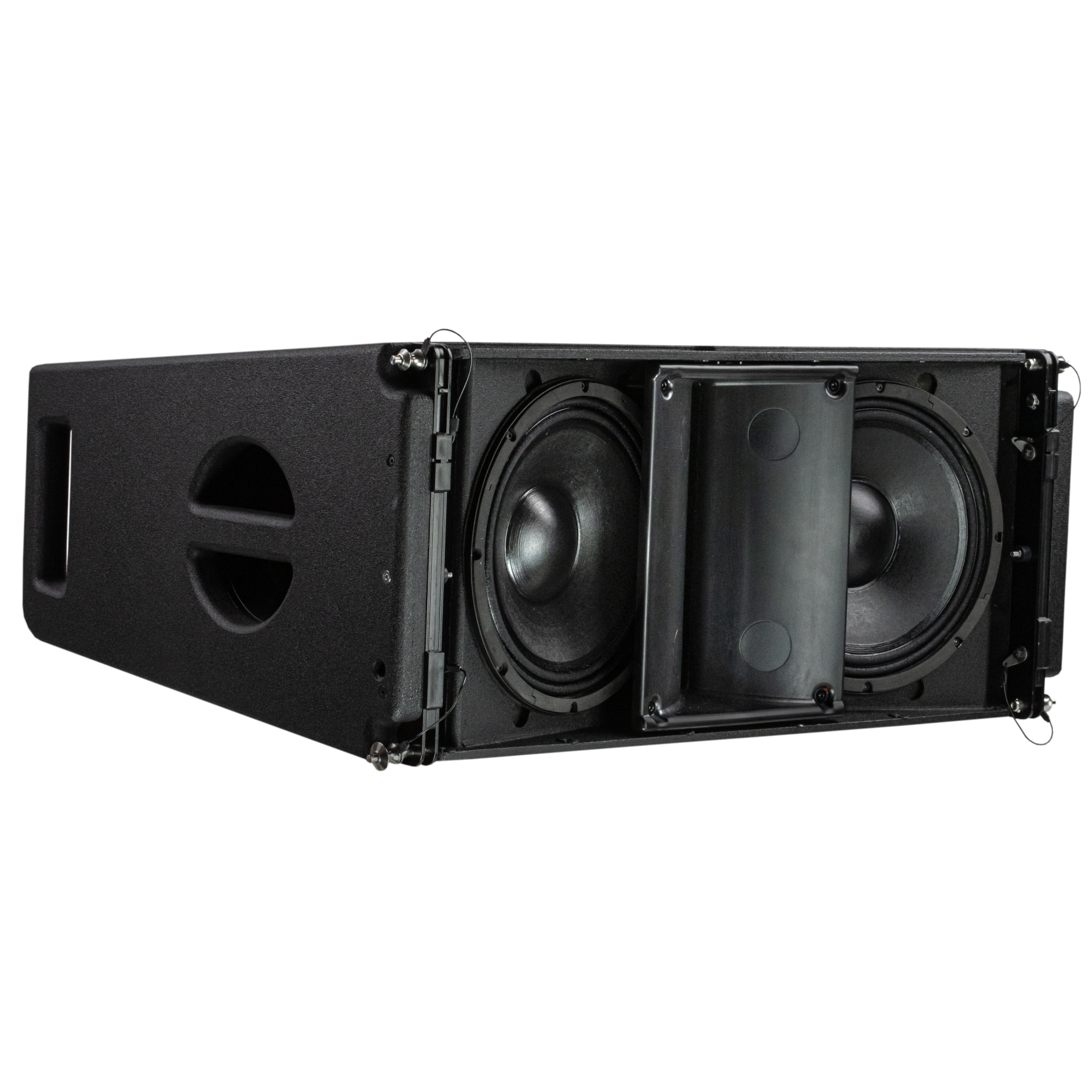

Despite its compact, low-profile footprint, there is zero sacrifice in power. The EAW KF210 houses a dense transducer configuration comprising dual 10-inch low-frequency drivers with 2.5-inch voice coils alongside a heavy-duty 1.4-inch exit high-frequency compression driver featuring a large 3-inch voice coil.
The symmetrically arranged woofers flank the high-frequency assembly to optimize horizontal directivity. Working in tandem with its internal loading design, the KF210 delivers an astonishing peak output of 141 dB while maintaining exceptional pattern control down to 400 Hz to clean up muddy or highly reflective acoustic spaces.
Proprietary EAW Technologies
-
Patented Isophasic Waveguide: This advanced high-frequency waveguide equalizes acoustic path lengths across the array interface. It ensures each cabinet combines seamlessly with the next to eliminate phase cancellation, sending a coherent wavefront with pristine, even sound to every seat in the venue.
-
Beamwidth Matched Crossovers: EAW engineers utilize carefully optimized acoustic crossover points to eliminate traditional polar irregularities through the mid-to-high transition zone, guaranteeing uniform horizontal coverage across a wide 90° arc.
-

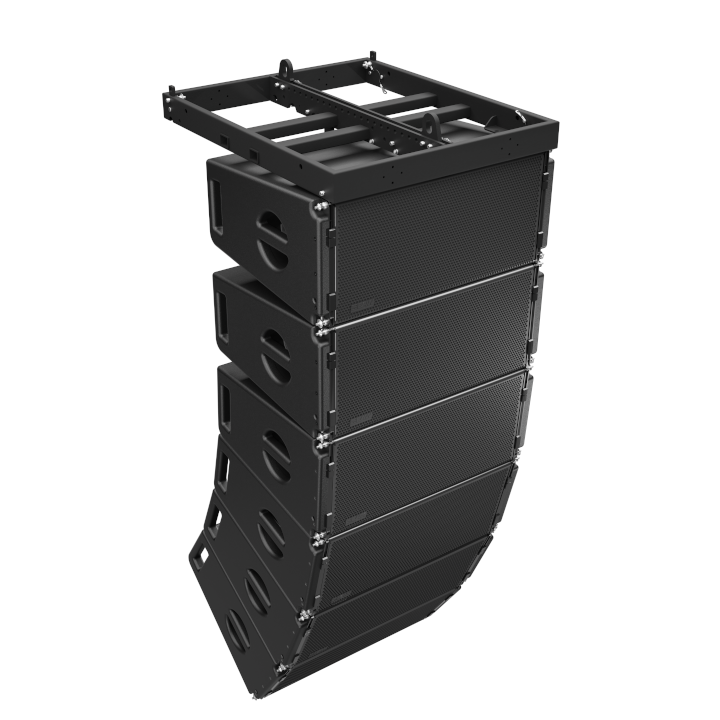

Advanced Three-Point Rigging: This innovative rigging system allows splay angles to be completely preset while the cabinets rest safely on the transport cart. As the array is lifted, the cabinets automatically splay into their exact calculated positions before locking firmly into place with a standard quick-release pin.
-
EAW Focusing™ & DynO™: Integrated through external digital signal processing or UXA Series amplifiers, these algorithms perfect the loudspeaker’s impulse response in the time domain. DynO™ dynamic optimization actively tracks the input spectrum to maximize fidelity and headroom at stadium volumes without distortion or sonic degradation.
For over 40 years, EAW have pioneered sound system technology in the live and installed sound markets. Providing high quality products for a wide range of applications. EAW is an American based company that was founded in 1978. A detailed company history with its legacy can be found on their website at this link: EAW History. They have a dedicated team of industry professionals, passionate about providing professional loudspeakers and sound systems.
