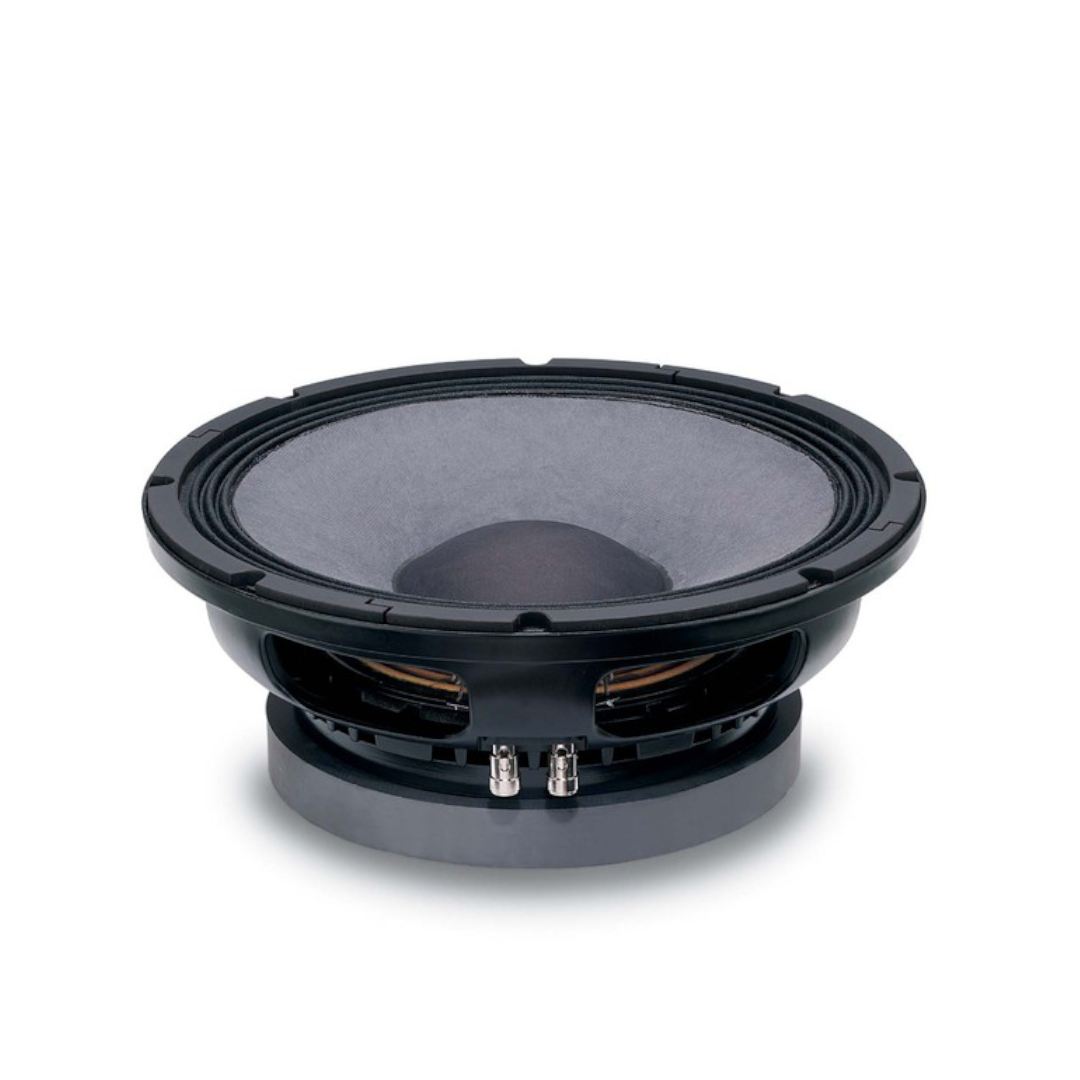

18 Sound 12LW1400 – Flagship Extended Low Frequency 12-Inch Driver with DSS and DDR Technology Combined
The 18 Sound 12LW1400 is an extended low frequency loudspeaker which sets a new industry standard in 12-inch (300 mm), 4-inch voice coil high performance transducers, already accomplished by the 15LW1400 and 18LW1400 respectively — directly confirming this driver’s position as the 12-inch member of 18 Sound’s flagship LW1400 family, the same platform the 12LW800 and 12LW801 both cite as their coil technology’s origin point.
The transducer has been designed for subwoofer or low frequency component usage in multi-way systems where considerable amounts of power and low distortion are needed. The 18 Sound 12LW1400 is ideally suited for very high loading cabinets, such as bandpass, horn-loaded, or compact reflex configurations. In its reflex configuration, it can be used in extremely compact enclosures (30–60 litres), making it the ideal choice for touring applications, sound reinforcement, or fixed installations, including indoor and outdoor concert reinforcement systems.
Maximum strength, smooth response, and high displacement piston motion are obtained using Double Silicon Spider technology (DSS) and a large excursion surround. Double Demodulation Rings (DDR) technology dramatically reduces the intermodulation and harmonic distortion whilst improving the transient response — the 18 Sound 12LW1400 is the only 12-inch driver we’ve documented combining both DSS suspension technology and DDR distortion reduction simultaneously, confirming its position as 18 Sound’s most comprehensively engineered 12-inch subwoofer platform.
At 900 W AES / 1400 W continuous program power handling and 10.9 kg — the heaviest 12-inch driver we’ve documented, exceeding even the ferrite 12MB1000’s 9.6 kg — the 18 Sound 12LW1400 delivers genuinely extreme specifications across the board. 18 Sound now lists the neodymium carbon-fibre 12NLW9300 as the alternative/current model.
Design and Construction of the 18 Sound 12LW1400
A special formulation cone material has been used to enable the 18 Sound 12LW1400 to withstand high loading and high power peaks. The suspension system has been designed to give symmetric large-signal behaviour across the whole working range, providing low harmonic distortion at different excitation levels — the DSS Double Silicon Spider technology’s characteristic contribution, here combined with DDR for a two-pronged approach to distortion control addressing both suspension and motor nonlinearities simultaneously.
An inside-outside aluminium voice coil, based on Interleaved Sandwich Voice Coil (ISV), provides high levels of thermal stability and durability. The ISV technology is based on a high-strength fibreglass former with half the coil wound on the outside and half on the inside, ensuring uniform thermal dissipation on both sides. It is bonded together using unique high-temperature resin adhesive to achieve a balanced and solid linear motor unit.
Double Demodulation Rings (DDR) technology dramatically reduces the intermodulation and harmonic distortion whilst improving the transient response. The top plate and back plate design have been optimised for cone excursion and maximum symmetric force factor by the use of in-house FEA Magnetic simulation software — the 20.0 Tm force factor driving a substantial 88 g of moving mass produces 96 dB sensitivity and the 0.30 Qts / 140 Hz EBP alignment, an EBP figure notably lower than most other 18 Sound 12-inch drivers we’ve documented, reflecting the driver’s genuinely large moving mass relative to its motor force.
Furthermore, excellent heat dissipation has been achieved by the special basket design which incorporates air channels between the basket and magnetic top plate.
The 18 Sound 12LW1400’s exclusive cone treatment improves pulp strength and gives water-repellent properties to both sides of the cone — treating both faces of the cone rather than just the front-facing surface, a more thorough approach than found on several other driver descriptions. In addition, the special coating of both the top and back plates makes them far more resistant to the corrosive effects of salts and oxidisation than standard zinc-coated treatment — a direct comparative claim against conventional zinc coating rather than the more general “other treatments” language used elsewhere.
The straight cone profile, rather than the curvilinear or ribbed profiles found on the smaller LW-series drivers, is a distinct construction choice for this flagship platform. The triple roll surround supports the substantial 8.25 mm Xmax — the highest Xmax of any conventional (non-extreme-long-throw) 12-inch driver we’ve documented.
At 10.9 kg, 315 mm overall diameter, 282 mm baffle cutout, and 141 mm depth, the 18 Sound 12LW1400 carries the substantial mass its 100 mm coil, dual DSS/DDR technology stack, and reinforced cone construction demand.
Performance and Applications for the 18 Sound 12LW1400
The 18 Sound 12LW1400 delivers 96 dB sensitivity across a 51 Hz – 4000 Hz bandwidth. The 900 W AES / 1400 W continuous program power handling is among the highest we’ve documented for a ferrite 12-inch driver, approached only by the neodymium 12NLW9410’s 1000 W AES / 2000 W program figures.
18 Sound recommends a 50-litre (1.77 ft³) vented enclosure tuned to 47 Hz, with the driver capable of extremely compact enclosures ranging from 30 to 60 litres — the ideal choice for touring applications, sound reinforcement, or fixed installations, including indoor and outdoor concert reinforcement systems.
The 8.25 mm Xmax with the 88 g moving mass and 900 W AES power handling combine for substantial volume displacement and sustained high-power capability from a compact cabinet footprint — the combination of DSS suspension control and DDR motor distortion reduction ensures this substantial power and displacement translate to clean, low-distortion output rather than the increasing coloration that less sophisticated 12-inch subwoofer drivers can exhibit as they approach their limits.
For touring subwoofer applications, high-loading bandpass and horn-loaded cabinets, and both indoor and outdoor concert reinforcement systems, the 18 Sound 12LW1400 represents 18 Sound’s most complete flagship engineering applied to the 12-inch subwoofer format — the direct lineage to the 15LW1400 and 18LW1400 confirming this driver was designed as part of a coordinated flagship family spanning three diameters rather than as a standalone product.
The comparison to the neodymium 12NLW9300 that 18 Sound now recommends as the current alternative shows the direction the platform has evolved: the 12NLW9300 trades the DSS/DDR ferrite combination for a neodymium motor, carbon fibre reinforced cone, and a large aluminium heatsink with multi-cell air diffractor cooling — different specific technologies, but continuing the same flagship 12-inch subwoofer mission the 18 Sound 12LW1400 established.
Conclusion – 18 Sound 12LW1400 Subwoofer Driver
The 18 Sound 12LW1400 is 18 Sound’s flagship ferrite 12-inch subwoofer platform, sharing its 100 mm coil technology and industry-standard-setting design philosophy directly with the 15LW1400 and 18LW1400. As the only 12-inch driver we’ve documented combining both DSS suspension technology and DDR distortion reduction simultaneously, the 18 Sound 12LW1400 delivers 900 W AES / 1400 W continuous program power handling, 8.25 mm Xmax, and genuinely comprehensive distortion control from suspension and motor engineering working together.
At 10.9 kg, this is the heaviest 12-inch driver in 18 Sound’s catalogue — the direct cost of the 100 mm coil, dual distortion-reduction technologies, and reinforced construction throughout. 18 Sound now lists the neodymium 12NLW9300 as the current alternative, continuing this flagship mission on a lighter, differently-engineered platform.
For touring subwoofers, high-loading bandpass and horn-loaded cabinets, and concert reinforcement systems demanding the most comprehensively engineered ferrite 12-inch subwoofer 18 Sound has built, the 18 Sound 12LW1400 remains the reference point against which the company’s subsequent 12-inch subwoofer platforms have been measured.
