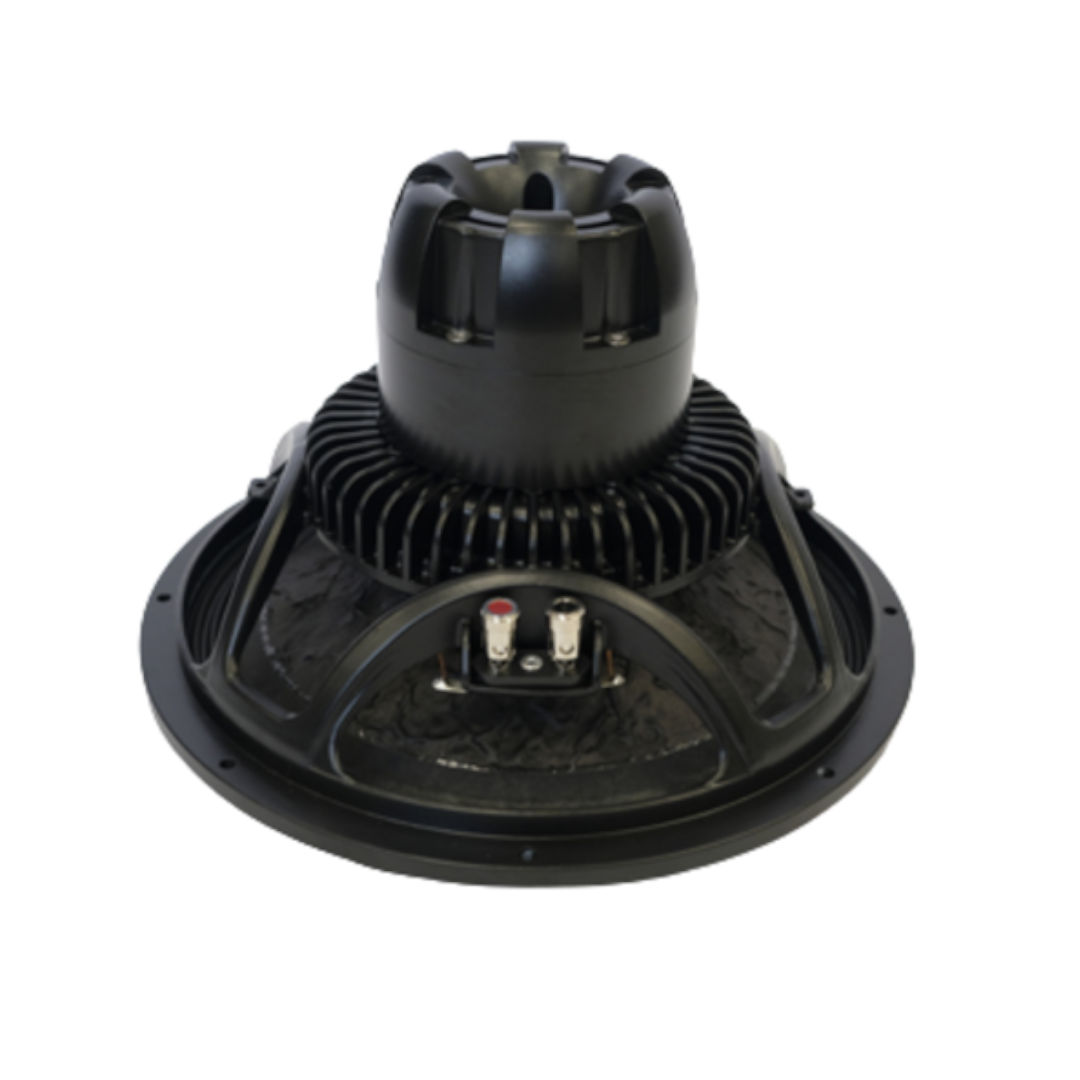

18 Sound 12NTLW3500 – LF Driver

18 Sound 12NTLW3500 – Flagship 12-Inch Neodymium Woofer with Dual Gap Motor, 2× SDR, and 900 Watt Power Handling

The 18 Sound 12NTLW3500 represents the state of the art of 18 Sound’s component technology for highest-quality applications. With an 88 mm dual voice coil operating in a 13.0 mm Dual Gap magnetic structure, two Single Demodulating Rings — one dedicated to each gap — 900 W AES / 1800 W continuous program power handling, 19.5 Tm force factor, and a weight of just 4.7 kg, the 18 Sound 12NTLW3500 delivers the highest sustained power handling and the strongest motor of any 12-inch driver in 18 Sound’s range, working perfectly both as a woofer and as a mid-bass.

The Dual Gap technology comes directly from the Tetracoil motor structure, applying its thermal and Bl-symmetry benefits to a wider frequency band. Optimised thermal conductivity allows the driver’s exceptional power handling — up to 1800 watts continuous program — while the extremely balanced Bl shape combined with the ultra-linear suspension maximises SPL while keeping the lowest intermodulation distortion in the market. 18 Sound describes the result as the amazing capability of reproducing a deep and full low end together with perfect clarity in the mids.

The 2× SDR configuration — two Single Demodulating Rings, one per magnetic gap — is the specific engineering refinement that pushes the 18 Sound 12NTLW3500 beyond the Dual Gap architecture’s inherent Bl symmetry. Each ring independently cancels flux modulations in its respective gap, providing distortion reduction across the full excursion range with a thoroughness that no single-ring or ringless Dual Gap driver in 18 Sound’s range can match — the same dual-ring approach found on the flagship 10NTLW3500, here scaled to 12 inches.

At just 4.7 kg — extraordinarily light for a driver handling 900 W AES — with 8.3 mm Xmax and 4/8/16 Ω availability, 18 Sound positions the 18 Sound 12NTLW3500 as the perfect component for the highest-quality line arrays and two-way systems.

Design and Construction of the 18 Sound 12NTLW3500

The 18 Sound 12NTLW3500 uses an 88 mm (3.5-inch) dual voice coil with a 22 mm winding depth operating in a 13.0 mm Dual Gap magnetic structure — the deepest gap of any 88 mm-coil driver in 18 Sound’s 12-inch range, exceeding the subwoofer-tuned 12NTLX3500’s 12.5 mm gap and providing maximum space for the winding to generate force across the full excursion range.

The Dual Gap architecture doubles the coil surface exposed to the magnetic field, producing thermal dissipation twice as efficient as single-gap designs and the Bl symmetry that maintains consistent force output through the 8.3 mm Xmax. The 19.5 Tm force factor is the highest of any 12-inch driver in 18 Sound’s range — exceeding the traditional single-gap 12NW350’s 19.2 Tm and the subwoofer-tuned 12NTLX3500’s 17.1 Tm.

The 2× SDR system places one dedicated demodulating ring in each of the two magnetic gaps. Each ring independently cancels the flux modulations that occur as the voice coil moves through its respective gap during excursion. This is the same dual-ring refinement 18 Sound applied to the flagship 10NTLW3500 — adding ring-based distortion reduction on top of the Dual Gap motor’s inherent Bl symmetry, producing the most comprehensive distortion management of any 12-inch driver in the catalogue.

The dual-ring system also drives inductance down further. The 0.46 mH Le is dramatically lower than the traditional single-gap 12NW350’s 0.85 mH and lower even than the subwoofer-tuned 12NTLX3500’s 0.52 mH — confirming that the 2× SDR configuration produces the flattest impedance curve of any 12-inch driver 18 Sound makes, despite sharing the same 88 mm coil diameter as both alternatives.

The 80 g moving mass driven by the 19.5 Tm force factor produces 97 dB sensitivity and 1.8% reference efficiency — sitting between the higher-sensitivity single-gap 12NW350 (98 dB) and the deeper-tuned subwoofer 12NTLX3500 (95.5 dB), reflecting the 18 Sound 12NTLW3500’s design intent as a balanced woofer/mid-bass component rather than a specialist at either extreme.

The curvilinear cone with triple roll suspension provides ultra-linear excursion control through the 8.3 mm Xmax — the same Xmax figure as the traditional single-gap 12NW350, but achieved here with the Dual Gap motor’s superior distortion characteristics and lower inductance.

At 4.7 kg — 400 g lighter than the single-gap 12NW350 and 100 g heavier than the subwoofer-tuned 12NTLX3500 — the 18 Sound 12NTLW3500 achieves the lowest weight-to-power ratio of any 12-inch driver in the range. The 193 mm depth matches the 12NTLX3500’s 194 mm almost exactly, both substantially deeper than the traditional single-gap 12NW350’s 150 mm — the Dual Gap motor structure’s added complexity requires this additional mounting depth regardless of tuning intent.

Performance and Applications for the 18 Sound 12NTLW3500

The 18 Sound 12NTLW3500 delivers 97 dB sensitivity across a 50 Hz – 3000 Hz bandwidth. The 900 W AES / 1800 W continuous program power handling is the highest of any 12-inch driver in 18 Sound’s range — exceeding the traditional single-gap 12NW350’s 800 W AES / 1600 W and the subwoofer-tuned 12NTLX3500’s 600 W AES / 1200 W.

18 Sound recommends a 50-litre (1.77 ft³) vented enclosure tuned to 58 Hz — a compact cabinet volume that positions the driver for punchy, controlled output rather than the deep sub-bass extension the 12NTLX3500 targets with its larger 60-litre, 45 Hz recommendation.

The dual-ring distortion advantage compounds the Dual Gap motor’s inherent Bl symmetry, producing what 18 Sound describes as the lowest intermodulation distortion in the market. At high power — where conventional single-gap or single-ring motors generate increasing distortion as excursion approaches maximum — the 2× SDR system keeps the output clean across the full 8.3 mm Xmax, maintaining the deep, full low end and perfect mid clarity that 18 Sound highlights as the driver’s defining characteristic.

The 4, 8, and 16 Ω impedance availability is the widest of any 12-inch driver we’ve covered in 18 Sound’s range — the 4 Ω variant maximises power transfer for single-driver applications, while the 16 Ω enables the clean multi-driver parallel and series-parallel wiring that line array configurations demand.

The comparison across 18 Sound’s 88 mm-coil 12-inch family shows three distinct engineering philosophies converging on the same coil platform. The traditional single-gap 12NW350 delivers the highest sensitivity (98 dB) from conventional single-gap architecture. The subwoofer-tuned 12NTLX3500 delivers the deepest bass extension (39 Hz Fs) for dedicated low-frequency reproduction. The 18 Sound 12NTLW3500 delivers the highest power handling (900 W AES), the strongest motor (19.5 Tm Bl), the lowest inductance (0.46 mH), and the widest impedance range — the balanced flagship that works perfectly as both woofer and mid-bass, exactly as 18 Sound intends.

Despite representing the state of the art in 18 Sound’s own words, the company lists the 12W750 — a considerably simpler ferrite driver — as the current alternative model, an unusual pairing that likely reflects catalogue positioning or regional availability considerations rather than a genuine technical successor relationship.

Conclusion – 18 Sound 12NTLW3500 Woofer

The 18 Sound 12NTLW3500 is, in 18 Sound’s own description, the state of the art of their component technology for highest-quality applications. The Dual Gap motor with 2× SDR — one demodulating ring per gap — delivers the highest power handling (900 W AES / 1800 W program), the strongest motor (19.5 Tm Bl), and the lowest inductance (0.46 mH) of any 12-inch driver in the range, all from a chassis weighing just 4.7 kg.

The extremely balanced Bl shape and ultra-linear suspension combine to maximise SPL while maintaining what 18 Sound describes as the lowest intermodulation distortion in the market — the engineering that allows the 18 Sound 12NTLW3500 to reproduce deep, full low end together with perfect mid-range clarity from a single 12-inch transducer.

For the highest-quality line arrays and two-way systems, where maximum sustained power handling, the strongest available motor, and the lowest distortion define the specification, the 18 Sound 12NTLW3500 is the 12-inch driver 18 Sound built to be the best they make. Nine hundred watts, 19.5 Tesla-metres, dual SDR, 4.7 kilograms — the flagship of the 12-inch range.
