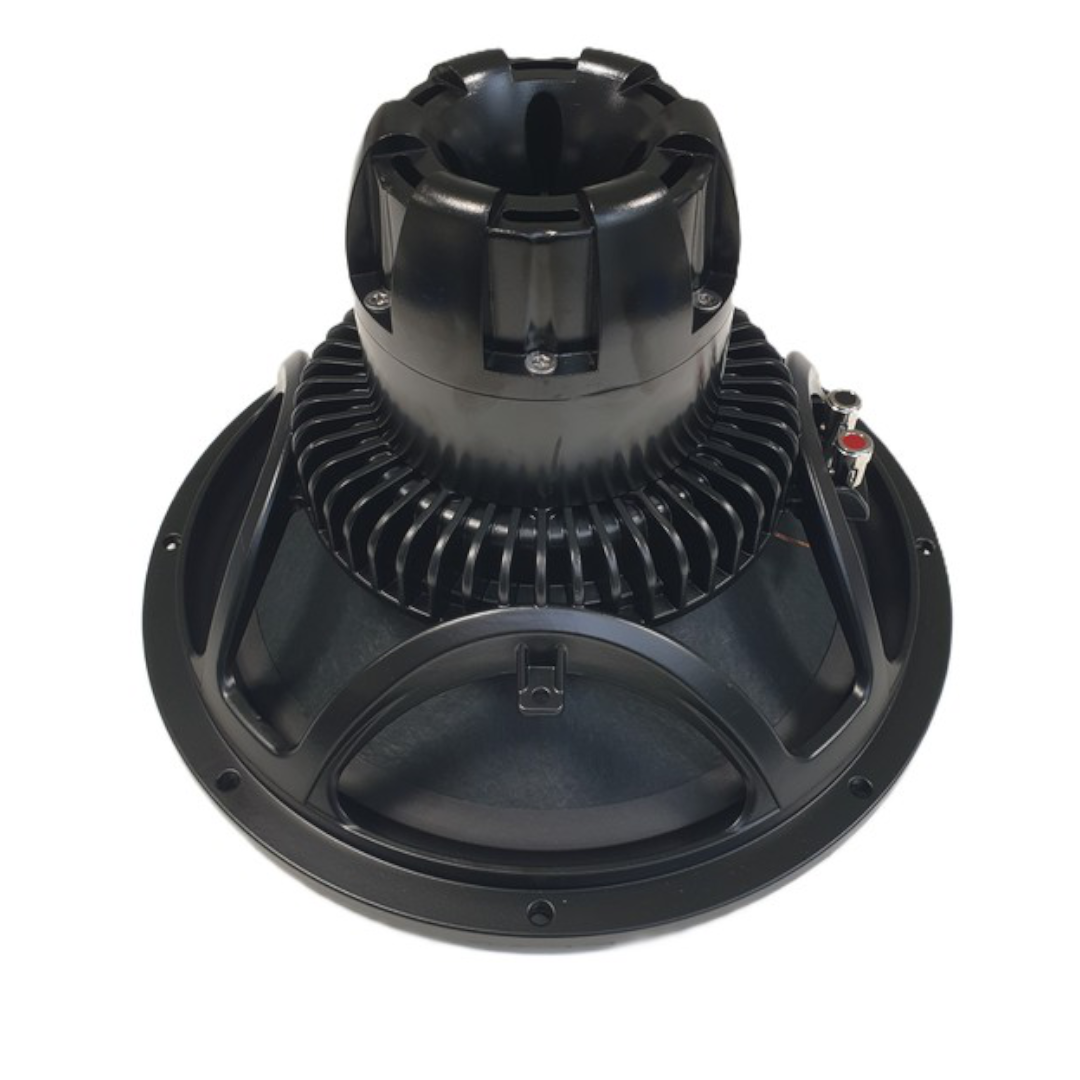

18 Sound 12NTLX3500 – Compact Subwoofer 12-Inch Neodymium Woofer with Dual Gap Motor and 40 Hz Bass Extension
The 18 Sound 12NTLX3500 represents 18 Sound’s latest Dual Gap technology applied to compact subwoofer applications — an 88 mm dual voice coil operating in a 12.5 mm dual magnetic gap, purpose-built for high-quality, low-tuning, compact subwoofers. With 40 Hz – 4000 Hz bandwidth, a 39 Hz Fs that is the lowest of any 18 Sound 12-inch driver, 1200 W continuous program power handling, and a weight of just 4.6 kg, the 18 Sound 12NTLX3500 delivers genuine sub-bass extension from a 12-inch neodymium platform light enough for the most demanding portable and touring subwoofer applications.
The Dual Gap motor structure maximises its benefits specifically in terms of thermal dissipation and Bl symmetry — the same fundamental technology found across 18 Sound’s DG family, here tuned with a 12.5 mm gap and 22 mm winding depth for maximum linear excursion and the deepest bass extension of any 88 mm-coil driver in the 12-inch range. 18 Sound states directly that this makes the 18 Sound 12NTLX3500 the perfect component for high-quality, low-tuning, compact subwoofers.
The 39 Hz Fs is the specification that separates the 18 Sound 12NTLX3500 from every other 12-inch driver we’ve covered — 15 Hz below the 12NW530’s 55 Hz and comfortably into genuine sub-bass territory. The 40 Hz lower frequency limit confirms real low-end extension from a compact 12-inch format, supported by 7.9 mm Xmax and 9.2 mm Xvar — substantial mechanical headroom for high-excursion sub-bass reproduction.
18 Sound describes the perfect balance reached between the motor and the ultra-linear suspension as allowing both very high excursion and extreme precision in the mid band, with the lowest intermodulation distortion in the professional market — combined with the driver’s extreme low weight, making it, in 18 Sound’s own words, the perfect component for the highest-quality compact subwoofers.
Design and Construction of the 18 Sound 12NTLX3500
The 18 Sound 12NTLX3500 uses an 88 mm (3.46-inch) aluminium dual voice coil with a 22 mm winding depth operating in a 12.5 mm dual magnetic gap — the widest gap of any 88 mm-coil driver in 18 Sound’s range, wider even than the 10NTLW3500’s 12.5 mm gap at matching depth, but tuned here specifically for subwoofer displacement rather than mid-bass bandwidth.
The Dual Gap architecture doubles the coil surface exposed to the magnetic field at any given position, producing thermal dissipation that is twice as efficient as single-gap designs and the Bl symmetry that maintains consistent force output across the full 7.9 mm excursion range. Dual gap motors linearise inductance as a direct consequence of this symmetrical structure — the 0.52 mH Le is dramatically lower than the traditional single-gap 12NW350’s 0.85 mH despite the shared 88 mm coil diameter, confirming the DG architecture’s inductance advantage even before any demodulating ring is considered.
The 17.1 Tm force factor driving 86 g of moving mass produces 95.5 dB sensitivity and 1.2% reference efficiency. The relatively modest sensitivity and efficiency figures reflect the driver’s design priority — this is not an output-per-watt optimised mid-bass driver but a displacement-optimised subwoofer transducer, where the heavier 86 g moving mass and deep 22 mm winding trade sensitivity for the 7.9 mm Xmax and 39 Hz Fs that define genuine sub-bass performance.
The curvilinear cone with weather-protected treatment provides outdoor durability. The single roll rubber surround — rather than the triple roll polycotton found on the 12NW350 — is the suspension choice suited to the driver’s extended excursion range, providing the ultra-linear compliance that 18 Sound credits for allowing both very high excursion and extreme precision simultaneously.
At 4.6 kg, the 18 Sound 12NTLX3500 achieves what 18 Sound calls extreme low weight for this performance class — lighter than the ferrite 12-inch drivers by a wide margin despite the substantial 88 mm coil and dual-gap motor structure, confirming neodymium’s efficiency advantage at scale.
The 194 mm depth is the deepest of any 18 Sound 12-inch driver we’ve covered — 44 mm deeper than the 12NW350’s 150 mm and 73 mm deeper than the 12W750’s 121 mm. The dual-gap motor’s more complex magnetic structure, combined with the deep 22 mm winding needed for maximum excursion, requires this additional depth behind the baffle. Cabinet designers specifying the 18 Sound 12NTLX3500 need to account for this depth requirement.
At 310 mm overall diameter, 283 mm baffle cutout, and 15 mm flange, the 18 Sound 12NTLX3500 matches the standard 18 Sound 12-inch mounting footprint on every dimension except depth.
Performance and Applications for the 18 Sound 12NTLX3500
The 18 Sound 12NTLX3500 delivers 95.5 dB sensitivity across a 40 Hz – 4000 Hz bandwidth. The 40 Hz lower frequency limit is the deepest of any 18 Sound 12-inch driver in the range — genuine sub-bass extension that positions this driver specifically for dedicated subwoofer duty rather than two-way or mid-bass applications.
The 600 W AES / 1200 W continuous program power handling, combined with the 39 Hz Fs and 0.33 Qts, defines a driver built for low-tuning vented subwoofer enclosures. 18 Sound recommends a 60-litre (2.12 ft³) vented enclosure tuned to 45 Hz — a tuning frequency that targets genuine deep-bass extension rather than the punchy mid-bass alignment of drivers like the 12NW530.
The 7.9 mm Xmax with 9.2 mm Xvar produces exceptional volume displacement for a 12-inch driver — combined with the 531 cm² radiating area, the 18 Sound 12NTLX3500 moves substantial air per cycle, supporting the deep, extended bass output that compact subwoofer applications demand.
The lowest intermodulation distortion in the professional market that 18 Sound claims is the direct consequence of the Dual Gap motor’s Bl symmetry combined with the ultra-linear suspension design — at high excursion levels where conventional motors generate increasing distortion as the coil moves asymmetrically through the gap, the 18 Sound 12NTLX3500’s balanced dual-gap structure maintains consistent force output, keeping the bass clean and controlled even at maximum displacement.
The comparison to the 12NW350 (and the 12NTLW3500 it references as an alternative) illustrates two different applications of the 88 mm coil platform. The 12NW350 uses a traditional single-gap motor tuned for two-way and line array mid-bass duty, with 98 dB sensitivity, 3500 Hz bandwidth, and 50 Hz lower limit. The 18 Sound 12NTLX3500 uses the true Dual Gap architecture tuned specifically for subwoofer duty, trading sensitivity and bandwidth for a 39 Hz Fs, 40 Hz bass extension, lower inductance (0.52 vs 0.85 mH), and 400 W more continuous program power handling (1200 vs 1600 W — actually the 12NW350 has more at 1600W, so the 18 Sound 12NTLX3500 trades some power ceiling for bass depth).
For compact subwoofer cabinets where low tuning and genuine 40 Hz extension are the priority, the 18 Sound 12NTLX3500’s Dual Gap architecture delivers 18 Sound’s stated goal directly: the perfect component for the highest-quality compact subwoofers.
Conclusion – 18 Sound 12NTLX3500 Subwoofer Driver
The 18 Sound 12NTLX3500 is 18 Sound’s dedicated Dual Gap subwoofer solution in the 12-inch format — an 88 mm coil in a 12.5 mm dual gap, tuned specifically for low-frequency extension rather than mid-bass bandwidth. The 39 Hz Fs and 40 Hz lower frequency limit are unmatched by any other 18 Sound 12-inch driver we’ve covered, and the 0.52 mH inductance confirms the Dual Gap architecture’s inherent linearisation advantage.
At 4.6 kg with 1200 W continuous program power handling, the 18 Sound 12NTLX3500 combines extreme low weight with the thermal dissipation and Bl symmetry benefits that define 18 Sound’s Dual Gap technology — the lowest intermodulation distortion in the professional market, in 18 Sound’s own characterisation, at the excursion levels that dedicated subwoofer reproduction demands.
For compact subwoofer cabinets, touring bass systems, and any application where genuine 40 Hz bass extension from a lightweight 12-inch neodymium driver is the requirement, the 18 Sound 12NTLX3500 is the Dual Gap component 18 Sound built specifically for the job. The 194 mm depth is the trade-off — cabinet designers need to plan for it — but for the low-tuning, high-quality compact subwoofer application this driver targets, nothing else in 18 Sound’s 12-inch range reaches as deep.
