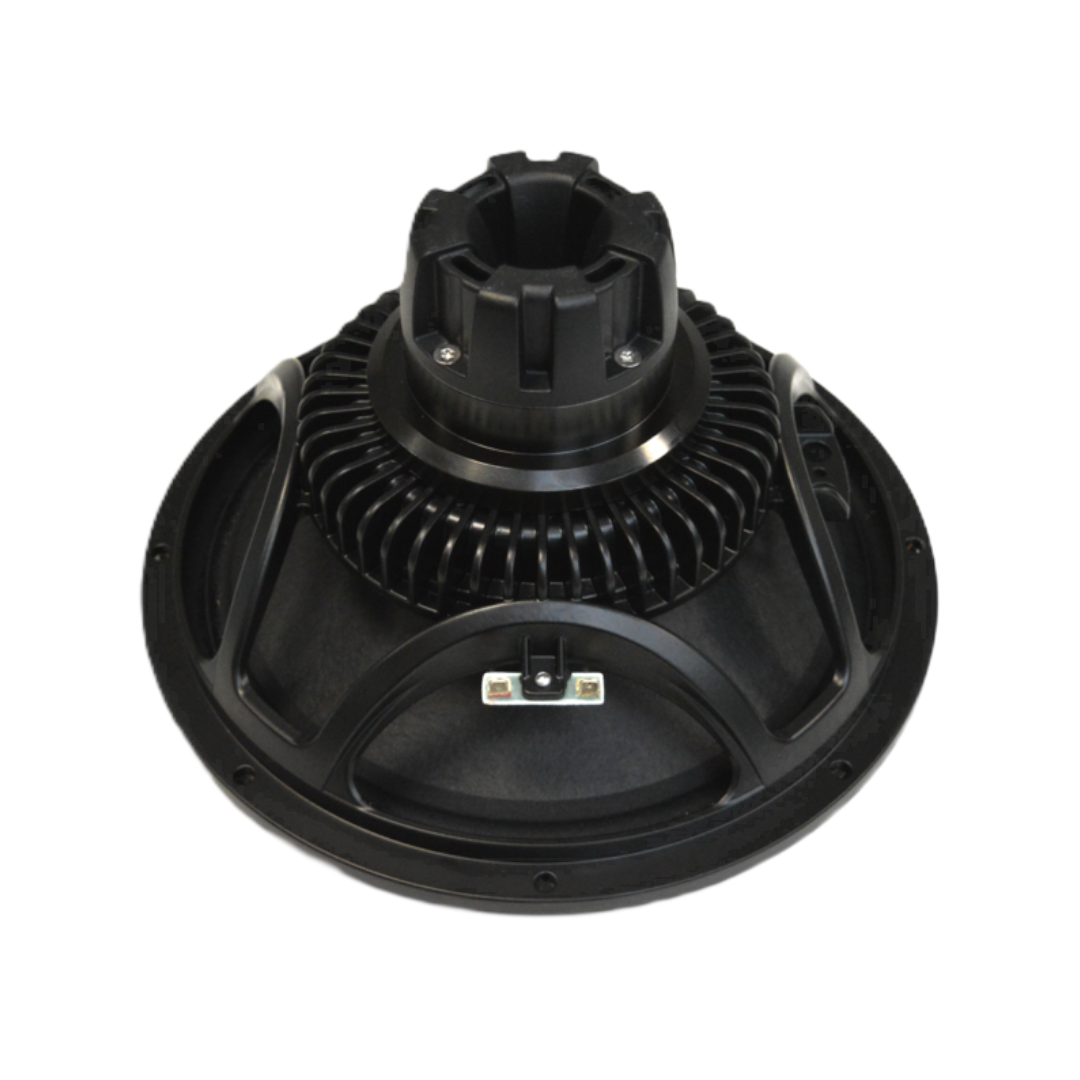

18 Sound 12NTLW2500 – LF Driver

18 Sound 12NTLW2500 – Lightest 12-Inch Dual Gap Neodymium Woofer with 98.5 dB Sensitivity and 2.4% Efficiency

The 18 Sound 12NTLW2500 completes 18 Sound’s Dual Gap family at 12 inches — the 64 mm coil platform that delivers the highest sensitivity, the highest efficiency, and the lightest weight of any 12-inch Dual Gap driver in the range. With 98.5 dB sensitivity, 2.4% reference efficiency, a 3.6 kg total weight, and 1000 W continuous program power handling that 18 Sound specifically notes puts the driver above the average performance of traditional 3-inch (75/88 mm) voice coil speakers, the 18 Sound 12NTLW2500 delivers the best power-to-weight ratio of any driver in 18 Sound’s 12-inch lineup.

18 Sound describes the 18 Sound 12NTLW2500 as the latest technology for high-quality, low-distortion applications — the brand new Neo Dual Gap motor that linearises inductance and minimises heating and power compression through the high coil surface, making heat exchange twice as efficient than with standard single-coil drivers. This is the same fundamental Dual Gap benefit found across the 10 and 12-inch families, here optimised at the 64 mm coil scale for maximum sensitivity and minimum weight rather than maximum absolute power.

The 3.6 kg weight is dramatically lighter than every other 12-inch Dual Gap driver we’ve covered — 1.1 kg lighter than the 88 mm-coil 12NTLW3500’s 4.7 kg and 1.0 kg lighter than the 12NTLX3500’s 4.6 kg. The perfect balance 18 Sound reached between the motor and the ultra-linear M-roll suspension allows both very high excursion and extreme precision in the mid band, with what the company describes as the lowest intermodulation distortion in the professional market.

At 3.6 kg with 98.5 dB sensitivity and 1000 W continuous program handling, 18 Sound positions the 18 Sound 12NTLW2500 as the perfect component for the highest-quality line arrays and two/three-way systems, available in 4, 8, and 16 Ω.

Design and Construction of the 18 Sound 12NTLW2500

The 18 Sound 12NTLW2500 uses a 64 mm (2.5-inch) dual voice coil with a 19.7 mm winding depth operating in a 9.0 mm Dual Gap magnetic structure — the smallest coil and shallowest gap of any Dual Gap driver in 18 Sound’s 12-inch range, matching the coil scale found on the 10-inch 10NTLW2500 platform but reworked for the 12-inch cone’s larger radiating area.

The Dual Gap architecture doubles the coil surface exposed to the magnetic field, producing thermal dissipation twice as efficient as single-gap designs. Combined with the 17.4 Tm force factor driving just 62 g of moving mass — the lightest moving assembly of any 18 Sound 12-inch driver we’ve covered — the 18 Sound 12NTLW2500 achieves 98.5 dB sensitivity and 2.4% reference efficiency, both the highest figures in the 12-inch range.

The Bl/Mms ratio of 0.281 Tm/g reflects a motor tuned for sensitivity and precision rather than the maximum raw force of the larger 88 mm-coil siblings. The 0.44 mH Le confirms the Dual Gap architecture’s inherent inductance linearisation — comparable to the 12NTLW3500’s 2×SDR-assisted 0.46 mH despite carrying no demodulating rings at all, a testament to how effectively the Dual Gap structure alone controls inductance at this coil scale.

The ultra-linear M-roll suspension is engineered specifically to balance high excursion capability with extreme mid-band precision — the 7.6 mm Xmax with 8.0 mm Xvar provides substantial displacement from the lighter moving assembly, while the suspension’s linearity keeps the driver precise through the mid-band frequencies where a woofer transitioning into mid-bass duty needs the most control.

At 3.6 kg, 310 mm overall diameter, 283 mm baffle cutout, and 175 mm depth, the 18 Sound 12NTLW2500 sits between the traditional single-gap 12NW350’s 150 mm depth and the deeper 88 mm-coil Dual Gap siblings’ 193–194 mm — the smaller 64 mm coil requiring less motor depth than the larger coil platforms while still carrying the full Dual Gap architecture.

Performance and Applications for the 18 Sound 12NTLW2500

The 18 Sound 12NTLW2500 delivers 98.5 dB sensitivity across a 55 Hz – 4500 Hz bandwidth. The 98.5 dB is 1.5 dB above the 12NTLW3500’s 97 dB and 3 dB above the 12NTLX3500’s 95.5 dB — the lighter 62 g moving mass extracts more output per watt than either of the heavier 88 mm-coil Dual Gap siblings.

The 1000 W continuous program power handling is substantial for a 64 mm coil — 18 Sound specifically highlights that this figure puts the 18 Sound 12NTLW2500 above the average performance of traditional 3-inch voice coil speakers, a direct claim that the Dual Gap’s doubled thermal dissipation lets a smaller coil outperform larger conventional coils on sustained power capability.

18 Sound recommends a 35-litre (1.24 ft³) vented enclosure tuned to 65 Hz — the most compact recommended enclosure of any 12-inch Dual Gap driver, reflecting the 0.38 Qts alignment and the lighter, more motor-controlled moving assembly.

The 4500 Hz upper bandwidth is wider than both the 12NTLW3500’s 3000 Hz and the 12NTLX3500’s 4000 Hz — confirming the 18 Sound 12NTLW2500’s design intent as the driver best suited to genuine two/three-way mid-bass duty, where the extended upper-frequency reach provides more overlap with a crossed-over compression driver or midrange section.

The comparison across 18 Sound’s complete 12-inch Dual Gap family now shows a clear three-tier structure. The 18 Sound 12NTLW2500 (64 mm coil, 3.6 kg) delivers the highest sensitivity, highest efficiency, lightest weight, and widest bandwidth — the precision and efficiency specialist. The 12NTLW3500 (88 mm coil, 4.7 kg, 2× SDR) delivers the highest power handling and strongest motor — the maximum-output flagship. The 12NTLX3500 (88 mm coil, 4.6 kg) delivers the deepest bass extension — the dedicated subwoofer specialist. All three share Dual Gap DNA but serve distinctly different roles.

For line arrays where per-element weight and sensitivity compound across many drivers, the 18 Sound 12NTLW2500’s 3.6 kg and 98.5 dB combination delivers the best power-to-weight ratio in 18 Sound’s entire 12-inch range — exactly the “perfect power/weight ratio” 18 Sound claims for the driver.

Conclusion – 18 Sound 12NTLW2500 Woofer

The 18 Sound 12NTLW2500 completes 18 Sound’s Dual Gap family at 12 inches with the lightest, most efficient, highest-sensitivity member of the group. The 64 mm coil’s 98.5 dB sensitivity and 2.4% reference efficiency exceed both 88 mm-coil Dual Gap siblings, while the 3.6 kg weight undercuts them by over a kilogram — all while sustaining 1000 W continuous program power handling that 18 Sound specifically positions as beating traditional larger-coil designs.

The Dual Gap motor’s inherent inductance linearisation (0.44 mH without any demodulating rings), combined with the ultra-linear M-roll suspension’s balance of high excursion and mid-band precision, delivers the lowest intermodulation distortion in the professional market from the lightest package in 18 Sound’s 12-inch catalogue.

For line arrays and two/three-way systems where the perfect power-to-weight ratio defines the specification, the 18 Sound 12NTLW2500 is the 12-inch Dual Gap driver that completes the family with the best balance of sensitivity, efficiency, and minimum weight. Ninety-eight point five dB, 2.4% efficiency, 3.6 kilograms — the lightest and most efficient 12-inch in the range.
