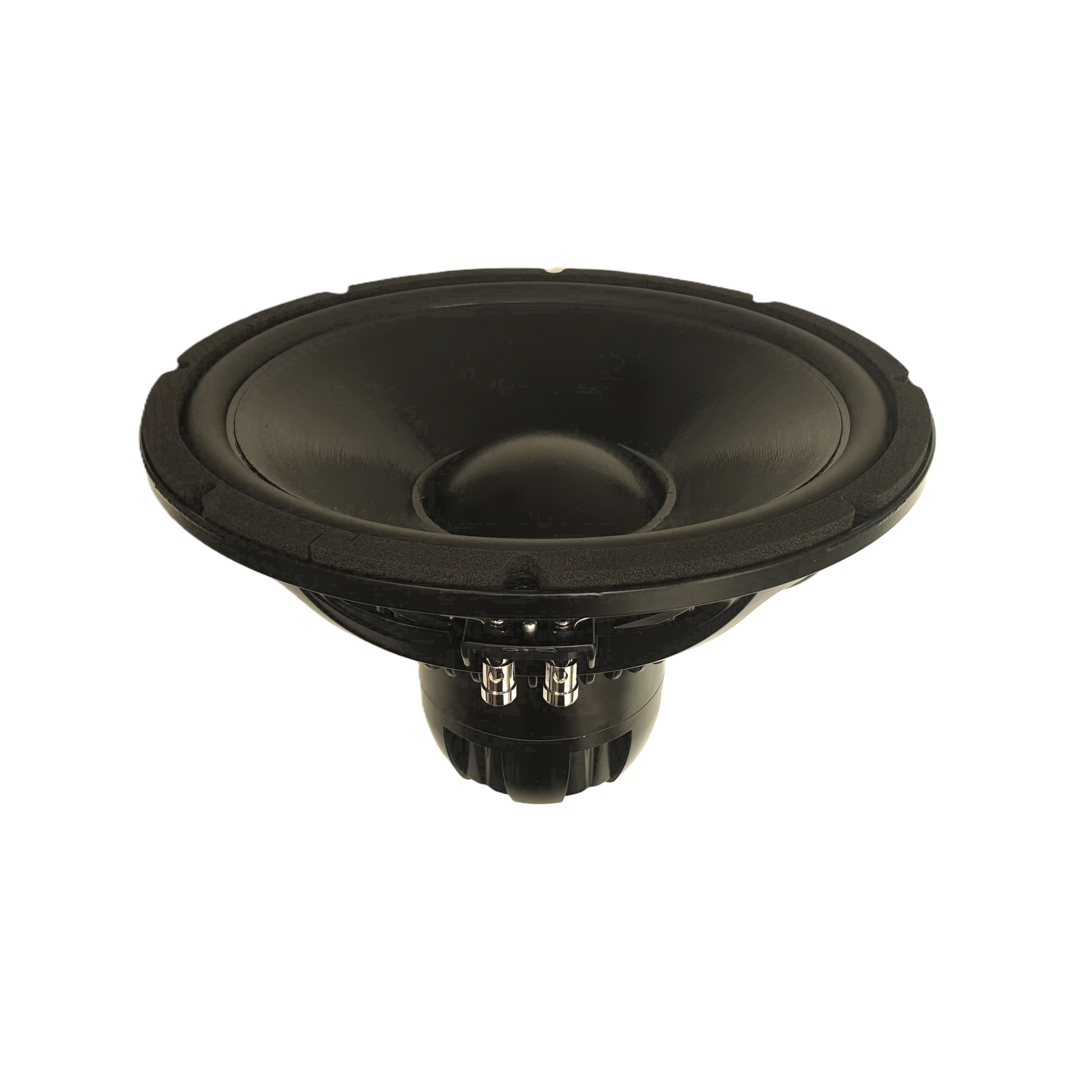

18 Sound 12NTLS3500 – High-Power Compact Subwoofer 12-Inch with Dual Gap Motor and 1500 Watt Program Handling
The 18 Sound 12NTLS3500 is the high-power sibling in 18 Sound’s Dual Gap subwoofer family — sharing the same 88 mm coil, 22 mm winding depth, and 12.5 mm dual magnetic gap as the 12NTLX3500, but tuned with a heavier 92 g moving mass and higher Qts for maximum power handling and enclosure flexibility rather than the lowest possible sensitivity trade-off. With 750 W AES / 1500 W continuous program power handling and a 41 Hz Fs matching the 12NTLX3500’s sub-bass extension almost exactly, the 18 Sound 12NTLS3500 represents 18 Sound’s latest technology for high-quality, low-distortion, compact subwoofer applications.
18 Sound describes the Dual Gap motor structure as maximising its benefits in terms of thermal dissipation and Bl symmetry, making the 18 Sound 12NTLS3500 the perfect component for high-quality, low-tuning, compact subwoofers. The same dual-gap principle found across the entire family — doubled coil surface exposed to the magnetic field for twice the thermal dissipation of single-coil drivers — here supports a genuinely substantial 1500 W continuous program rating, the highest of any sub-tuned 88 mm-coil driver in 18 Sound’s 12-inch range.
The 92 g moving mass is the heaviest of any 18 Sound 12-inch driver we’ve covered — even heavier than the 12NTLX3500’s 86 g — reflecting a motor and suspension combination tuned specifically for maximum power handling at the cost of some sensitivity. The Qts of 0.41 is notably higher than the 12NTLX3500’s 0.33, giving the 18 Sound 12NTLS3500 more enclosure design flexibility, including viability in sealed subwoofer designs where the higher Qts produces controlled, extended low-frequency response.
The perfect balance reached between the motor and ultra-linear suspension allows both very high excursion and extreme precision in the mid band, with the lowest intermodulation distortion in the professional market, according to 18 Sound. Combined with the driver’s extreme low weight of 4.7 kg, this makes the 18 Sound 12NTLS3500 the perfect component for the highest-quality compact subwoofers, per 18 Sound’s own positioning.
Design and Construction of the 18 Sound 12NTLS3500
The 18 Sound 12NTLS3500 uses an 88 mm (3.46-inch) aluminium dual voice coil with a 22 mm winding depth operating in a 12.5 mm dual magnetic gap — identical coil geometry to the 12NTLX3500, confirming these two drivers share the same fundamental motor platform tuned to different performance targets.
The Dual Gap architecture doubles the coil surface exposed to the magnetic field at any given position, producing thermal dissipation twice as efficient as single-gap designs. The 17.8 Tm force factor driving 92 g of moving mass produces 93.5 dB sensitivity and 1.0% reference efficiency — both lower than the 12NTLX3500’s 95.5 dB and 1.2%, the direct consequence of the heavier moving assembly this tuning requires.
The 0.55 mH Le is marginally higher than the 12NTLX3500’s 0.52 mH — the Dual Gap architecture’s inductance linearisation remains strongly effective even with the heavier coil assembly, producing an impedance curve far flatter than any traditional single-gap 12-inch driver in 18 Sound’s range.
The 95 Hz EBP is the lowest of any 12-inch driver we’ve covered — even lower than the 12NTLX3500’s already-low 111 Hz — confirming the 18 Sound 12NTLS3500 sits in genuinely flexible sealed/vented territory. Where most 18 Sound 12-inch drivers are firmly vented-oriented, this EBP figure means the 18 Sound 12NTLS3500 performs credibly in sealed enclosures as well, producing the smoother rolloff and tighter transient control that sealed subwoofer designs favour.
The single roll rubber surround matches the 12NTLX3500’s suspension choice, providing the ultra-linear compliance needed for the 7.9 mm Xmax and 8.5 mm Xvar excursion range. The curvilinear cone with weather-protected treatment provides outdoor durability for touring subwoofer applications.
At 4.7 kg — identical to the flagship 12NTLW3500’s weight despite the very different application — the 18 Sound 12NTLS3500 maintains the extreme low weight that 18 Sound credits throughout the Dual Gap family. The 195 mm depth is the deepest of any 18 Sound 12-inch driver we’ve covered, 1 mm deeper than the 12NTLX3500, reflecting the shared 88 mm coil and dual-gap motor structure’s substantial mounting depth requirement.
The 9 mm flange is notably thinner than the 12NTLX3500’s 15 mm — a mounting detail difference between the two sub-tuned siblings despite their otherwise near-identical motor architecture.
Performance and Applications for the 18 Sound 12NTLS3500
The 18 Sound 12NTLS3500 delivers 93.5 dB sensitivity across a 40 Hz – 4000 Hz bandwidth. The 750 W AES / 1500 W continuous program power handling is the highest of any 88 mm-coil sub-tuned 12-inch driver in 18 Sound’s range — 150 W AES / 300 W program above the 12NTLX3500’s 600 W AES / 1200 W.
18 Sound recommends a 40-litre (1.41 ft³) vented enclosure tuned to 42 Hz — a smaller, deeper-tuned cabinet than the 12NTLX3500’s 60-litre, 45 Hz recommendation, reflecting the 18 Sound 12NTLS3500’s higher Qts and different alignment characteristics. The 41 Hz Fs is virtually identical to the 12NTLX3500’s 39 Hz, confirming both drivers reach comparably deep into sub-bass territory despite their different power and enclosure profiles.
The 0.41 Qts and 95 Hz EBP give the 18 Sound 12NTLS3500 genuine flexibility across sealed and vented topologies — a sealed enclosure design benefits from the higher Qts to produce a more extended, gentler rolloff shape, while the recommended 40-litre vented alignment delivers the punchy, deep-tuned output that compact touring subwoofers demand.
The 7.9 mm Xmax with 8.5 mm Xvar, combined with the 531 cm² radiating area, produces substantial volume displacement — the 92 g moving mass adds inertia but the Dual Gap motor’s Bl symmetry keeps distortion controlled even at the driver’s higher-power, higher-displacement operating envelope.
The comparison to the 12NTLX3500 gives builders a clear choice between two closely related sub-bass specialists. The 12NTLX3500 delivers higher sensitivity (95.5 vs 93.5 dB) and lower Qts (0.33 vs 0.41) for a more conventionally vented-optimised alignment. The 18 Sound 12NTLS3500 delivers higher power handling (750 vs 600 W AES / 1500 vs 1200 W program) and more enclosure flexibility (0.41 Qts working in both sealed and vented topologies). Both share the same 41 Hz-class Fs and near-identical physical dimensions.
For touring subwoofer applications specifically requiring maximum sustained power handling in a compact, deeply-tuned enclosure — with the flexibility to go sealed where cabinet space or venue requirements demand it — the 18 Sound 12NTLS3500 is the Dual Gap sub-bass driver built for the job.
Conclusion – 18 Sound 12NTLS3500 Subwoofer Driver
The 18 Sound 12NTLS3500 is 18 Sound’s high-power compact subwoofer specialist within the Dual Gap 88 mm-coil family — sharing the 12NTLX3500’s coil and gap geometry but tuned with a heavier moving mass and higher Qts for maximum power handling and enclosure flexibility. The 1500 W continuous program rating is the highest of any sub-tuned 12-inch driver in 18 Sound’s range, and the 0.41 Qts with 95 Hz EBP gives builders genuine freedom between sealed and vented cabinet designs.
At 4.7 kg with 41 Hz Fs and 40 Hz lower frequency extension, the 18 Sound 12NTLS3500 delivers the deep bass reach that defines 18 Sound’s Dual Gap subwoofer platform, backed by the lowest intermodulation distortion in the professional market that the company credits to the perfect balance between motor and ultra-linear suspension.
For compact touring subwoofers demanding maximum sustained power handling, sealed or vented enclosure flexibility, and the Dual Gap architecture’s thermal and distortion advantages, the 18 Sound 12NTLS3500 is the highest-power component 18 Sound builds specifically for the job.
