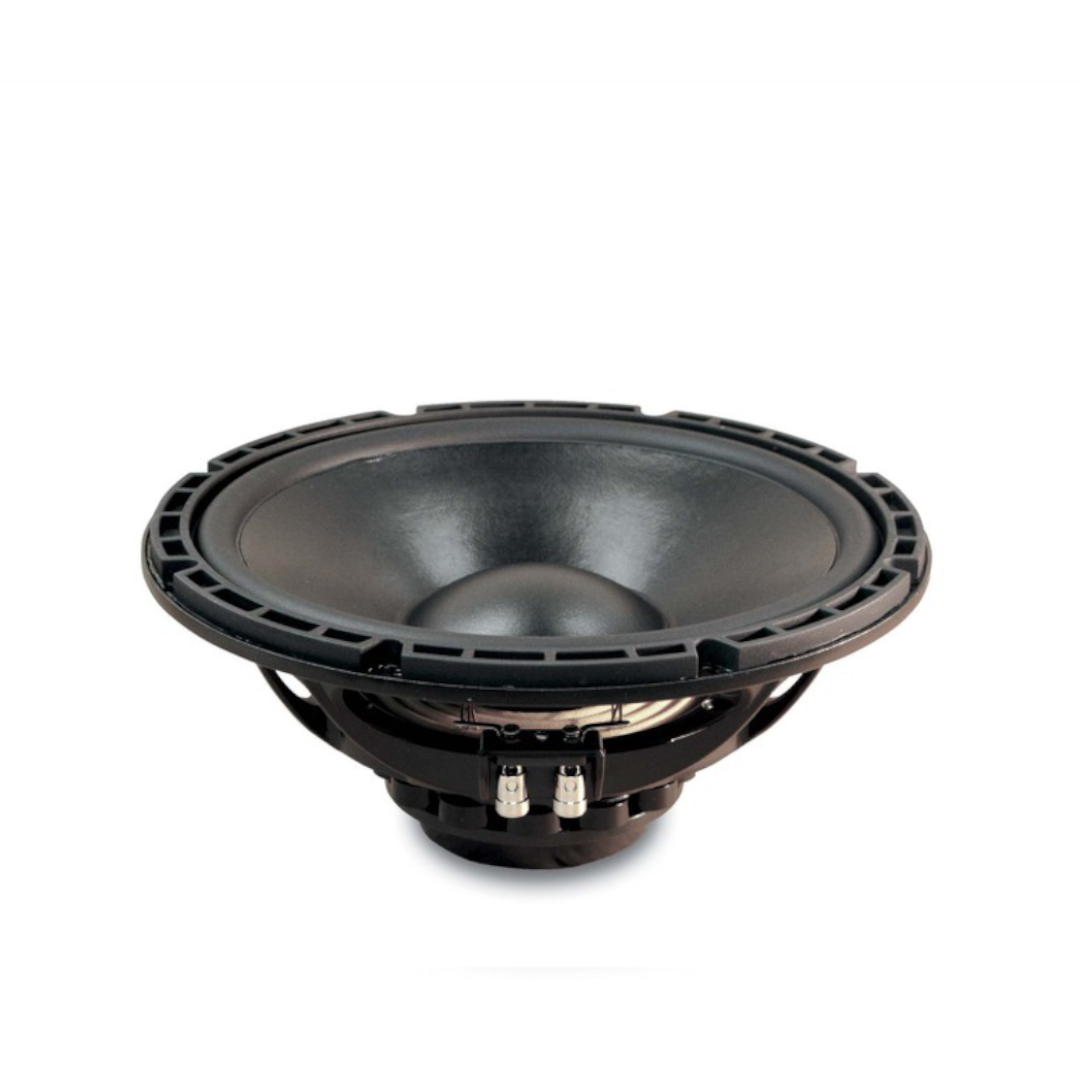

18 Sound 12NW530 – Compact Subwoofer 12-Inch Neodymium Woofer with DSS Double Silicon Spider Technology
The 18 Sound 12NW530 is a neodymium 12-inch driver specifically developed for high power, low distortion, very compact subwoofer applications — the first 12-inch driver in 18 Sound’s range engineered exclusively for sub-bass duty rather than two-way or mid-bass use. With a 75 mm copper ISV voice coil, 19.7 Tm force factor, 500 W AES / 800 W program power handling, 8.0 mm Xmax, and 18 Sound’s DSS (Double Silicon Spider) technology combined with SDR distortion reduction, the 18 Sound 12NW530 finds its main application in compact vented subwoofers as small as 40 litres.
The DSS (Double Silicon Spider) is a technology we haven’t encountered elsewhere in 18 Sound’s 12-inch range — a dual silicon spider suspension design that, combined with a single roll highly damped surround, provides symmetric large-signal behaviour throughout the entire working range. The result is low harmonic distortion at different excitation levels, addressing the nonlinear suspension behaviour that conventional single-spider designs can exhibit at high excursion — precisely the operating condition a dedicated subwoofer driver experiences constantly.
The 93 g moving mass is the heaviest of any 18 Sound 12-inch driver we’ve covered — nearly double the 12W750’s 57 g. That substantial mass, combined with the 48 Hz – 3200 Hz bandwidth (dramatically narrower than the two-way-oriented ferrite drivers), confirms the 18 Sound 12NW530’s singular purpose: dedicated low-frequency reproduction with no pretence toward mid-bass or two-way duty.
At just 4.0 kg — remarkably light for a driver carrying a 75 mm coil, 93 g moving mass, and 500 W AES power handling — the external neodymium magnet assembly is what makes this weight possible. 8 Ω only, with water and UV repellent cone treatment for outdoor durability.
Design and Construction of the 18 Sound 12NW530
The 18 Sound 12NW530 uses a 75 mm (3-inch) copper wire ISV (Interleaved Sandwich Voice Coil) — copper rather than the aluminium found on the ferrite 12-inch drivers, providing high levels of thermal stability and durability that sustained subwoofer operation demands. The ISV architecture carries windings on both outer and inner surfaces of a fibreglass former for mass-balanced, linear motor behaviour.
The external neodymium magnet assembly is the engineering foundation of the 18 Sound 12NW530’s exceptional power-to-weight ratio. 18 Sound notes the external magnet configuration is considerably more efficient than traditional under-pole magnet topology, assuring high flux concentration, low power compression, and excellent heat exchange — producing the 19.7 Tm force factor and 500 W AES power handling from just 4.0 kg of total driver mass.
The DSS (Double Silicon Spider) technology is the suspension innovation that defines this driver. Two silicon spiders work in combination with a single roll, highly damped rubber surround to provide symmetric large-signal behaviour throughout the entire excursion range. Conventional single-spider suspensions can exhibit asymmetric stiffness as excursion increases — softer in one direction than the other — which generates even-order harmonic distortion at high output. The dual silicon spider arrangement balances this behaviour, keeping distortion low across the full 8.0 mm Xmax at any excitation level.
The already low distortion is further improved by a properly positioned Single Demodulating Ring (SDR), which flattens impedance and phase curves, helping maintain constant power transfer from the amplifier. The SDR and DSS technologies work together — the SDR addresses electromagnetic distortion sources in the motor, while the DSS addresses mechanical distortion sources in the suspension.
The deep-profile curvilinear cone is created from special high-strength wood pulp designed to achieve the best possible linearity. The humidity repellent cone treatment significantly dampens bell-mode resonances — a dual-function treatment addressing both environmental durability and acoustic performance. A special coating applied to both top and back plates makes the 18 Sound 12NW530 far more resistant to the corrosive effects of salts and oxidisation, with the cone treatment additionally providing UV resistance for sustained outdoor sun exposure.
At 4.0 kg, 315 mm overall diameter, 282 mm baffle cutout, and 136 mm depth, the 18 Sound 12NW530 is dramatically lighter than every ferrite 12-inch driver in the range despite the larger 93 g moving mass and higher power handling — the neodymium motor’s efficiency advantage over ferrite is stark at this scale.
Performance and Applications for the 18 Sound 12NW530
The 18 Sound 12NW530 delivers 96 dB sensitivity across a 48 Hz – 3200 Hz bandwidth. The narrow upper bandwidth — 1000 Hz below the ferrite 12W700’s 4200 Hz and 1400 Hz below the 12W750’s 4600 Hz — confirms this driver’s dedicated subwoofer role. There is no attempt to extend into mid-bass territory; every design parameter is optimised for maximum output and control below 3200 Hz.
18 Sound recommends a 50-litre vented enclosure tuned to 55 Hz, with the driver’s main application in compact vented subwoofers as small as 40 litres. The 8.0 mm Xmax combined with the 530 cm² radiating area produces substantial volume displacement from a compact cabinet — the driver is built to move serious air from a small box.
The 500 W AES / 800 W continuous program power handling, combined with the 0.37 Qts, positions the 18 Sound 12NW530 for high-output compact subwoofer applications where sustained power and controlled excursion matter more than maximum bandwidth or sensitivity. The 144 Hz EBP sits at the flexible sealed/vented boundary, though 18 Sound’s own recommendation and stated application focus firmly on vented designs.
The DSS technology’s practical benefit is most audible during sustained high-SPL subwoofer operation — exactly where the driver spends most of its operating life. Conventional subwoofer drivers can exhibit increasing distortion and asymmetric behaviour as excursion approaches Xmax during loud passages. The dual silicon spider suspension keeps the large-signal behaviour symmetric, producing cleaner, more controlled bass at the power levels where subwoofers are actually used.
For compact subwoofer cabinets, distributed bass systems, and touring rigs where minimum weight and maximum power-to-weight ratio matter, the 18 Sound 12NW530’s 4.0 kg weight with 500 W AES handling is a genuinely compelling combination — few 12-inch subwoofer drivers from any manufacturer achieve this ratio.
Conclusion – 18 Sound 12NW530 Woofer
The 18 Sound 12NW530 is 18 Sound’s dedicated compact subwoofer solution in the 12-inch neodymium format — the first driver in the range purpose-built exclusively for sub-bass reproduction rather than two-way or mid-bass duty. The DSS Double Silicon Spider technology, combined with SDR distortion reduction, addresses both mechanical and electromagnetic sources of distortion simultaneously, producing symmetric large-signal behaviour across the full 8.0 mm Xmax.
At 4.0 kg with 500 W AES power handling and 19.7 Tm force factor, the external neodymium motor delivers a power-to-weight ratio that ferrite subwoofer drivers can’t approach. For compact vented subwoofers as small as 40 litres, touring rigs where weight matters, and any application demanding low-distortion bass at high output, the 18 Sound 12NW530 is the 12-inch that brings DSS suspension technology and neodymium efficiency together for dedicated sub-bass performance.
