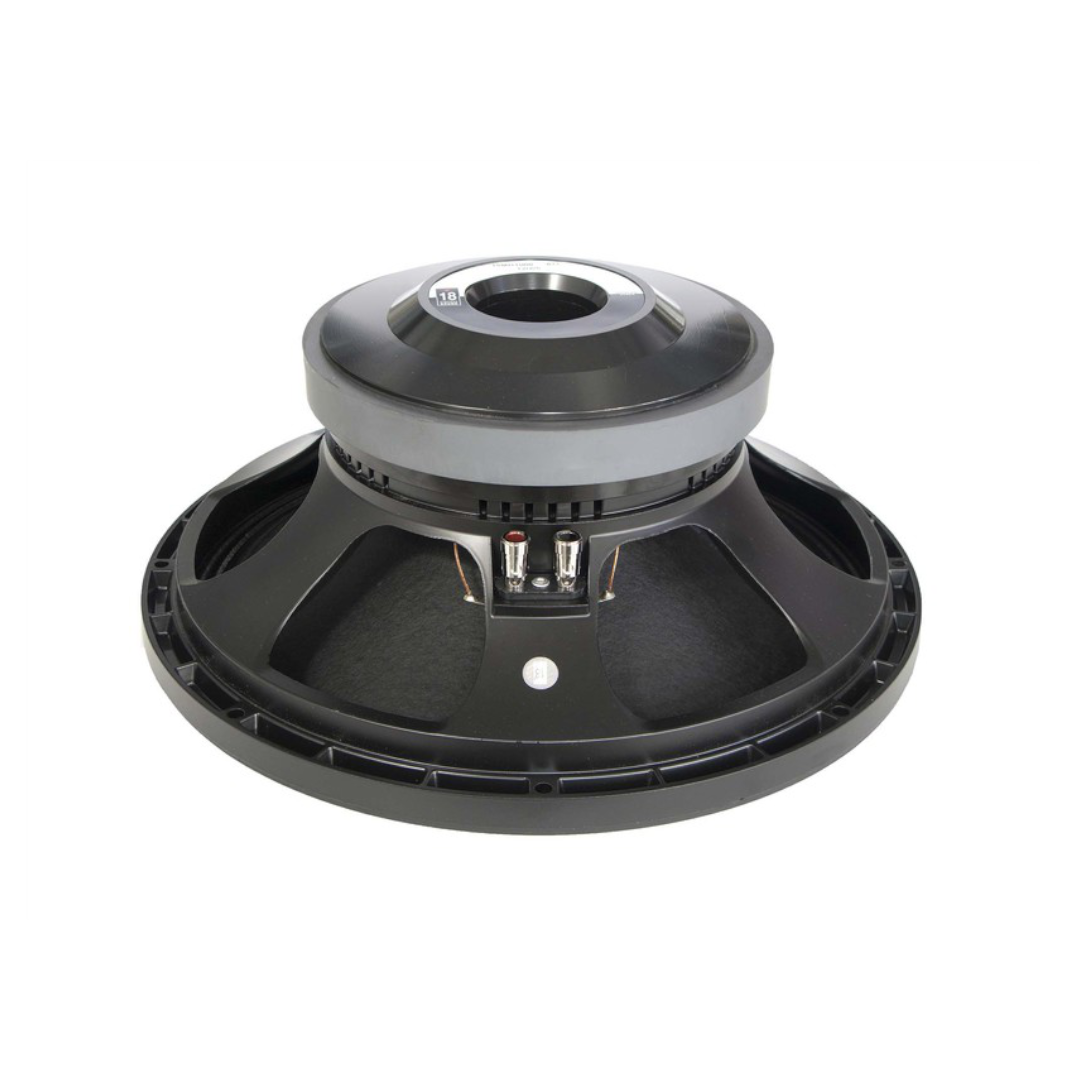

18 Sound 15MB1000 – Ferrite Origin of the Flagship 100mm Coil Carbon Fibre Mid-Low Platform
The 18 Sound 15MB1000 is a 100 mm (4-inch) voice coil, 380 mm (15-inch) diameter mid-low frequency transducer which has been created to meet requirements for low bass applications where a significant extension in mid frequency is needed — the ferrite origin platform that the neodymium 15NMB1000, documented earlier in this session, was explicitly developed from, sharing the same 100 mm coil diameter and carbon fibre reinforced cone construction.
It has been designed for use in compact reflex enclosures, in two-way systems with 1.4-inch to 2-inch compression drivers, and stage monitoring applications. The 18 Sound 15MB1000 is also suitable for horn-loaded applications in multiway systems.
The copper shorting ring on the plates has been adopted to reduce inductance and improve transient response, with intermodulation distortion also significantly improved — a feature not documented on the neodymium successor’s own description, suggesting the ferrite original carries this specific refinement that its neodymium counterpart’s published feature list doesn’t explicitly mention. The low distortion and unmatched sound quality of the 18 Sound 15MB1000 has been significantly improved by the Double Demodulating Rings (DDR) embedded in the pole piece of the magnetic structure.
At 11.4 kg — nearly double the weight of the neodymium 15NMB1000’s 6.0 kg — the 18 Sound 15MB1000 illustrates the direct ferrite-versus-neodymium weight penalty at its most extreme within this session’s coverage, matching the acoustic performance closely while carrying dramatically more mass. 18 Sound now lists the 15MB700 as the alternative/current model.
Design and Construction of the 18 Sound 15MB1000
The low-profile, carbon fibre reinforced, smooth curvilinear cone provides smooth response within its intended frequency range and exceptional strength with maximum reliability under high mechanical stress — the same carbon fibre reinforcement concept documented on the neodymium 15NMB1000, here on the ferrite original.
The copper shorting ring on the plates has been adopted to reduce inductance and improve transient response. Intermodulation distortion has also been significantly improved. The 100 mm aluminium voice coil employs the Interleaved Sandwich Voice Coil (ISV) technology, in which a high-strength fibreglass former carries windings on both the outer and inner surfaces to achieve a balanced coil with a uniform distribution of mass and motive energy. This results in an extremely linear motor assembly.
The low distortion and unmatched sound quality of the 18 Sound 15MB1000 has been significantly improved by the Double Demodulating Rings (DDR) embedded in the pole piece of the magnetic structure. These have been designed to dramatically reduce the intermodulation and harmonic distortion while improving the transient response.
Excellent heat dissipation has been achieved by incorporating air channels between the basket and the magnetic top plate. Further ventilation is provided using air vents in the back plate that direct air into the lower part of the voice coil gap — the same dual-path cooling approach documented on the neodymium successor.
Considerable attention has also been given to the design of the magnetic structure in order to maximise flux concentration and force factor in the gap. The 21.0 Tm force factor driving 85 g of moving mass produces 98 dB sensitivity and the 0.31 Qts / 150 Hz EBP alignment.
Due to the increasing use of high-power audio systems at outdoor events, the ability to perform in adverse weather conditions is a key feature of the 18 Sound 15MB1000. This has been achieved using exclusive treatments which allow the cone and the magnetic plate to resist corrosion whilst also rendering the cone water repellent.
At 11.4 kg, 387 mm overall diameter, 353 mm baffle cutout, 156 mm depth, and 19 mm flange, the 18 Sound 15MB1000’s ferrite motor mass accounts for the dramatic weight difference from its neodymium successor despite both sharing the same 100 mm coil diameter and carbon fibre cone construction.
Performance and Applications for the 18 Sound 15MB1000
The 18 Sound 15MB1000 delivers 98 dB sensitivity across a 45 Hz – 5100 Hz bandwidth — 3 dB below the neodymium 15NMB1000’s 101 dB, but with a substantially wider bandwidth (5100 vs 2500 Hz) and lower frequency extension (45 vs 45 Hz Fs matching).
18 Sound recommends a 100-litre (3.53 ft³) vented enclosure tuned to 55 Hz — a larger cabinet than the neodymium version’s 50-litre recommendation.
The 850 W AES / 1200 W continuous program power handling is lower than the neodymium 15NMB1000’s 900 W AES / 1800 W, reflecting the different thermal characteristics between ferrite and neodymium motor construction at this scale.
For compact reflex enclosures, two-way systems with 1.4-inch to 2-inch compression drivers, and stage monitoring applications, the 18 Sound 15MB1000 delivers the same fundamental design philosophy as its neodymium successor — carbon fibre cone rigidity, DDR distortion reduction, and copper shorting ring inductance control — at a considerable weight premium that ferrite motor construction necessarily carries.
The comparison to the neodymium 15NMB1000 is the clearest illustration in this session’s 15-inch coverage of the ferrite-to-neodymium transition: nearly identical acoustic architecture and design philosophy, but 5.4 kg of additional weight for the ferrite version — a genuinely dramatic difference for builders weighing cost against portability.
Conclusion – 18 Sound 15MB1000 Mid-Low Driver
The 18 Sound 15MB1000 is the ferrite origin platform from which the neodymium 15NMB1000 was directly developed — sharing the same 100 mm coil diameter, carbon fibre reinforced cone, and DDR distortion reduction technology, but at 11.4 kg versus the neodymium version’s 6.0 kg. The copper shorting ring provides additional inductance control that complements the DDR’s distortion reduction.
For compact reflex enclosures, two-way systems, and stage monitoring applications where ferrite cost outweighs the substantial weight penalty against the neodymium successor, the 18 Sound 15MB1000 remains a capable, well-engineered mid-low platform. 18 Sound now lists the 15MB700 as the current alternative.
