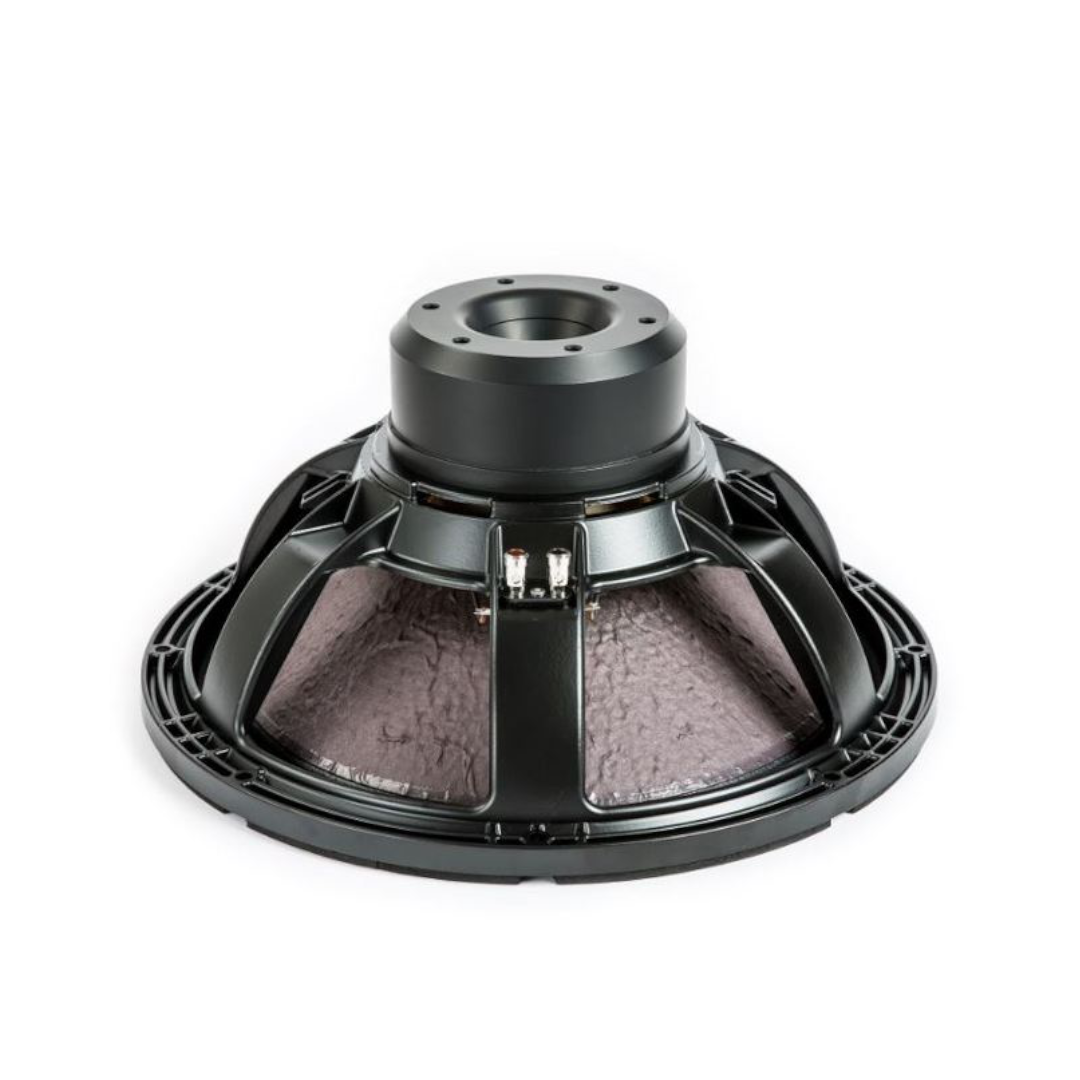

18 Sound 18NLW4500 – 18-Inch Deep-Bass Specialist with 115mm Coil and 3600 Watt Handling
The 18 Sound 18NLW4500 is an 18-inch (466 mm) extended low frequency loudspeaker, designed for use in vented, bandpass, or even horn-loaded enclosures — the direct 18-inch counterpart to the 115 mm-coil 15NLW4500 documented earlier in this session, sharing the same design philosophy and voice coil technology scaled to the larger diameter. The loudspeaker is designed to withstand high power levels without damage while providing clean and undistorted LF reproduction at a very high SPL. For optimum results, 18 Sound recommends amplifiers able to deliver 3600 W program power.
The 18 Sound 18NLW4500 features a unique motor featuring a high-grade Neo magnet assembly in a structure optimised for thermal and magnetic efficiency. Features include a large displacement suspension system which, in conjunction with a composite reinforced, straight ribbed cone and 18 Sound’s proprietary SDR technology, allows an undistorted ultra-linear piston action and provides full mechanical control across the entire working range.
The 115 mm state-of-the-art voice coil utilising Interleaved Sandwich Voice coil (ISV) technology provides high levels of thermal stability and durability. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor — the 30.3 Tm Bl documented here is genuinely substantial, though below the record figures documented on the 135 mm-coil and Tetracoil drivers covered elsewhere in this session.
The 30–1000 Hz bandwidth is deliberately narrow and deep-bass-focused — this driver makes no pretence toward mid-bass or two-way duty, confirming its singular purpose as a dedicated deep subwoofer transducer.
Design and Construction of the 18 Sound 18NLW4500
The 115 mm (4.5-inch) state-of-the-art voice coil utilises Interleaved Sandwich Voice coil (ISV) technology, providing high levels of thermal stability and durability. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor. The 30.3 Tm force factor driving 286 g of moving mass produces 97 dB sensitivity, 1.8% reference efficiency, and the 0.33 Qts / 102 Hz EBP alignment.
The large displacement suspension system, in conjunction with the composite reinforced, straight ribbed cone and the SDR technology, allows an undistorted ultra-linear piston action and provides full mechanical control across the entire working range through the substantial 15.3 mm Xmax — matching the excursion figure documented on the 15-inch 15NLW4500 sibling exactly, confirming a shared suspension and coil design philosophy across both diameters.
The composite reinforced, straight ribbed cone provides the structural rigidity needed to withstand the mechanical demands of sustained operation at 15.3 mm of excursion under the driver’s substantial 3600 W program power rating. Weather protected cone and plates provide outdoor durability for touring and installed applications.
At 12.0 kg, 462 mm overall diameter, 422 mm baffle cutout, 233 mm depth, and 23 mm flange, the 18 Sound 18NLW4500 is genuinely lighter than several of the other 18-inch drivers documented in this session, despite carrying substantial power handling and excursion capability.
Performance and Applications for the 18 Sound 18NLW4500
The 18 Sound 18NLW4500 delivers 97 dB sensitivity across a deliberately narrow 30 Hz – 1000 Hz bandwidth — the narrowest documented among the 18-inch drivers in this session, confirming this driver’s singular deep-bass purpose with no attempt to extend into mid-bass territory.
18 Sound recommends a 200-litre (7.06 ft³) vented enclosure tuned to 37 Hz. The 1800 W AES / 3600 W continuous power handling, combined with the 15.3 mm Xmax and 1225 cm² radiating area, produces enormous volume displacement suitable for vented, bandpass, or horn-loaded enclosures where maximum low-frequency SPL from a single 18-inch transducer is the requirement.
The great heat dissipation capability and ultra-linear suspension system that 18 Sound highlights ensure this driver sustains its full-rated power output over extended professional use, while the neo motor’s high power and very efficient thermal exchange keeps the driver’s weight manageable relative to its substantial output capability.
18 Sound now lists the 18NTLW5000 — the genuine pinnacle Tetracoil flagship documented as the ultimate driver across this entire session — as the alternative/current model, confirming this 115 mm single-coil platform has, like several other premium 18-inch drivers documented in this coverage, been superseded by the dual-coil Tetracoil architecture at the top of 18 Sound’s current range.
Conclusion – 18 Sound 18NLW4500 Subwoofer Driver
The 18 Sound 18NLW4500 is the 18-inch counterpart to the 115 mm-coil 15NLW4500, delivering the same 15.3 mm Xmax and SDR-equipped ISV motor technology at the largest diameter documented in this session. The deliberately narrow 30–1000 Hz bandwidth confirms this driver’s singular purpose as a dedicated deep-bass specialist, engineered for vented, bandpass, and horn-loaded enclosures demanding maximum sustained SPL without distortion.
18 Sound now points builders toward the Tetracoil 18NTLW5000 as the current alternative. For applications specifically requiring this 115 mm single-coil platform’s specific characteristics, or where compatibility with existing 18NLW4500 installations matters, this driver remains a capable, well-engineered deep-bass specialist.
