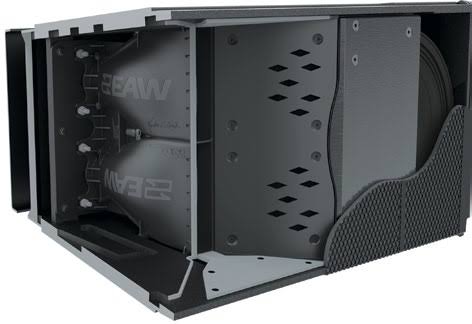

EAW KF810P
INSTALLATION LINE ARRAY
The EAW KF810P offers best-in-class output, true broadband pattern control, and integrated 3-way performance, hallmarks of the legendary KF series, as well as a brand new iso-phasic HF waveguide.
EAW KF810P Specifications
Frequency Response | 50 Hz to 20 kHz |
Max SPL | 145dB |
Operating Mode | Bi-amp LF, MF / HF DSP w/EAW Focusing |
Subsystem | LF 2X 10in, 3.0in VC MF 4X 5in, 1.7in VC HF 2X 1.4in exit, 3in VC |
Nominal Beamwidth | Horizontal – 110° or 80° Vertical – 10° |
Power Handling | LF 1000W @ 8ohms MF/HF 500W @ 8ohms |
Connections | Barrier Strip |
Dimensions | Height: 12.6 in (320 mm) Width: 32.9 in (835 mm) Depth: 17.4 in (443 mm) |
Weight | 88lbs (40 kg) |
The KF810P incorporates specific design features tailored for the installation market: clean aesthetics offered in black or white, invisible wiring, and concealed 3-point rigging. A weather rated option allows for long term permanent installation in demanding environments backed by EAW’s full warranty.
Engineered for a wide variety of applications, the compact KF810 module is comprised of dual 3″ voice coil high frequency compression drivers, four 5″ mid-frequency transducers and two 3″ voice coil high power 10″ LF drivers. The output of these sources unites through an integrated horn that occupies nearly the entire forward face of the speaker enclosure, delivering up to 145dB with accurate pattern control to 250Hz to master the most challenging acoustic spaces.
Best in Class Acoustic Performance
Optional 80° or 110° Dispersion
Ultra-Clean Look
Concealed Wiring and Rigging
