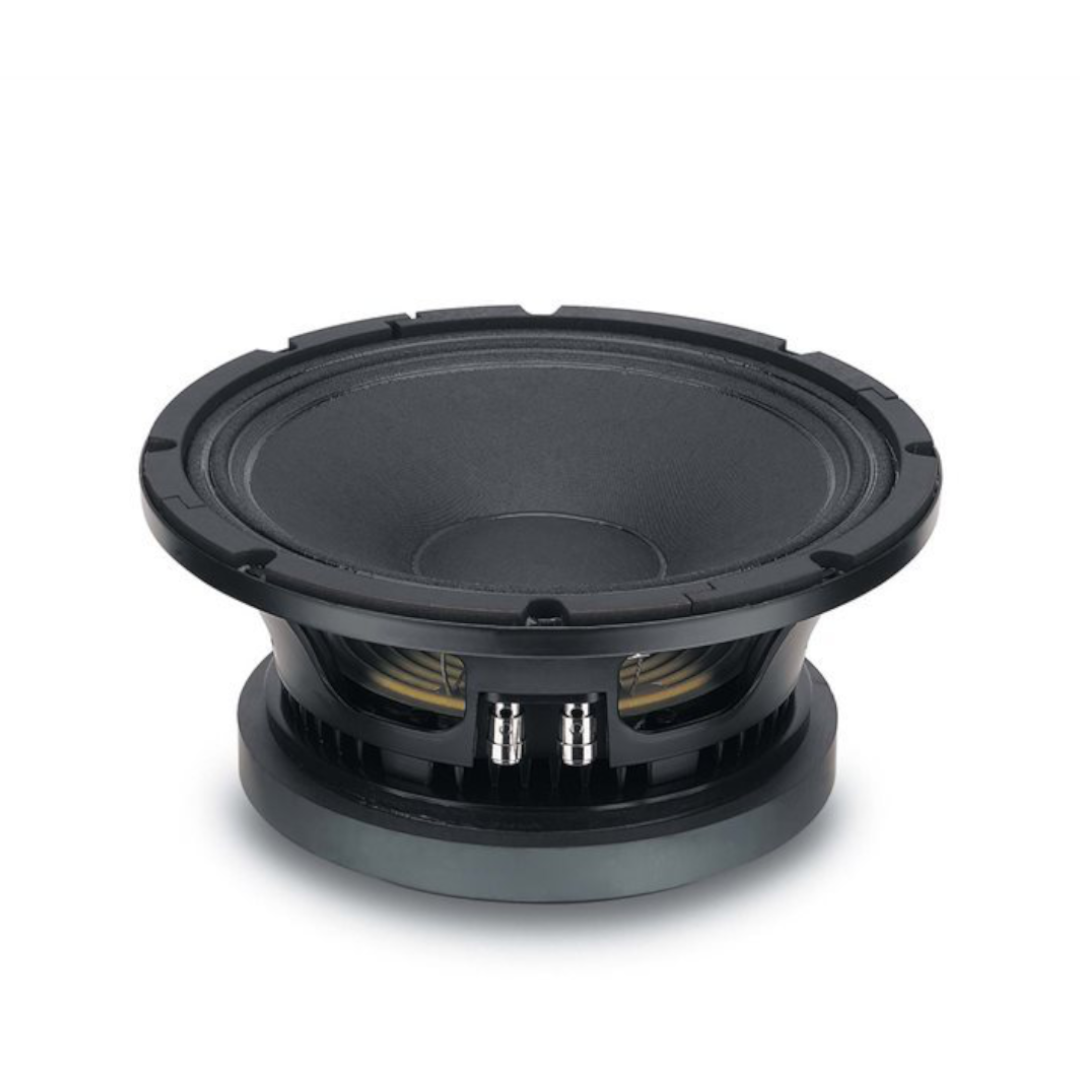

18 Sound 10MB600 – High-Power Ferrite 10-Inch Mid-Bass with 75 mm ISV Coil and Improved Heat Dissipation
The 18 Sound 10MB600 is 18 Sound’s globally available high-power ferrite 10-inch mid-bass driver, developed directly from the 10M600 midrange platform. With a 75 mm ISV voice coil, 18.6 Tm force factor, 98 dB sensitivity, and 450 W AES / 700 W continuous program power handling, the 18 Sound 10MB600 combines the motor linearity of 18 Sound’s flagship midrange engineering with the displacement and power handling that compact two-way reflex systems demand — available in both 8 and 16 Ω for maximum system design flexibility.
The 75 mm ISV coil is the same coil platform fitted to 18 Sound’s top-of-the-range 15 and 18-inch models, wound with aluminium wire and built on a high-strength fibreglass former that carries windings on both outer and inner surfaces. This mass-balanced construction produces an extremely linear motor assembly with reduced tendency toward eccentric behaviour when driven hard — the same engineering discipline 18 Sound applies to its largest professional drivers, scaled down to the 10-inch mid-bass format.
18 Sound specifically highlights an improved heat dissipation basket design and excellent transient response as defining features of the 18 Sound 10MB600 — the unique basket geometry works alongside the voice coil cooling airways to manage thermal load during sustained high-power operation, supporting the 450 W AES rating and helping maintain consistent transient articulation under load.
18 Sound intends the 18 Sound 10MB600 primarily as a mid-bass driver in extremely compact two-way reflex enclosures between 10 and 40 litres. At 7.2 kg with weather-protected cone and plate treatment for outdoor durability, available in 8 and 16 Ω. 18 Sound lists the 10NMB420 as the alternative/current model.
Design and Construction of the 18 Sound 10MB600
The 18 Sound 10MB600 uses a 75 mm (3-inch) aluminium ISV (Interleaved Sandwich Voice Coil) — the same coil diameter fitted to 18 Sound’s flagship 15 and 18-inch drivers. A high-strength fibreglass former carries windings on both the outer and inner surfaces to achieve a mass-balanced coil, producing an extremely linear motor assembly with reduced eccentric behaviour under hard driving conditions.
The 18.6 Tm force factor driving 38 g of moving mass produces 98 dB sensitivity and the 0.22 Qts / 252 Hz EBP that define a strongly motor-dominant mid-bass alignment. The curvilinear paper cone is formed using a special high-strength wood pulp designed for maximum rigidity and stiffness, with an exclusive treatment applied to increase water repellency for outdoor use in inclement weather.
Voice coil cooling uses airways between the chassis back plate and the magnet face plate, channelling heated air from the coil and gap away for dissipation through the chassis basket — a cooling architecture 18 Sound developed using 3D CAD resource application. 18 Sound specifically credits the unique basket design for improved heat dissipation on the 18 Sound 10MB600, working in tandem with the airway cooling to extend thermal headroom during sustained high-power operation.
The top and back plates of the magnet assembly were designed using in-house FEA CAD to optimise flux density and Bl factor in the air gap. A special treatment applied to both plates makes the transducer far more resistant to the corrosive effects of salts and oxidisation, enabling reliable outdoor performance.
The M-roll surround provides controlled compliance through the 6.5 mm Xmax — solid mid-bass displacement from a ferrite motor without SDR or AIC ring technology. The 1.6 mH Le is the highest inductance of any 18 Sound 10-inch driver — the trade-off for the 75 mm coil’s raw force output without additional inductance-reducing hardware.
At 7.2 kg, 260 mm overall diameter, 232 mm baffle cutout, and 127 mm depth, the 18 Sound 10MB600 matches the 10MB777’s physical footprint exactly — the heaviest 10-inch driver in 18 Sound’s catalogue.
Performance and Applications for the 18 Sound 10MB600
The 18 Sound 10MB600 delivers 98 dB sensitivity across a 55 Hz – 4500 Hz bandwidth. The 450 W AES / 700 W continuous program power handling is the highest of any ferrite 10-inch mid-bass in 18 Sound’s range, matching the 10MB777 and exceeding the 10W650’s 250 W and 10W500’s 280 W by wide margins.
18 Sound recommends a 25-litre vented enclosure tuned to 65 Hz, though the driver’s primary design intent is extremely compact two-way reflex enclosures between 10 and 40 litres — the same broad enclosure window as the 10MB777, giving builders flexibility between tighter bass response and extended low-frequency output.
18 Sound describes the 18 Sound 10MB600 as ideal for compact two-way and multiway systems. The 6.5 mm Xmax provides genuine mid-bass displacement — more excursion than the AIC and SDR-equipped neodymium mid-bass options in the range, though at the cost of the lower inductance those technologies deliver.
The comparison to the 10M600 midrange this driver was developed from remains the same as with the 10MB777: the 10M600 delivers 102 dB from 80 Hz – 5200 Hz at 7.35 kg with a 4 mm Xmax, optimised purely for midrange output. The 18 Sound 10MB600 trades 4 dB of sensitivity and some bandwidth for 6.5 mm of Xmax and genuine mid-bass versatility.
The key practical distinction from the 10MB777 is availability. Where the 10MB777 is limited to U.S. distribution through Thunderball Marketing, the 18 Sound 10MB600 is 18 Sound’s standard global offering of the same platform, with the added 16 Ω option for multi-driver configurations and impedance management in line arrays and column speakers.
Conclusion – 18 Sound 10MB600 Mid-Bass Driver
The 18 Sound 10MB600 brings 18 Sound’s flagship 75 mm ISV coil technology to a globally available ferrite-motored 10-inch mid-bass platform developed directly from the 10M600 midrange. The 98 dB sensitivity, 450 W AES power handling, improved heat dissipation basket, and 6.5 mm Xmax combine motor linearity with genuine mid-bass displacement capability.
The 7.2 kg weight and 1.6 mH inductance are the honest costs — the heaviest 10-inch and the highest inductance in the catalogue, identical to the 10MB777. For compact two-way reflex systems where ferrite pricing and 10M600-class motor engineering matter more than minimum weight or crossover simplicity, the 18 Sound 10MB600 delivers a proven, high-power mid-bass platform available worldwide in 8 and 16 Ω.
