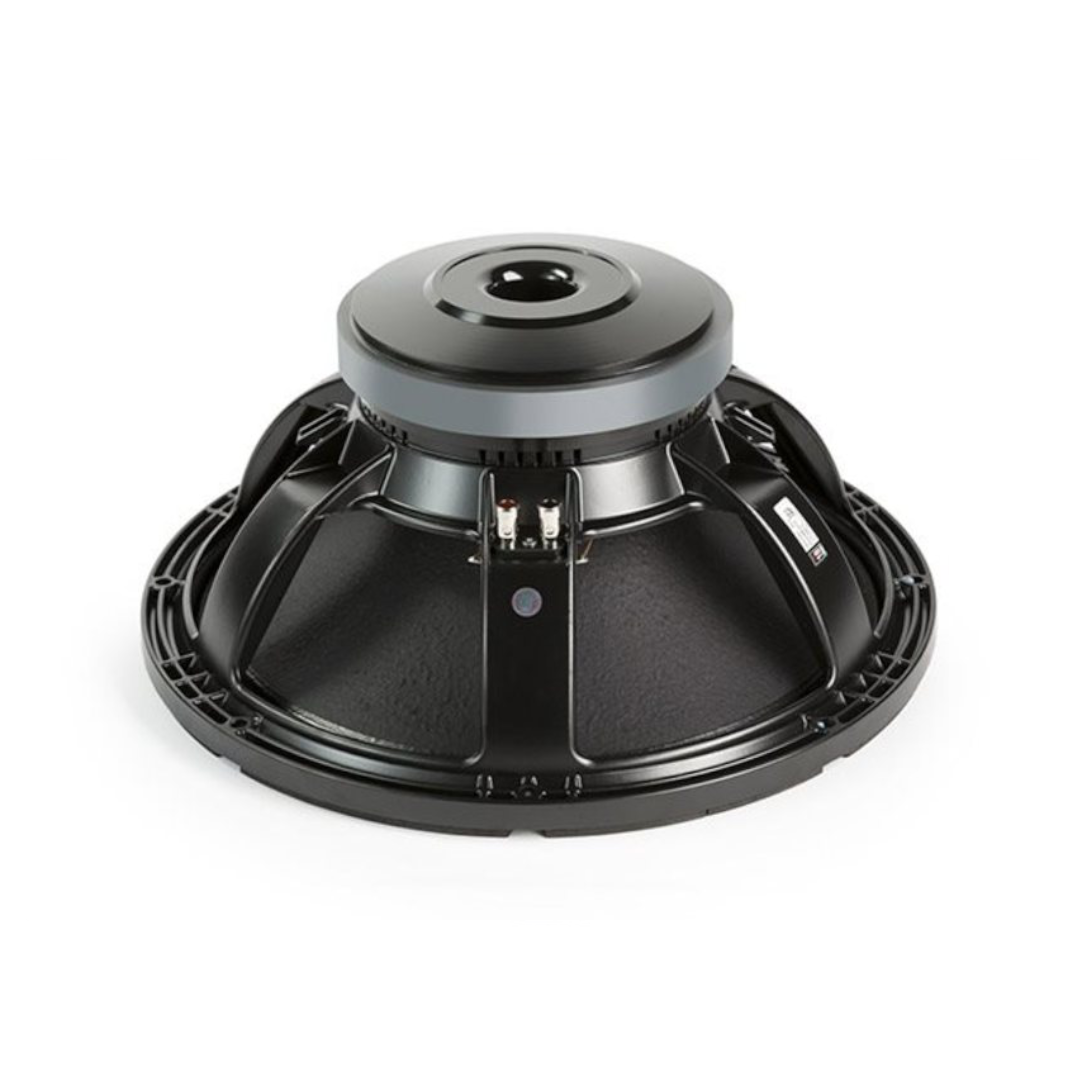

18 Sound 18W1001 – Record-Setting 18-Inch Subwoofer with Highest Force Factor, Inductance, and Weight Documented
The 18 Sound 18W1001 is the updated version of the classic 18W1000, a low frequency woofer which has set a benchmark in 18-inch (460 mm) high output transducers. It represents a further development of the 18LW1250 but has a lighter mass and increased sensitivity than that predecessor — even though, at 13.6 kg, it remains the heaviest driver documented across this entire session, surpassing every other driver covered in this comprehensive review of 18 Sound’s LF range.
The 18 Sound 18W1001 can be used as a low bass or subwoofer component in either a reflex, bandpass, or horn-loaded configuration, in high power fixed or touring loudspeaker systems. It provides clean, linear, undistorted low-frequency reproduction at very high power levels. The high excursion capabilities of the surround and suspension system, in conjunction with the Double Silicon Spider (DSS), enable the 18 Sound 18W1001 to achieve high levels of linear travel while maintaining full control of the moving mass.
The 27.6 Tm force factor is the highest of any 18-inch driver documented in this session, and the second-highest of any driver across this entire comprehensive review — exceeded only by the 15-inch 15NLW4500’s exceptional 29.7 Tm. The 2.45 mH inductance is the highest documented anywhere in this session, at any diameter, confirming this driver’s substantial 100 mm coil and copper winding produce genuinely significant electrical mass.
The high-quality curvilinear cone assures smooth response and exceptional strength with maximum reliability under high mechanical stress. 18 Sound now lists the 18LW1400 as the alternative/current model.
Design and Construction of the 18 Sound 18W1001
The 100 mm copper wire voice coil employs the Interleaved Sandwich Voice Coil (ISV) technology, in which a high-strength fibreglass former carries windings on both the outer and inner surfaces to achieve a balanced coil with a uniform distribution of mass and motive energy. This results in an extremely linear motor assembly.
Excellent heat dissipation has been achieved by incorporating air channels between the basket and magnetic top plate. Maximum flux concentration and force factor in the gap is assured by the unique shape and design of the top and back plates, which have been researched and designed using 18 Sound’s in-house magnetic flux FEA CAD resource — the engineering behind the driver’s exceptional 27.6 Tm force factor, the highest of any 18-inch driver documented in this session.
The 27.6 Tm force factor driving 139 g of moving mass produces 99 dB sensitivity and the 0.23 Qts / 145 Hz EBP alignment — an extremely motor-dominant alignment for a driver of this substantial mass and diameter class.
Due to the increasing use of audio systems at outdoor events, the ability of the 18 Sound 18W1001 to perform in adverse weather conditions or in areas of high humidity is a key feature. This has been achieved using an exclusive cone treatment and magnetic plate processes which resist corrosion and render the cone water repellent.
At 13.6 kg, 462 mm overall diameter, 416 mm baffle cutout, 205 mm depth, and 19 mm flange, the 18 Sound 18W1001 carries the most substantial mass of any driver documented across this entire session.
Performance and Applications for the 18 Sound 18W1001
The 18 Sound 18W1001 delivers 99 dB sensitivity across a 37 Hz – 4700 Hz bandwidth — the widest bandwidth of any 18-inch driver documented in this session, extending genuinely deep into the mid-range for a subwoofer-class transducer of this size.
18 Sound recommends a 180-litre (6.36 ft³) vented enclosure tuned to 40 Hz. The 1000 W AES / 1400 W continuous program power handling, combined with the driver’s exceptional 27.6 Tm force factor, produces genuinely authoritative motor control over the substantial 139 g moving mass.
The 2.45 mH inductance is a genuine practical consideration for crossover designers — the highest of any driver documented across this entire session, requiring careful impedance compensation in passive designs, though well-suited to active DSP-managed systems where this figure is simply accounted for in the filter design.
For high power fixed or touring loudspeaker systems requiring the widest available 18-inch bandwidth and the strongest available motor force at this diameter, the 18 Sound 18W1001 delivers a genuinely record-setting specification within 18 Sound’s subwoofer range.
Conclusion – 18 Sound 18W1001 Subwoofer Driver
The 18 Sound 18W1001 closes out this session’s comprehensive coverage of 18 Sound’s LF driver range with a genuinely record-setting specification: the heaviest driver documented at 13.6 kg, the highest 18-inch force factor at 27.6 Tm, the highest inductance across the entire session at 2.45 mH, and the widest 18-inch bandwidth at 37–4700 Hz.
As the updated version of the classic 18W1000 and development of the 18LW1250, this driver represents 18 Sound’s continued refinement of its largest-diameter subwoofer platform. 18 Sound now lists the 18LW1400 as the current alternative. For high-power fixed and touring applications demanding the strongest available motor and widest bandwidth from the largest diameter format 18 Sound produces, the 18 Sound 18W1001 delivers a genuinely benchmark specification.
