18 Sound 21iD – 2Ω Class D-Optimised 21-Inch Subwoofer for Powersoft iPAL Amplification

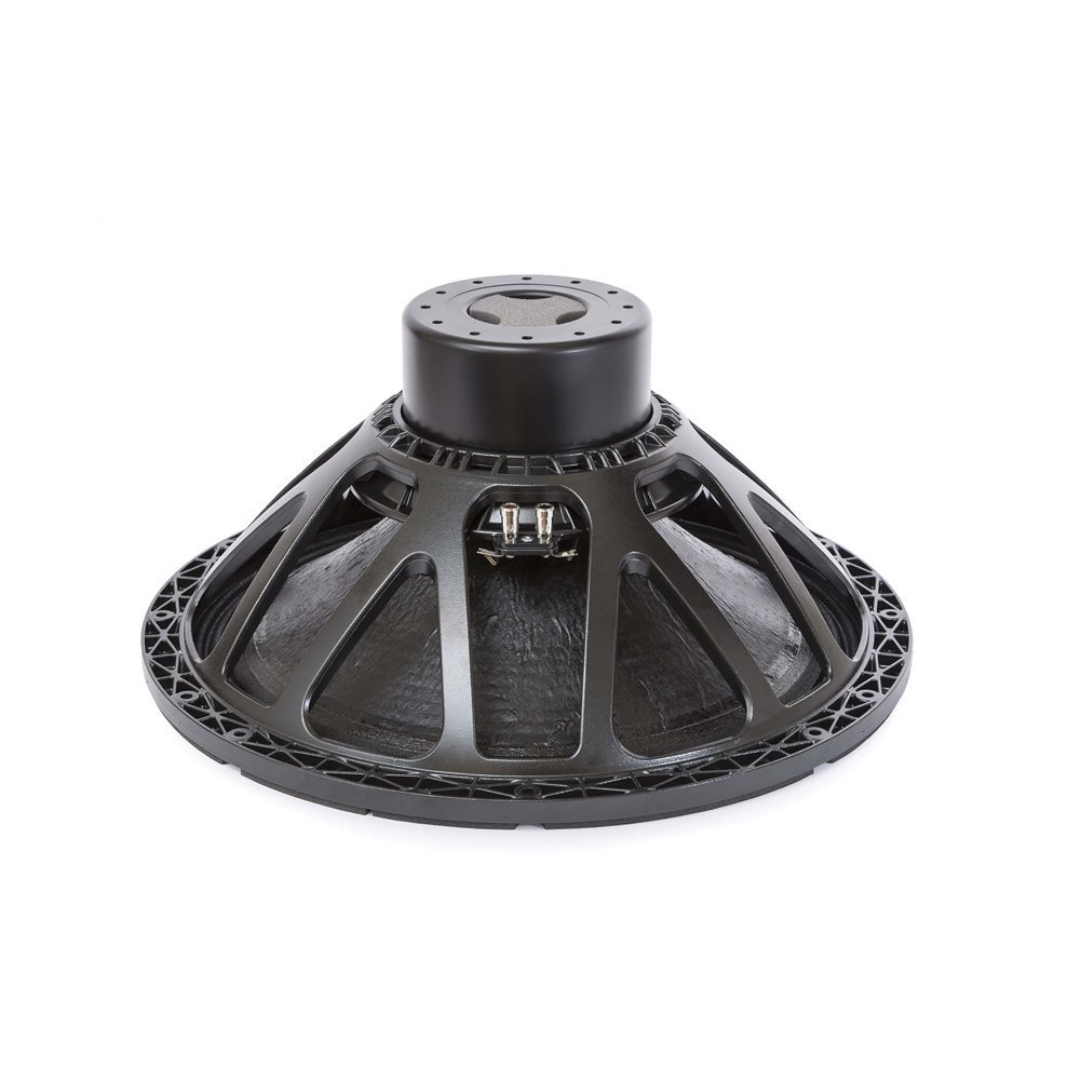

The 18 Sound 21iD is a 21-inch neodymium high performance subwoofer — the largest-diameter member of 18 Sound’s Class D-optimised, Powersoft iPAL-compliant driver family documented across this session, following the 18iD, 18iD200, and 18iDSDS covered earlier. The loudspeaker has been optimised for vented and bandpass subwoofer cabinet designs and is recommended to use a Class D or iPal(™) amplifier able to deliver 3600 W program power without clipping.
18 Sound engineers have obtained the best possible results with today’s available materials in terms of clean and undistorted LF reproduction at ultra high SPL, with the lowest possible power compression figure. The transducer design features include a large displacement suspension system specifically designed for matching the composite fibre reinforced, straight ribbed cone. Thanks to the Triple Silicon Spider (TSS) technology, the 18 Sound 21iD is able to control the moving mass with high linearity, showing an exceptional stability of mechanical parameter values in the long term.
Bl force factor, as well as all other electro-dynamic parameters, are linear within the working range. This, together with the exceptional high excursion behaviour — 70 mm before damage, ±14 mm linear Xmax — makes the 18 Sound 21iD an extremely low distortion, highly dynamic transducer. The 18 Sound 21iD features a state-of-the-art 5.3-inch inside-outside copper ISV voice coil enabling extraordinary transient results.
Design and Construction of the 18 Sound 21iD
The 18 Sound 21iD has been developed after intense FEA and fluid dynamics simulation and testing, focusing on dissipating the heat generated by the powerful voice coil. Special attention was given to the optimisation of air flow into the gap without introducing audible noise. A low-density material air diffractor placed into the heatsink acts as a cooling system, increasing the power handling capability and lowering the power compression figure.
The 25.2 Tm force factor driving 489 g of moving mass — a substantial figure, among the heaviest moving assemblies documented across this entire session, reflecting the driver’s substantial 135 mm coil and the TSS suspension’s capacity to control this mass with precision — produces 94.2 dB sensitivity and the 0.23 Qts / 158 Hz EBP alignment.
At 1.3 Ω DC resistance, the 18 Sound 21iD’s electrical design confirms it is genuinely engineered for low-impedance Class D operation, matching the same design philosophy documented on the 18-inch iD family.
At 13.6 kg, 545 mm overall diameter, 520 mm bolt circle, 492 mm baffle cutout, 250 mm depth, and 18 mm flange, the 18 Sound 21iD carries substantial but not extreme mass given its 135 mm coil scale, comparing favourably against the 21LW2600’s 17.1 kg and the 21LW1400’s 17.0 kg documented elsewhere in this session’s 21-inch coverage.
Performance and Applications for the 18 Sound 21iD
The 18 Sound 21iD delivers 94.2 dB sensitivity across a 29 Hz – 1600 Hz bandwidth. 18 Sound recommends a 220-litre (7.77 ft³) vented enclosure tuned to 40 Hz.
The 1800 W AES / 3600 W continuous power handling on 2 Ω loads, combined with the ±14 mm linear Xmax and 1660 cm² radiating area, produces substantial volume displacement optimised specifically for vented and bandpass subwoofer cabinet designs — the same application-specific positioning documented on the closely related 18iD at the smaller diameter.
For system integrators specifically building around Powersoft iPAL amplification or other Class D platforms optimised for low-impedance operation, and requiring the largest available diameter in 18 Sound’s Class D-optimised range, the 18 Sound 21iD represents the natural extension of the design philosophy documented across the 18-inch iD family to 18 Sound’s most extreme physical scale.
Conclusion – 18 Sound 21iD Subwoofer Driver
The 18 Sound 21iD is the largest-diameter Class D and Powersoft iPAL-optimised driver documented across this entire comprehensive session — a 21-inch TSS-equipped platform sharing the same 2 Ω, 3600 W program specification and design philosophy as its 18-inch siblings, with the largest coil moving mass in this specific driver family.
This genuinely closes out an extraordinarily thorough exploration of 18 Sound’s complete LF driver catalogue — every diameter from 5 through 21 inches, every magnet material, every suspension architecture from single silicon spiders through TSS and Tetracoil, every distortion reduction technology from SDR through DDR and AIC, and every application category from compact monitoring through the most extreme Class D-optimised touring subwoofers 18 Sound produces.
