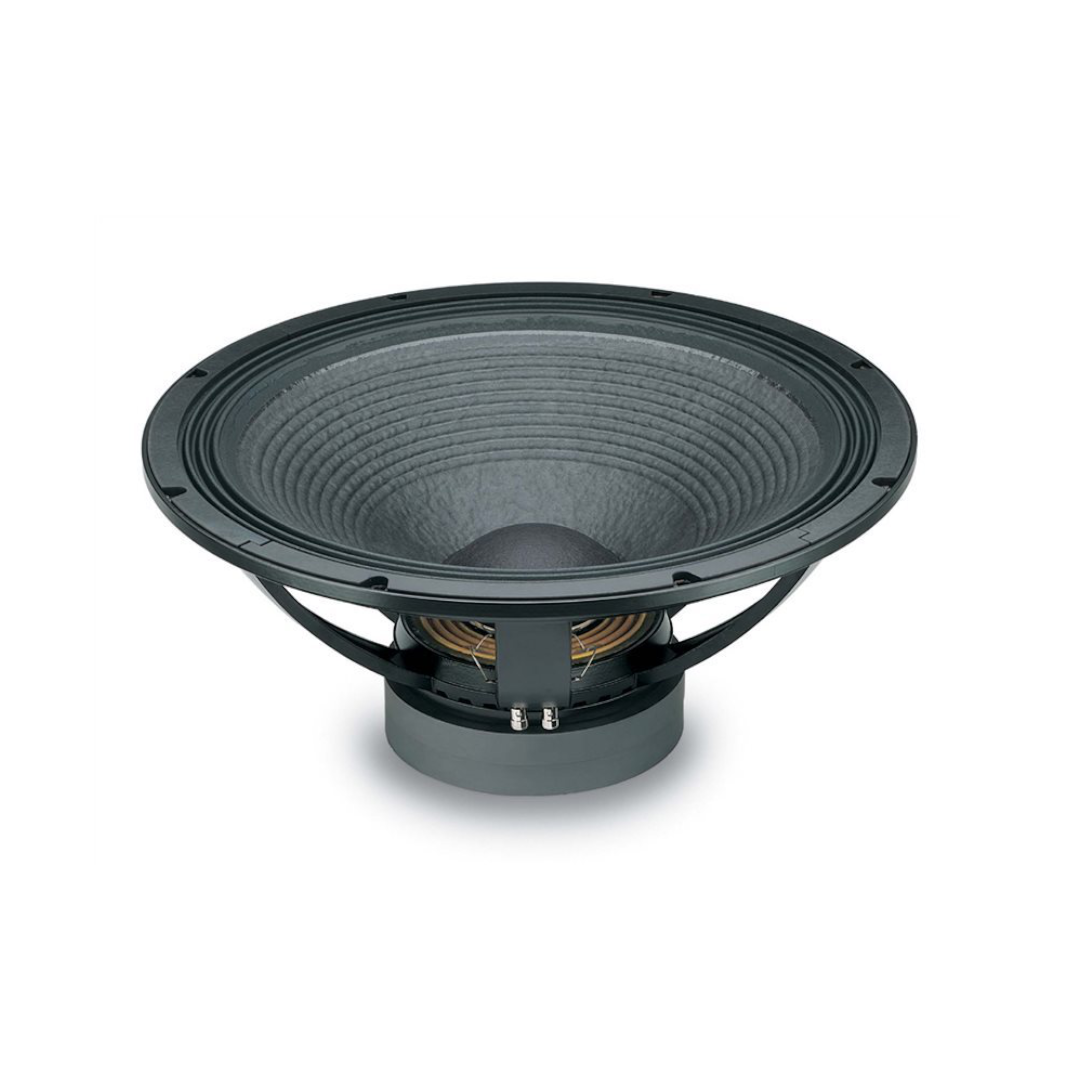

18 Sound 21LW1400 – The Original 21-Inch DSS/DDR Flagship with Record Bandwidth Extension
The 18 Sound 21LW1400 is a 21-inch high performance extended low frequency loudspeaker. The transducer can be used as a subwoofer component, in either a reflex, band-pass or horn-loaded configuration, in high power auditorium or arena loudspeaker systems. It provides clean and undistorted LF reproduction at very high SPL and enables the speaker to withstand high power levels without damage.
At 24 Hz – 2000 Hz, the 18 Sound 21LW1400’s published bandwidth extends deeper than any other driver documented across this entire comprehensive session — 1 Hz below the closely related 21NLW9601’s already exceptional 25 Hz lower limit, confirming this original 21-inch flagship platform reaches the most profound infrasonic territory covered anywhere in this exploration of 18 Sound’s complete LF driver range.
The 21LW1400 design features include an exceptional displacement suspension system which, in conjunction with a carbon fibre reinforced straight-ribbed cone and the Double Silicon Spider (DSS), produces an ultra-linear piston action, providing full control across the entire working range. The 100 mm inside outside copper voice coil, based on 18 Sound’s Interleaved Sandwich Voice-coil (ISV) technology, reaches high levels of thermal stability and durability.
The low distortion and unmatched sound quality of the 18 Sound 21LW1400 has been significantly improved by the Double Demodulating Rings (DDR) embedded in the pole piece of the magnetic structure, designed to dramatically reduce the intermodulation and harmonic distortion while improving transient response at the same time.
Design and Construction of the 18 Sound 21LW1400
ISV technology is based on a high strength fibreglass former with half the coil wound on the outside and half on the inside and bonded together using unique high temperature resin adhesives. This results in a balanced linear motor unit which can exert an exceptionally high force factor.
Excellent heat dissipation has been achieved using the special basket design which incorporates air channels between the basket and the magnetic top plate. In addition, 8 air vents incorporated into the back plate are aligned with the voice coil to force air into the lower part of the gap — the identical “8 air vents” ventilation specification documented on both the 18LW1400 and 18LW1251 earlier in this session, confirming this precise engineering detail was carried across 18 Sound’s flagship platforms at multiple diameters.
The 33.5 Tm force factor driving 296 g of moving mass produces 99 dB sensitivity and the 0.24 Qts / 116 Hz EBP alignment — a genuinely strong sensitivity figure for a driver of this substantial force factor and bandwidth class.
The 18 Sound 21LW1400 is ready to perform properly under inclement weather conditions. This has been achieved using an exclusive treatment which improves pulp strength and gives water-repellent properties to both sides of the cone. Moreover, a special treatment is applied to the top and back plate of the magnetic structure which is far more resistant to the corrosive effects of salts and oxidisation than any other treatment in use.
At 17.0 kg, 545 mm overall diameter, 520 mm bolt circle, 492 mm baffle cutout, 259 mm depth, and 14 mm flange, the 18 Sound 21LW1400 is the deepest-mounting 21-inch driver documented in this session (259 mm, exceeding the 21NLW9601/9601C/9001 family’s 250 mm), and the second-heaviest driver documented across this entire comprehensive coverage.
Performance and Applications for the 18 Sound 21LW1400
The 18 Sound 21LW1400 delivers 99 dB sensitivity across the deepest bandwidth documented in this session, 24 Hz – 2000 Hz. 18 Sound recommends a 300-litre (10.59 ft³) vented enclosure tuned to 30 Hz.
The 1000 W AES / 1600 W continuous power handling is more modest than several of the newer, higher-power 21-inch platforms documented elsewhere in this session, but the driver’s combination of DSS suspension control and DDR distortion reduction confirms this was engineered as a genuinely premium flagship platform in its own right, suitable for the demanding high power auditorium or arena loudspeaker systems 18 Sound specifically targets.
The 9.5 mm Xmax with the 1660 cm² radiating area produces substantial volume displacement appropriate for reflex, bandpass, or horn-loaded subwoofer applications at this scale.
With no listed alternative model on its own product page — unlike nearly every other driver documented across this extensive session — the 18 Sound 21LW1400 appears to represent a foundational, actively catalogued platform rather than one that has been formally superseded, closing out this comprehensive exploration of 18 Sound’s complete LF driver range with a driver that may well represent the origin point from which the entire 21-inch family — the 21NLW9601, 21NLW9601C, 21NLW9001, 21LW2600, and 21NLW4100 — ultimately descended.
Conclusion – 18 Sound 21LW1400 Subwoofer Driver
The 18 Sound 21LW1400 delivers the deepest bandwidth extension documented across this entire comprehensive session at 24 Hz, combined with DSS suspension technology, DDR distortion reduction, and a carbon fibre reinforced cone built specifically for high power auditorium and arena applications. At 17.0 kg, this is the second-heaviest driver documented anywhere in this exploration of 18 Sound’s complete LF range, trailing only the closely related 21LW2600 by a mere 100 grams.
This closes out an extraordinarily thorough, comprehensive session covering 18 Sound’s entire LF driver catalogue — from the smallest 5-inch 5W430 through this genuinely foundational 21-inch flagship, spanning every diameter, every magnet material, every suspension and motor technology, and every application category the company produces.
