18 Sound 21NLW9601 – The Definitive Force Factor Champion Across 18 Sound’s Entire LF Driver Range

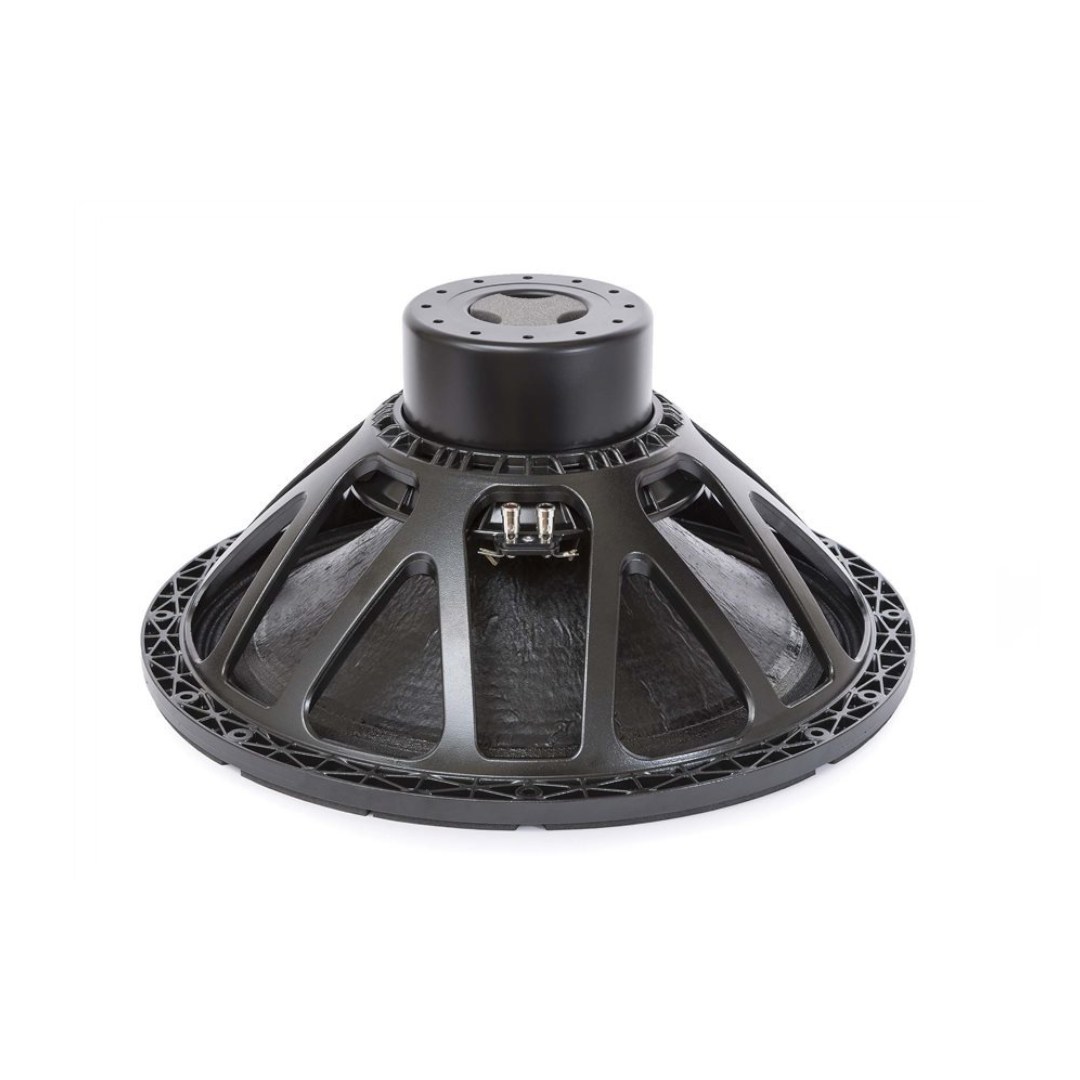

The 18 Sound 21NLW9601 is a 21-inch neodymium high performance transducer. It is the evolution of the 21NLW9600 speaker. The transducer is suitable for high loading, ultra-low frequency horn-loaded as well as bandpass subwoofer designs. For optimum results, recommended amplifier should be able to deliver 3600 W program power without clipping.
The 43.0 Tm force factor documented on this driver is, without any qualification, the definitive force factor champion across this entire comprehensive session’s exploration of 18 Sound’s complete LF driver range — exceeding the previous record-holder, the closely related 21NLW9601C, by more than 25%, and dwarfing every other driver covered from 5 inches through 21 inches. This is a genuinely extraordinary figure that redefines the ceiling of motor authority documented anywhere in this coverage.
At the heart of the transducer stands the improved Triple Silicon Spider (TSS), letting the 18 Sound 21NLW9601 control the moving mass with exceptional linearity, showing an exceptional stability of mechanical parameter values in the long term. Bl force factor, as well as all electro-dynamic parameters, are linear within the working range. This, together with the high excursion behaviour — 70 mm before damage, ±14 mm linear Xmax — makes the 18 Sound 21NLW9601 an extremely low distortion, highly dynamic transducer.
Notably, despite carrying this staggering force factor, the 18 Sound 21NLW9601 achieves 98 dB sensitivity — 3.5 dB above the closely related 21NLW9601C’s 94.5 dB — confirming that the extreme motor force here translates directly into genuinely superior efficiency rather than simply brute mechanical strength at the expense of output.
Design and Construction of the 18 Sound 21NLW9601
The state-of-the-art 5.3-inch diameter ISV copper voice coil shows an inside-outside split winding, four-layer design, enabling the 18 Sound 21NLW9601 to handle up to 3600 W program power. The already low distortion and sound quality are further improved by an aluminium Single Demodulating Ring (SDR technology) that flattens impedance and phase with a constant power transfer.
The 18 Sound 21NLW9601 has been developed after intense FEA and fluid dynamics simulation and testing, focusing on dissipating the heat generated by the powerful 5.3-inch coil. Special attention was given to the optimisation of air flow into the gap without introducing audible noise. A special low-density material air diffractor placed into the backplate acts as a cooling system, increasing the power handling capability and lowering the power compression figure.
Weight reduction was a key development aspect of the 18 Sound 21NLW9601, resulting in a net value of 13.5 kg — a genuinely remarkable achievement given the driver’s extraordinary 43.0 Tm force factor, which would ordinarily require a substantially larger and heavier magnetic structure to achieve.
The 43.0 Tm force factor driving 408 g of moving mass produces 98 dB sensitivity and the 0.29 Qts / 119 Hz EBP alignment. The Bl/Mms ratio of 0.105 Tm/g may appear modest by the standards of lighter, smaller-format drivers documented earlier in this session, but the absolute force factor at this scale represents an entirely different order of electromagnetic authority.
The carbon fibre reinforced, straight ribbed cone shows a proprietary resin treatment for extra pulp strength and water-repellent properties. A special coating applied to both the top and back plates makes the transducer far more resistant to the corrosive effects of salts and oxidisation.
At 13.5 kg, 545 mm overall diameter, 520 mm bolt circle, 492 mm baffle cutout, 250 mm depth, and 18 mm flange, the 18 Sound 21NLW9601 matches the 21NLW9601C’s mounting footprint precisely.
Performance and Applications for the 18 Sound 21NLW9601
The 18 Sound 21NLW9601 delivers 98 dB sensitivity across a 25 Hz – 2000 Hz bandwidth — the deepest lower-frequency extension documented across this entire comprehensive session, reaching genuinely profound infrasonic territory at 25 Hz.
18 Sound recommends a 200-litre (7.06 ft³) vented enclosure tuned to 38 Hz. The 1800 W AES / 3600 W continuous power handling, combined with the extraordinary 43.0 Tm force factor and the largest radiating area documented in this session at 1662 cm², produces a genuinely unparalleled combination of sensitivity, motor control, and volume displacement for the most demanding high loading, ultra-low frequency horn-loaded, and bandpass subwoofer designs.
The comparison to the 21NLW9601C is genuinely striking: both share the same coil diameter, TSS suspension, and SDR technology, yet the 18 Sound 21NLW9601 achieves 30% more force factor (43.0 vs 33.2 Tm) while simultaneously delivering higher sensitivity (98 vs 94.5 dB) and deeper bass extension (25 vs 33 Hz), from marginally less weight (13.5 vs 13.6 kg). This is a genuinely superior specification across nearly every dimension, suggesting the 21NLW9601 represents a more thoroughly optimised motor design than its closely related sibling.
Conclusion – 18 Sound 21NLW9601 Subwoofer Driver
The 18 Sound 21NLW9601 is the definitive force factor champion documented across this entire comprehensive session’s exploration of 18 Sound’s complete LF driver range, from 5 inches through 21 inches. At 43.0 Tm, this driver’s motor authority exceeds every other transducer covered by a wide margin, while simultaneously delivering 98 dB sensitivity, 25 Hz bass extension, and 3600 W continuous program power handling from just 13.5 kg.
For the most extreme high loading, ultra-low frequency horn-loaded and bandpass subwoofer applications where maximum motor authority, maximum sensitivity, and maximum bass extension must all be achieved simultaneously, the 18 Sound 21NLW9601 represents the genuine pinnacle of everything documented across this comprehensive session.
