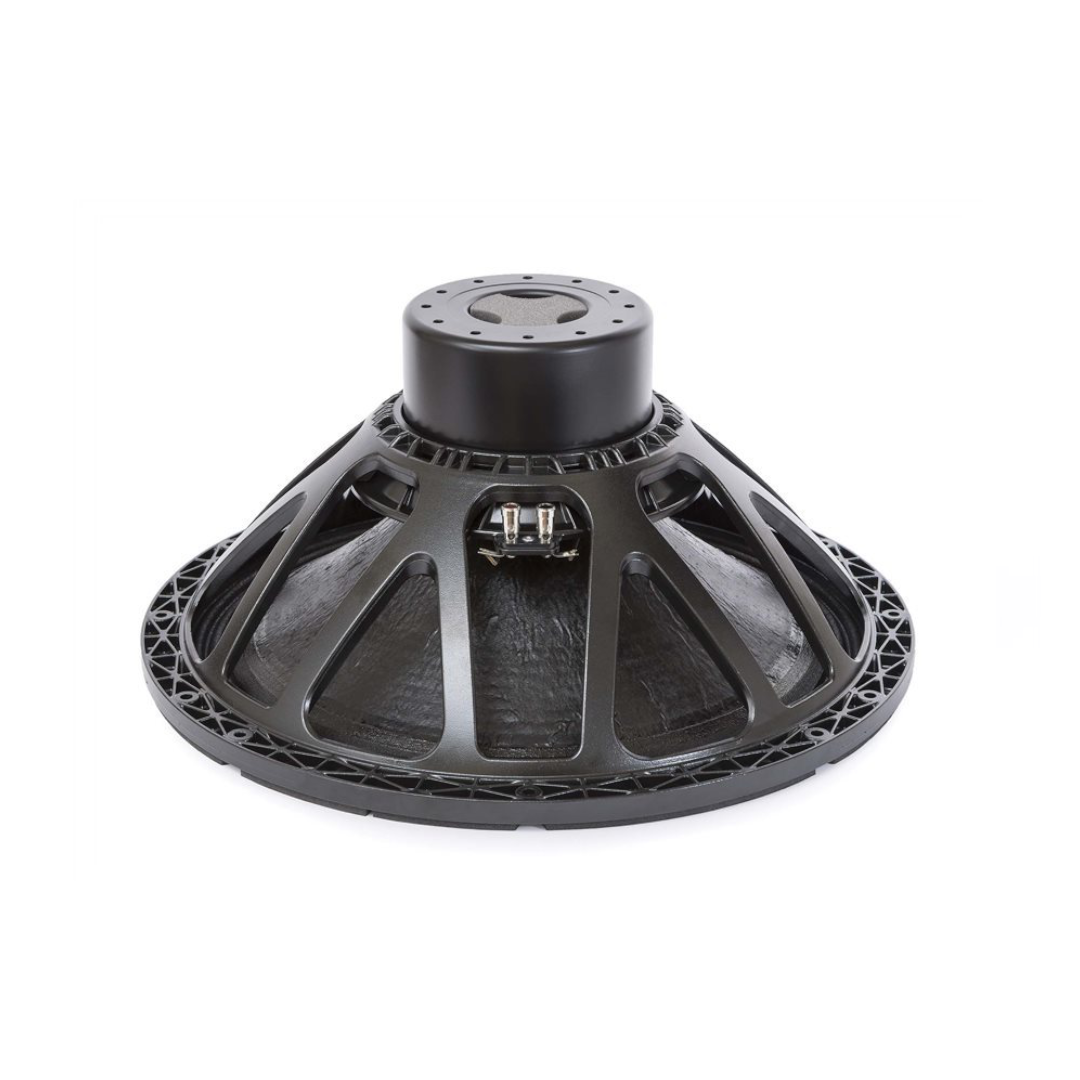

18 Sound 21NLW5300 – Ultra-Narrow-Bandwidth 21-Inch Deep Bass Specialist with 98.5 dB Sensitivity
The 18 Sound 21NLW5300 is an ultra low frequency 21-inch neodymium high performance transducer. The transducer has been optimised for direct radiation and bandpass subwoofer cabinet designs. For optimum results, recommended amplifier should be able to deliver 3600 W program power without clipping. At just 30–500 Hz, this driver’s published bandwidth is the narrowest documented among any 21-inch driver covered in this session — confirming an even more deliberate deep-bass-only specialisation than the closely related 21NLW9001/9601/9601C family, all of which extend to at least 1500 Hz.
At the heart of the updated design stays the improved double silicon spider based on DSS technology, letting the 18 Sound 21NLW5300 control the moving mass with high linearity, showing an exceptional stability of mechanical parameter values in the long term. The transducer design features include a high performance large displacement suspension system for improved cone control at very high level of SPL matching.
The state-of-the-art 5.3-inch diameter ISV aluminium voice coil is an inside-outside split winding, four-layer design, enabling the 18 Sound 21NLW5300 to handle up to 3600 W program power. The high excursion design — ±15.3 mm linear Xmax — makes the 18 Sound 21NLW5300 capable of amazing SPL in direct radiation enclosures.
At 98.5 dB, this driver delivers the highest sensitivity of the closely related 21-inch family documented across this session — 0.5 dB above the 21NLW9601/9001’s 98 dB, and 4 dB above the 21NLW9601C’s 94.5 dB — a genuinely notable efficiency achievement given the substantial 327 g moving mass and 15.3 mm Xmax this driver also carries.
Design and Construction of the 18 Sound 21NLW5300
The motor has been developed after intense FEA and fluid dynamics simulation and testing, focusing on dissipating the heat generated by the powerful 5.3-inch coil. Special attention was given to the optimisation of air flow into the gap without introducing audible noise. A special low-density material air diffractor placed into the backplate acts as a cooling system, increasing the power handling capability and lowering the power compression figure.
The low distortion and sound quality are further improved by an aluminium demodulating ring (SDR technology) that flattens impedance and phase with a constant power transfer. The 31.0 Tm force factor driving 327 g of moving mass produces 98.5 dB sensitivity, 2.6% reference efficiency, and the 0.32 Qts / 91 Hz EBP alignment.
The carbon fibre reinforced ribbed cone shows a proprietary resin treatment for extra pulp strength and water-repellent properties — notably described here as curvilinear rather than the straight cone profile documented on the 21NLW9001/9601/9601C family, marking a distinct cone geometry choice for this specific platform. A special coating applied to both the top and back plates makes the transducer far more resistant to the corrosive effects of salts and oxidisation.
At 14.0 kg, 545 mm overall diameter, 520 mm bolt circle, 492 mm baffle cutout, 251 mm depth, and 22 mm flange, the 18 Sound 21NLW5300 shares the same overall diameter and bolt circle as the rest of the 21-inch family, with a marginally deeper mounting depth (251 vs 250 mm) and notably thicker flange (22 vs 18 mm).
Performance and Applications for the 18 Sound 21NLW5300
The 18 Sound 21NLW5300 delivers 98.5 dB sensitivity across a deliberately narrow 30 Hz – 500 Hz bandwidth. 18 Sound recommends a 250-litre (8.83 ft³) vented enclosure tuned to 33 Hz.
The 1800 W AES / 3600 W continuous power handling, combined with the ±15.3 mm linear Xmax and 1662 cm² radiating area, produces genuinely amazing SPL in direct radiation enclosures, per 18 Sound’s own description — the extreme narrow bandwidth confirms every design parameter has been optimised purely for maximum output and control in the deepest bass registers, with no attempt to extend usefully beyond 500 Hz.
The 2.6% reference efficiency is a genuinely strong figure for a 21-inch driver of this excursion and power class, confirming the 31.0 Tm force factor and 327 g moving mass combination extracts excellent output per watt despite the driver’s substantial physical scale.
For direct radiation and bandpass subwoofer applications specifically requiring the highest available sensitivity within 18 Sound’s 21-inch range, combined with substantial excursion capability and the narrowest, most deep-bass-focused operating bandwidth documented in this session, the 18 Sound 21NLW5300 delivers a genuinely specialised and capable platform. 18 Sound now lists the 21NLW9601 — the definitive force factor champion documented across this entire session — as the alternative/current model.
Conclusion – 18 Sound 21NLW5300 Subwoofer Driver
The 18 Sound 21NLW5300 is a recently catalogued (2026) addition to 18 Sound’s 21-inch subwoofer range, delivering the highest sensitivity (98.5 dB) and the narrowest, most deep-bass-focused bandwidth (30–500 Hz) documented among the closely related 21-inch family explored across this session. The DSS suspension technology, SDR distortion reduction, and curvilinear carbon fibre reinforced cone combine for a driver purpose-built for direct radiation and bandpass applications demanding maximum sensitivity and excursion in the deepest bass registers.
This closes out an extraordinarily comprehensive session’s exploration of 18 Sound’s complete LF driver range, spanning from the 5-inch 5W430 through every intermediate diameter to this genuinely recent 21-inch flagship — a catalogue covering well over a hundred distinct transducers across nearly every conceivable application, technology, and performance tier 18 Sound produces.
