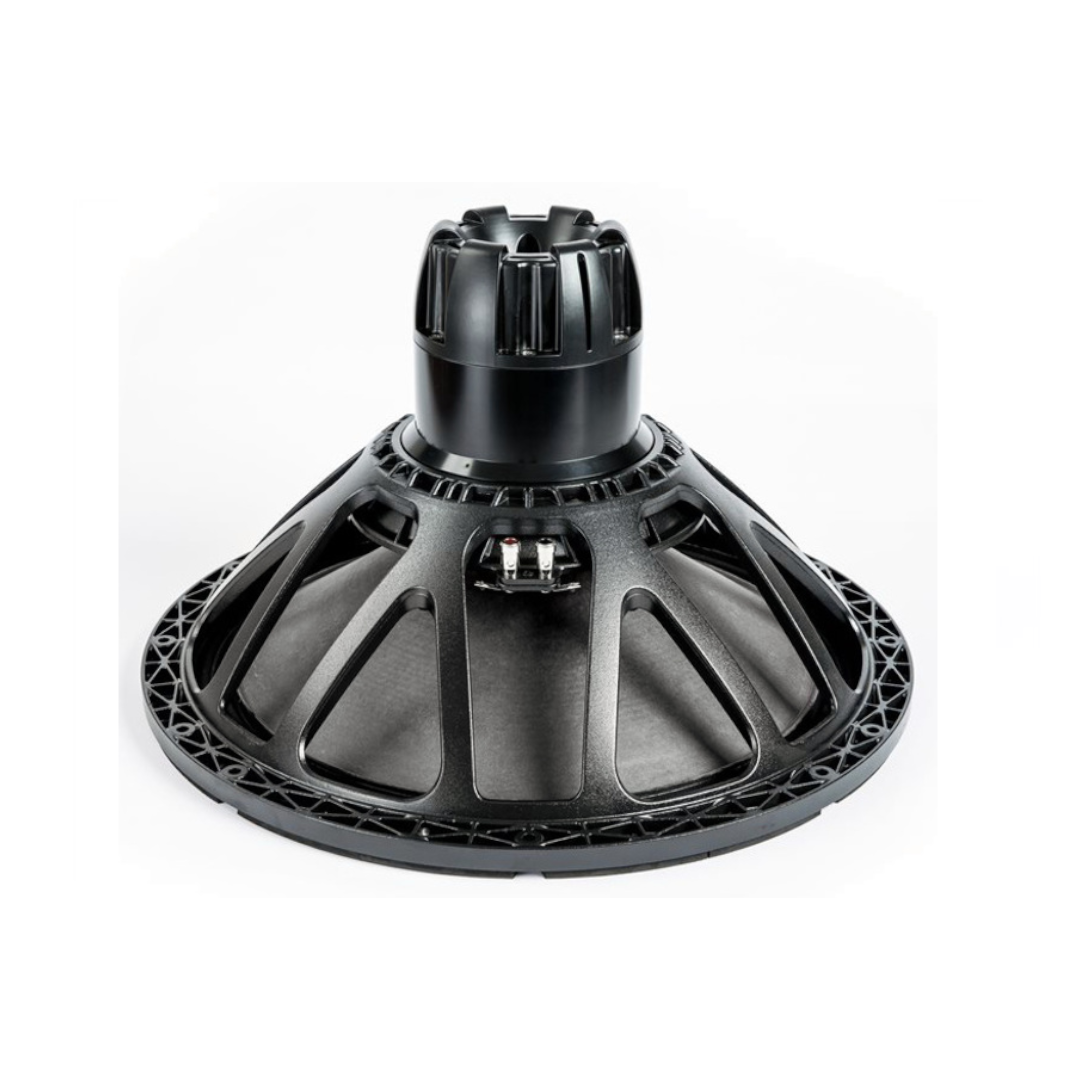

18 Sound 21NTLW5000 – The Largest Driver Documented in This Session, Setting a New Force Factor Record
The 18 Sound 21NTLW5000 is a 21-inch diameter next generation high performance subwoofer, specifically designed for high SPL very low frequency applications in either a reflex, bandpass, or horn-loaded configuration — the first and largest-diameter driver explored in this comprehensive session’s coverage of 18 Sound’s complete LF driver range. For optimum results, 18 Sound recommends the usage of power amplifiers able to deliver 4000 W program power without clipping, matching the exact continuous power handling documented on the 18-inch 18NTLW5000 flagship, here delivered from an even larger cone.
The 18 Sound 21NTLW5000 uses 18 Sound’s proprietary Tetracoil technology, where two different, axially separated magnetic gaps and two inside-outside 4.5-inch diameter aluminium voice coils are wound on the same former and suspended evenly in the two magnetic gaps — the same fundamental dual-gap, dual-coil architecture documented across the Tetracoil family throughout this session, here at its largest physical scale.
The Tetracoil design key advantages are: a symmetric flux density versus displacement behaviour that minimises even distortion products; a very symmetric and flat inductance curve; and the equivalent voice coil diameter of a 4.6-inch Tetracoil speaker is greater than 6 inches, so heat dissipation occurs over a larger surface area, driving AES power handling up to 1800 W.
The 32.0 Tm force factor is the highest documented across this entire comprehensive session, at any diameter — exceeding the previous record-holder, the single-coil 18NLW9601C’s 31.7 Tm, and confirming that at 21 inches, even a driver weighing just 12.5 kg can deliver more raw motor force than every other transducer covered in this session’s exploration of 18 Sound’s complete range.
Design and Construction of the 18 Sound 21NTLW5000
The 21NTLW5000 design features include a large displacement suspension system which, in conjunction with a fibreglass reinforced, straight ribbed cone, allows an ultra-linear piston action and provides full mechanical control across the entire working range through the 17.5 mm Xmax.
In order to further increase power handling and reduce power compression figure, a low-density material air diffractor is placed into the backplate venting hole acting as a cooling system, increasing power handling capability and lowering the power compression figure. 18 Sound specifically credits a low-noise forced air cooling design as a feature — active airflow management engineered to avoid introducing audible noise, the same acoustic-conscious cooling philosophy documented across several of 18 Sound’s most premium subwoofer platforms throughout this session.
The 32.0 Tm force factor driving 372 g of moving mass produces 97.0 dB sensitivity and the 0.36 Qts / 81 Hz EBP alignment — the extremely low EBP figure confirms a driver with genuinely flexible enclosure alignment, appropriate for the vented, horn-loaded, and bandpass applications 18 Sound specifically states this driver is suitable for.
The 18 Sound 21NTLW5000 is able to perform properly under inclement weather conditions: the exclusive cone treatment improves pulp strength and gives water-repellent properties to both sides of the membrane. In addition, magnetic structure metal plates coating is far more resistant than standard zinc coating to the corrosive effects of salts and oxidisation.
At 12.5 kg, 545 mm overall diameter, 492 mm baffle cutout, 320 mm depth, and 18 mm flange, the 18 Sound 21NTLW5000 is the largest physical driver documented across this entire session — yet at 12.5 kg, it weighs the same as the 18-inch Tetracoil 18NTLW5000, demonstrating that the neodymium Tetracoil architecture’s efficiency advantage scales remarkably well even to this substantially larger cone diameter.
Performance and Applications for the 18 Sound 21NTLW5000
The 18 Sound 21NTLW5000 delivers 97.0 dB sensitivity across a 30 Hz – 1800 Hz bandwidth. 18 Sound recommends a 200-litre (7.06 ft³) vented enclosure tuned to 33 Hz — suitable for vented, horn-loaded and bandpass applications, per 18 Sound’s own feature summary.
The 1800 W AES / 4000 W continuous power handling, combined with the 17.5 mm Xmax and the largest radiating area documented across this entire session at 1662 cm², produces genuinely enormous volume displacement — the sheer physical scale of a 21-inch cone moving through 17.5 mm of linear excursion at 4000 W continuous power represents the most extreme low-frequency reproduction capability documented anywhere in this comprehensive coverage.
For applications requiring the absolute maximum low-frequency output and displacement available from 18 Sound’s entire product range, at the largest diameter the company manufactures, the 18 Sound 21NTLW5000 represents the genuine ceiling of what this session’s exploration has covered. Available in both 4 and 8 Ω, this driver provides system design flexibility for the most demanding professional subwoofer applications imaginable.
18 Sound now lists the 21NLW9601 as the alternative/current model — confirming even at this extreme scale, 18 Sound continues to develop and refine its largest-format subwoofer platforms.
Conclusion – 18 Sound 21NTLW5000 Subwoofer Driver
The 18 Sound 21NTLW5000 closes this comprehensive session’s exploration of 18 Sound’s complete LF driver range at its largest physical scale — a 21-inch, 545 mm diameter transducer that nonetheless weighs just 12.5 kg thanks to the Tetracoil neodymium architecture’s exceptional efficiency. The 32.0 Tm force factor is the highest documented across this entire session, at any diameter, and the 1662 cm² radiating area is likewise the largest covered anywhere in this comprehensive review.
For the most extreme professional subwoofer applications demanding maximum displacement, maximum radiating area, and the strongest available motor force from 18 Sound’s complete product range, the 18 Sound 21NTLW5000 represents the genuine pinnacle of physical scale within this comprehensive coverage.
