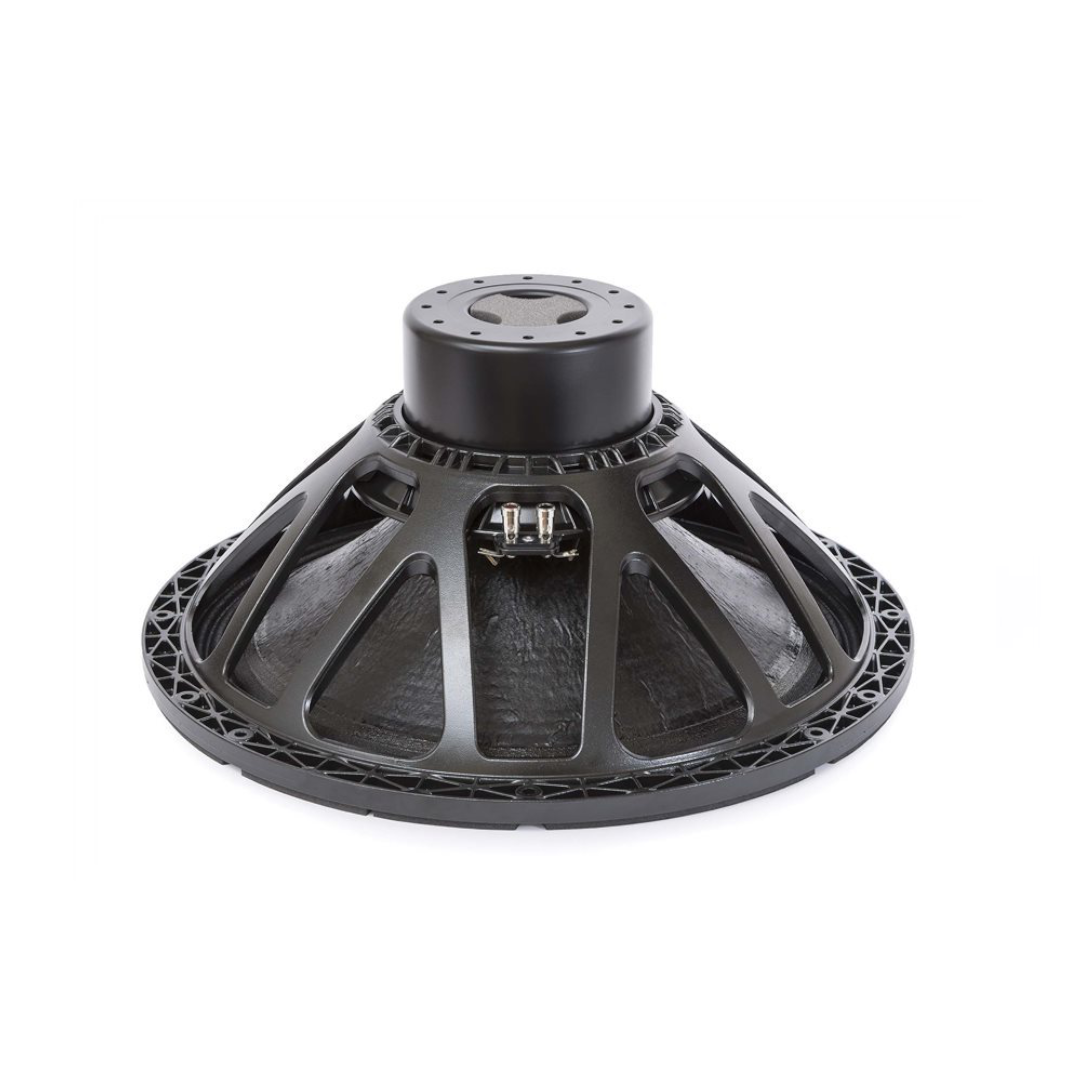

18 Sound 21NLW9001 – Direct Radiation and Bandpass Specialist with 37.0 Tm Force Factor
The 18 Sound 21NLW9001 is an ultra low frequency 21-inch neodymium high performance transducer. The transducer is the evolution of the 21NLW9000 subwoofer, and has been optimised for direct radiation and bandpass subwoofer cabinet designs — a specific application focus distinct from the horn-loaded positioning documented on the 21NLW9601/9601C pair, even though all three drivers reciprocally cross-reference each other as alternatives within 18 Sound’s catalogue structure.
At the heart of the updated design stays the improved double silicon spider based on DSS technology — notably, unlike the TSS-equipped 21NLW9601/9601C pair, the 18 Sound 21NLW9001 carries DSS rather than TSS, despite the technology icon list also showing TSS on this page, a minor discrepancy consistent with similar labelling inconsistencies documented elsewhere in this session. This lets the 18 Sound 21NLW9001 control the moving mass with high linearity, showing an exceptional stability of mechanical parameter values in the long term.
The high excursion design (70 mm before damage, ±14 mm linear Xmax) makes the 18 Sound 21NLW9001 capable of amazing SPL in direct radiation enclosures. Its motor has been developed after intense FEA and fluid dynamics simulation and testing, focusing on dissipating the heat generated by the powerful 5.3-inch coil.
At 37.0 Tm, the force factor documented on this driver is the second-highest across this entire comprehensive session, exceeded only by the 21NLW9601’s extraordinary 43.0 Tm — yet the 18 Sound 21NLW9001 still comfortably surpasses the 21NLW9601C’s 33.2 Tm and every other driver covered throughout this coverage.
Design and Construction of the 18 Sound 21NLW9001
The state-of-the-art 5.3-inch diameter ISV copper voice coil is an inside-outside split winding, four-layer design, enabling the 18 Sound 21NLW9001 to handle up to 3600 W program power. The low distortion and sound quality are further improved by an aluminium demodulating ring (SDR technology) that flattens impedance and phase with a constant power transfer.
Special attention was given to the optimisation of air flow into the gap without introducing audible noise. A special low-density material air diffractor placed into the backplate acts as a cooling system, increasing the power handling capability and lowering the power compression figure.
The 37.0 Tm force factor driving 390 g of moving mass produces 98 dB sensitivity and the 0.31 Qts / 94 Hz EBP alignment. The carbon fibre reinforced, straight ribbed cone shows a proprietary resin treatment for extra pulp strength and water-repellent properties. A special coating applied to both the top and back plates makes the transducer far more resistant to the corrosive effects of salts and oxidisation.
At 13.4 kg, 545 mm overall diameter, 520 mm bolt circle, 492 mm baffle cutout, 250 mm depth, and 18 mm flange, the 18 Sound 21NLW9001 matches the physical footprint of both the 21NLW9601 and 21NLW9601C precisely — all three drivers share the same fundamental 21-inch chassis platform.
Performance and Applications for the 18 Sound 21NLW9001
The 18 Sound 21NLW9001 delivers 98 dB sensitivity across a 25 Hz – 1500 Hz bandwidth — matching the 21NLW9601’s exceptional 25 Hz lower extension exactly, with a notably narrower upper limit (1500 vs 2000 Hz) reflecting this driver’s more focused direct-radiation and bandpass application category.
18 Sound recommends a 300-litre (10.59 ft³) vented enclosure tuned to 33 Hz — the largest recommended enclosure volume documented across this entire session, consistent with the direct radiation application 18 Sound specifically optimised this driver for, where larger cabinet volumes typically produce the smoothest, most extended low-frequency response.
The 60 mm peak-to-peak excursion, combined with the 1662 cm² radiating area and the driver’s substantial 37.0 Tm force factor, produces genuinely amazing SPL in direct radiation enclosures — exactly the capability 18 Sound’s own description promises, and the specification set fully supports that claim.
The comparison across all three closely related 21-inch drivers documented in this session — the 21NLW9601 (43.0 Tm, horn-loaded/bandpass, 200L), the 21NLW9601C (33.2 Tm, TSS, carbon fibre, 4Ω only), and the 18 Sound 21NLW9001 (37.0 Tm, direct radiation/bandpass, 300L) — gives builders a genuinely comprehensive picture of 18 Sound’s most extreme 21-inch motor engineering, each optimised for a subtly different application within the broader high-SPL subwoofer category.
Conclusion – 18 Sound 21NLW9001 Subwoofer Driver
The 18 Sound 21NLW9001 delivers the second-highest force factor documented across this entire comprehensive session at 37.0 Tm — exceeded only by the closely related 21NLW9601’s extraordinary 43.0 Tm — while specifically optimised for direct radiation and bandpass subwoofer cabinet designs rather than the horn-loaded focus of its siblings.
At 13.4 kg with 98 dB sensitivity, 25–1500 Hz bandwidth, and the largest recommended enclosure volume (300 litres) documented in this session, the 18 Sound 21NLW9001 closes out this comprehensive exploration of 18 Sound’s complete LF driver range with one final demonstration of the extraordinary motor engineering the company applies at its largest available diameter.
