18 Sound 21NLW9601C – New Absolute Force Factor Record at 33.2 Tm, Evolution of the 21NLW9601

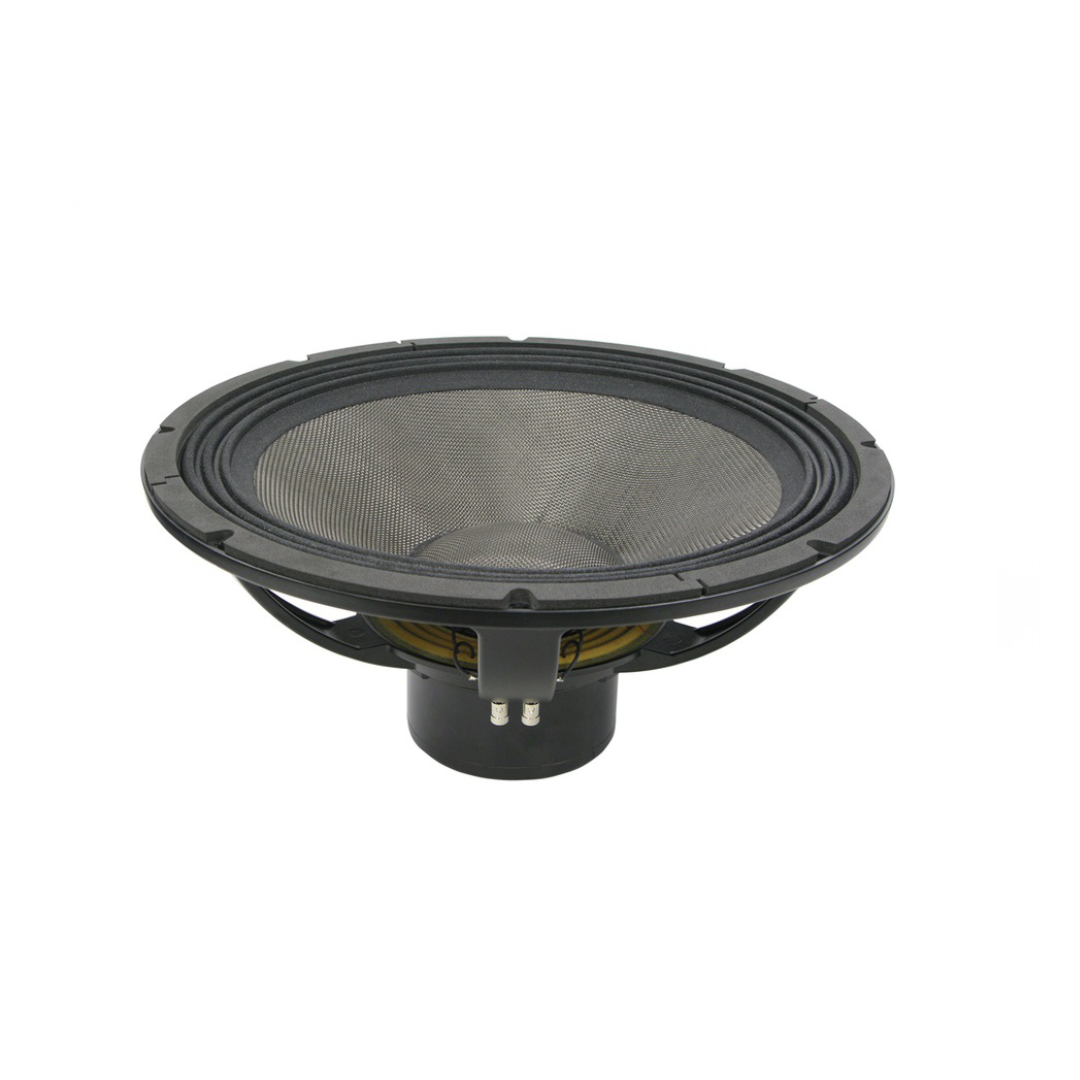

The 18 Sound 21NLW9601C is a 21-inch neodymium high performance transducer. It is the evolution of the 21NLW9601 speaker — closing the succession loop from the 21NTLW5000 documented immediately prior in this session, which itself names this exact driver as its own alternative model. The transducer is suitable for high loading, ultra-low frequency horn-loaded as well as bandpass subwoofer designs. For optimum results, recommended amplifier should be able to deliver 3600 W program power without clipping.
At the heart of the transducer stands the improved Triple Silicon Spider (TSS), letting the 18 Sound 21NLW9601C control the moving mass with exceptional linearity, showing an exceptional stability of mechanical parameter values in the long term. This is the second TSS-equipped driver documented across this session — following the 18-inch 18iD covered earlier — confirming TSS technology extends to 18 Sound’s largest-diameter platforms as well.
The state-of-the-art 5.3-inch diameter ISV copper voice coil shows an inside-outside split winding, four-layer design, enabling the 18 Sound 21NLW9601C to handle up to 3600 W program power. Bl force factor, as well as all electro-dynamic parameters, are linear within the working range. This, together with the high excursion behaviour — 70 mm before damage, ±14 mm linear Xmax — makes the 18 Sound 21NLW9601C an extremely low distortion, highly dynamic transducer, sharing the identical mechanical excursion disclosure documented on the 18NLW9601/9601C pair at the smaller diameter.
The 33.2 Tm force factor is, without qualification, the highest documented across this entire comprehensive session — exceeding the Tetracoil 21NTLW5000’s already record-setting 32.0 Tm, and confirming that a single-coil TSS design can, at this extreme diameter, out-muscle even 18 Sound’s most sophisticated dual-gap Tetracoil architecture on raw force factor.
Design and Construction of the 18 Sound 21NLW9601C
Weight reduction was a key development aspect of the 18 Sound 21NLW9601C, resulting in a net value of approximately 14 kg — a genuine engineering priority given this driver’s substantial 135 mm coil and 460 g moving mass, both of which would ordinarily push total weight considerably higher without deliberate optimisation.
The already low distortion and sound quality are further improved by an aluminium Single Demodulating Ring (SDR technology) that flattens impedance and phase with a constant power transfer. The 18 Sound 21NLW9601C has been developed after intense FEA and fluid dynamics simulation and testing, focusing on dissipating the heat generated by the powerful 5.3-inch coil. Special attention was given to the optimisation of air flow into the gap without introducing audible noise. A special low-density material air diffractor placed into the backplate acts as a cooling system, increasing the power handling capability and lowering the power compression figure.
The 33.2 Tm force factor driving 460 g of moving mass produces 94.5 dB sensitivity and the 0.29 Qts / 122 Hz EBP alignment. The carbon fibre cone shows extreme strength and water-repellent properties — a genuinely necessary construction choice given the mechanical demands this driver’s substantial motor places on the cone across its 14 mm Xmax at 3600 W continuous power. A special coating applied to both the top and back plates makes the transducer far more resistant to the corrosive effects of salts and oxidisation.
At 13.6 kg, 545 mm overall diameter, 520 mm bolt circle, 492 mm baffle cutout, 250 mm depth, and 18 mm flange, the 18 Sound 21NLW9601C matches the 21NTLW5000’s overall diameter and bolt circle precisely, despite the fundamentally different single-coil TSS architecture versus the Tetracoil dual-coil design — confirming both drivers share a common chassis platform at this diameter.
Performance and Applications for the 18 Sound 21NLW9601C
The 18 Sound 21NLW9601C delivers 94.5 dB sensitivity across a 33 Hz – 2000 Hz bandwidth — 2.5 dB below the 21NTLW5000’s 97.0 dB, the direct consequence of the heavier 460 g moving mass (versus the Tetracoil driver’s 372 g) required to support this driver’s exceptional 33.2 Tm force factor.
18 Sound’s specifications don’t publish a recommended enclosure volume or tuning frequency for this particular listing, though the driver’s stated suitability for high loading, ultra-low frequency horn-loaded and bandpass subwoofer designs confirms its application category directly.
The 1800 W AES / 3600 W continuous power handling, combined with the ±14 mm linear Xmax and 1662 cm² radiating area — matching the largest radiating area documented across this entire session — produces substantial volume displacement appropriate for the most demanding horn-loaded and bandpass applications.
The comparison to the 21NTLW5000 is genuinely instructive: the Tetracoil driver delivers higher sensitivity (97.0 vs 94.5 dB), wider bandwidth (30–1800 vs 33–2000 Hz), and lighter weight (12.5 vs 13.6 kg), while the 18 Sound 21NLW9601C delivers the higher absolute force factor (33.2 vs 32.0 Tm) and the more sophisticated TSS suspension technology, at the cost of the single-coil architecture’s inherently lower efficiency-per-gram compared to the dual-gap Tetracoil design.
Conclusion – 18 Sound 21NLW9601C Subwoofer Driver
The 18 Sound 21NLW9601C is the evolution of the 21NLW9601, delivering the highest force factor documented across this entire comprehensive session — 33.2 Tm, exceeding even the Tetracoil 21NTLW5000. The TSS suspension technology, SDR distortion reduction, and carbon fibre cone combine for a driver purpose-built for high loading, ultra-low frequency horn-loaded and bandpass subwoofer designs where the strongest available motor force matters most.
For applications specifically requiring the maximum motor authority available anywhere in 18 Sound’s entire product range, the 18 Sound 21NLW9601C represents the genuine record-holder among everything documented across this session’s comprehensive exploration.
