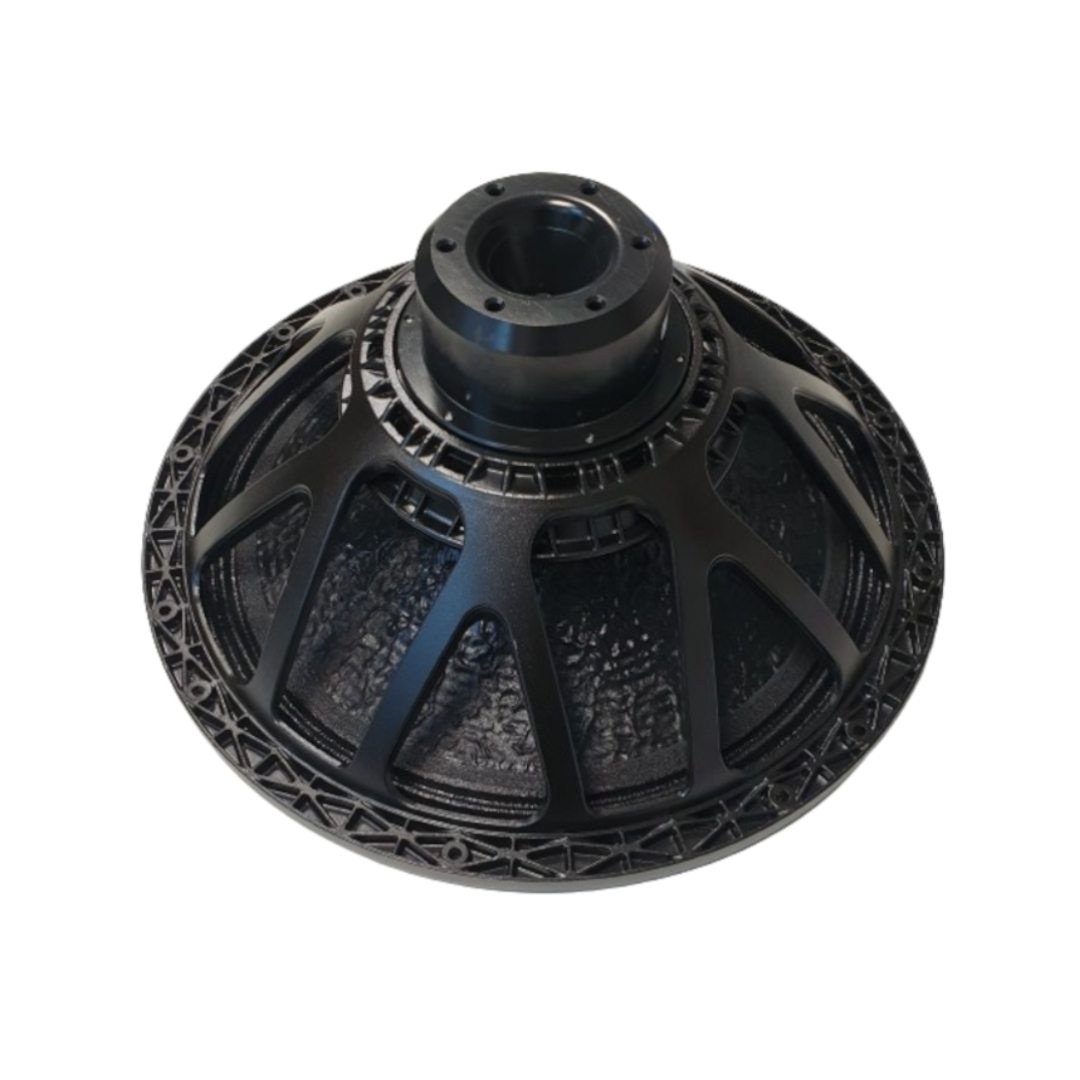

18 Sound 21NLW4100 – The Lightest 21-Inch Driver, Purpose-Built for Infra Subwoofer Applications
The 18 Sound 21NLW4100 is a 21-inch (533 mm) extended low frequency loudspeaker, designed for use in vented enclosures and infra subwoofers — an explicit application category not documented on any other 21-inch driver covered in this session, confirming this transducer’s singular focus on the deepest possible infrasonic reproduction. The loudspeaker is designed to withstand high power levels without damage while providing clean and undistorted LF reproduction at a very high SPL. For optimum results, 18 Sound recommends amplifiers able to deliver 3000 W program power.
The 18 Sound 21NLW4100 features a unique motor featuring a high grade neo magnet assembly in a structure optimised for thermal and magnetic efficiency — described using the same “ultra linear dual magnet motor design” terminology documented on the ferrite 18LW2600 earlier in this session, here applied to a neodymium platform instead. This dual-magnet approach, combined with neodymium rather than ferrite construction, is the direct engineering explanation for this driver’s remarkable weight advantage.
At 10.5 kg, the 18 Sound 21NLW4100 is, by a substantial margin, the lightest 21-inch driver documented across this entire session — more than 3 kg lighter than the closely related 21NLW9001/9601/9601C/5300 family (13.4–14.0 kg), despite carrying comparable power handling and even more total peak-to-peak excursion (60 mm).
21NLW4100 features include a large displacement suspension system which, in conjunction with a composite reinforced, straight ribbed cone, allows an ultra-linear piston action and provides full mechanical control across the entire working range. The 100 mm state-of-the-art voice coil utilising Interleaved Sandwich Voice coil (ISV) technology provides high levels of thermal stability and durability.
Design and Construction of the 18 Sound 21NLW4100
The 100 mm (4-inch) state-of-the-art voice coil, with a 36.5 mm winding depth operating in a 12.4 mm magnetic gap, utilises Interleaved Sandwich Voice coil (ISV) technology. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor. The 29.4 Tm force factor driving 374 g of moving mass produces 97 dB sensitivity, 1.8% reference efficiency, and the 0.46 Qts / 73 Hz EBP alignment — the most flexible Qts and lowest EBP of any 21-inch driver documented in this session, confirming genuine sealed-enclosure viability alongside the vented topology 18 Sound specifically recommends.
The 100 mm coil is notably smaller than the 135 mm coils documented on the 21NLW9001/9601/9601C/5300 family, yet still produces 15.2 mm of Xmax with 17.0 mm of Xvar — 60 mm total peak-to-peak excursion, matching or exceeding the excursion figures documented on several of the larger-coil siblings.
The already low distortion is further improved by the Single Demodulating Ring (SDR), reducing flux modulation and improving impedance and phase linearity across the driver’s substantial excursion range. Weather-protected cone and plate treatment provide outdoor durability.
At 10.5 kg, 545 mm overall diameter, 520 mm bolt circle, 492 mm baffle cutout, 245 mm depth, and 24 mm flange, the 18 Sound 21NLW4100’s dramatically reduced weight relative to its 135 mm-coil siblings confirms the smaller coil diameter and the neodymium dual-magnet motor’s efficiency deliver a genuinely transformative power-to-weight advantage at this extreme diameter.
Performance and Applications for the 18 Sound 21NLW4100
The 18 Sound 21NLW4100 delivers 97 dB sensitivity across a deliberately narrow 32 Hz – 300 Hz bandwidth — the narrowest documented among any 21-inch driver covered in this session, and among the narrowest documented anywhere across this entire comprehensive coverage of 18 Sound’s LF range. This confirms the driver’s singular purpose as a genuine infra subwoofer component, with no attempt whatsoever to extend into conventional mid-bass territory.
18 Sound recommends a 250-litre (8.83 ft³) vented enclosure tuned to 33 Hz — matching the 21NLW5300’s cabinet recommendation exactly, despite the different coil diameter and motor architecture between the two drivers.
The 1500 W AES / 3000 W continuous power handling, combined with the 15.2 mm Xmax and 1661 cm² radiating area — matching the largest radiating area documented across this entire session — produces genuinely enormous volume displacement from the lightest 21-inch platform 18 Sound offers.
For touring and installed infra subwoofer applications where minimum weight matters significantly alongside genuine infrasonic reproduction capability, the 18 Sound 21NLW4100’s combination of light construction and extreme excursion makes it the most portable option within 18 Sound’s largest-diameter range. 18 Sound now lists the 21LW2600 as the alternative/current model.
Conclusion – 18 Sound 21NLW4100 Subwoofer Driver
The 18 Sound 21NLW4100 is the lightest 21-inch driver documented across this entire comprehensive session — 10.5 kg, more than 3 kg lighter than every other 21-inch driver covered — while delivering the narrowest, most purpose-built infra subwoofer bandwidth (32–300 Hz) and 60 mm of total peak-to-peak excursion. The dual-magnet neodymium motor design and 100 mm ISV coil combine for genuinely exceptional power-to-weight efficiency at this extreme diameter.
This closes out an extraordinarily thorough exploration of 18 Sound’s complete LF driver catalogue, spanning from the smallest 5-inch platforms through the largest 21-inch flagships, covering ferrite, neodymium, ISV, Tetracoil, DSS, TSS, DDR, SDR, AIC, and Class D-optimised technologies across the company’s entire professional loudspeaker range.
