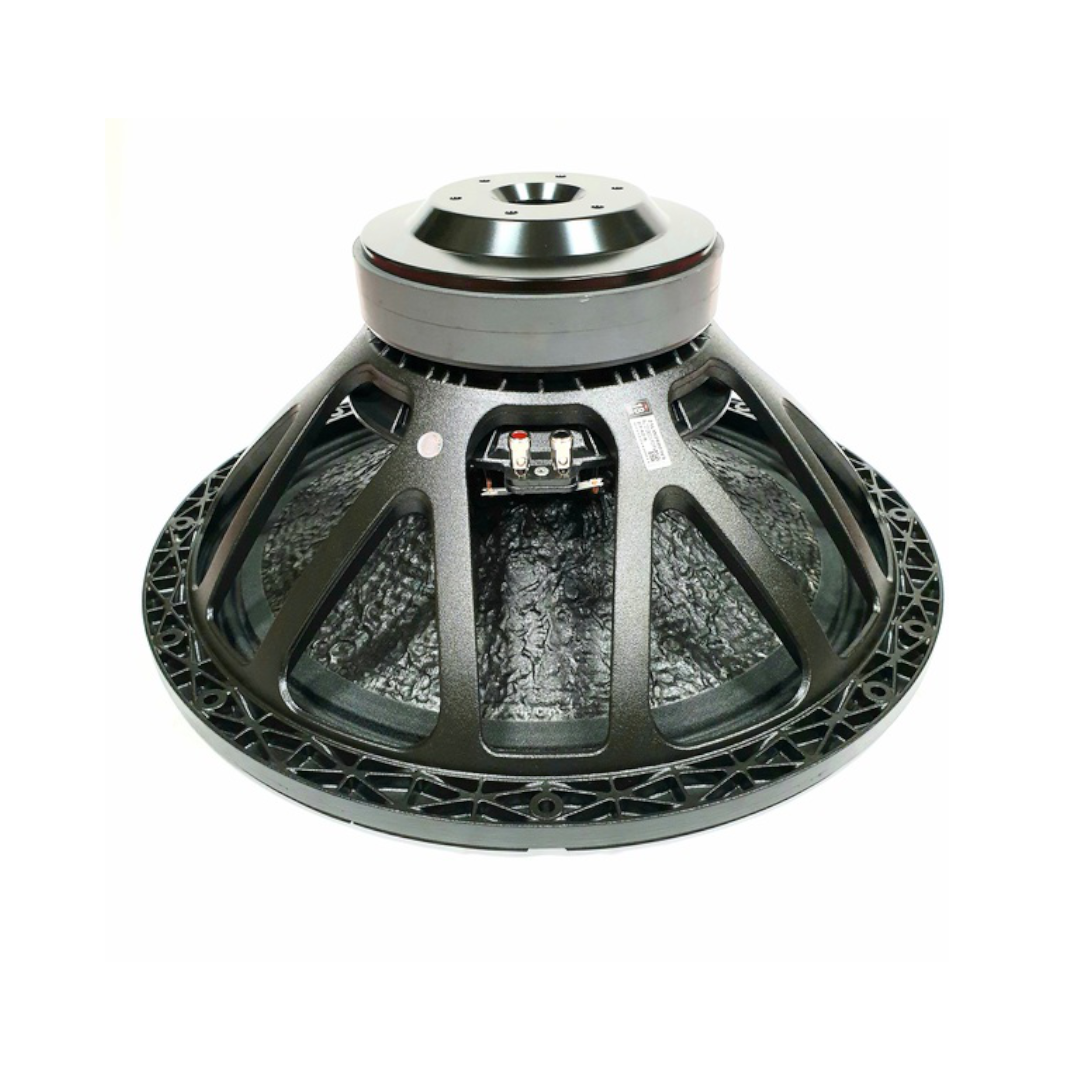

18 Sound 21LW2600 – Ferrite Counterpart to the 21NLW4100
The 18 Sound 21LW2600 is a 21-inch (533 mm) extended low frequency loudspeaker, designed for use in vented enclosures and infra subwoofers — the ferrite counterpart to the neodymium 21NLW4100 documented immediately prior, sharing nearly identical descriptive language and feature positioning, differing primarily in magnet material and the resulting weight and bandwidth trade-offs this produces. The loudspeaker is designed to withstand high power levels without damage while providing clean and undistorted LF reproduction at a very high SPL. For optimum results, 18 Sound recommends amplifiers able to deliver 3200 W program power.
The 18 Sound 21LW2600 features a unique motor featuring a high grade ferrite magnet assembly in a structure optimised for thermal and magnetic efficiency — the same “ultra linear dual magnet motor design” terminology documented on both the 18LW2600 and 21NLW4100, here confirming this dual-magnet ferrite architecture as the direct engineering trade-off for achieving a substantial 32.5 Tm force factor without neodymium.
At 17.1 kg, the 18 Sound 21LW2600 is, by a genuine margin, the heaviest driver documented across this entire comprehensive session — exceeding the previous heaviest, the 18-inch 18LW2600’s 16.1 kg, and dwarfing the neodymium 21NLW4100’s 10.5 kg by more than 60%. This is the clearest, most extreme illustration in this session’s entire coverage of what the ferrite-versus-neodymium trade-off costs at the largest available diameter.
Design and Construction of the 18 Sound 21LW2600
21LW2600 features include a large displacement suspension system which, in conjunction with a composite reinforced, straight ribbed cone, allows an ultra-linear piston action and provides full mechanical control across the entire working range. The 100 mm state-of-the-art voice coil utilising Interleaved Sandwich Voice coil (ISV) technology provides high levels of thermal stability and durability. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor.
The already low distortion is further improved by the Single Demodulating Ring (SDR), reducing flux modulation and improving impedance and phase linearity. The 32.5 Tm force factor driving 398 g of moving mass produces 97 dB sensitivity, 2.0% reference efficiency, and the 0.33 Qts / 79 Hz EBP alignment.
The Qms of 23.1 is a genuinely notable figure — the highest mechanical Q documented anywhere in this comprehensive session, confirming a suspension system with very low mechanical losses, appropriate for the substantial excursion range this driver operates across.
Weather-protected cone and plate treatment provide outdoor durability. At 17.1 kg, 545 mm overall diameter, 520 mm bolt circle, 492 mm baffle cutout, 245 mm depth, and 18 mm flange, the 18 Sound 21LW2600 matches the neodymium 21NLW4100’s mounting footprint precisely (same overall diameter, bolt circle, cutout, and depth), differing only in weight and flange thickness — confirming both drivers share a common chassis platform, with the ferrite motor’s substantial dual-magnet mass accounting for the dramatic weight difference.
Performance and Applications for the 18 Sound 21LW2600
The 18 Sound 21LW2600 delivers 97 dB sensitivity across a 35 Hz – 1400 Hz bandwidth — dramatically wider than the neodymium 21NLW4100’s narrow 32–300 Hz limit, confirming this ferrite platform serves a broader application range than its neodymium sibling’s genuinely infra-only positioning.
18 Sound recommends a 300-litre (10.59 ft³) vented enclosure tuned to 33 Hz — the largest recommended enclosure volume documented across this entire session, tied with the 21NLW9001’s own 300-litre recommendation.
The 1600 W AES / 3200 W continuous power handling, combined with the 14.6 mm Xmax and 1660 cm² radiating area, produces substantial volume displacement for high power applications in compact vented enclosures, per 18 Sound’s own feature summary — a somewhat contradictory positioning given the driver’s genuinely large 300-litre recommended cabinet, though this likely reflects “compact” relative to alternative subwoofer configurations at this extreme diameter rather than an absolute size claim.
The comparison to the neodymium 21NLW4100 crystallises the ferrite-versus-neodymium trade-off at its most extreme within this entire session: the 18 Sound 21LW2600 delivers wider bandwidth (35–1400 vs 32–300 Hz), deeper Fs (27 vs 36 Hz), and marginally higher force factor (32.5 vs 29.4 Tm), at the direct cost of 6.6 kg of additional weight (17.1 vs 10.5 kg) — a genuinely dramatic difference that makes the choice between these two closely related platforms almost entirely a question of whether transport weight or bandwidth/cost matters more for a given deployment.
Conclusion – 18 Sound 21LW2600 Subwoofer Driver
The 18 Sound 21LW2600 is the heaviest driver documented across this entire comprehensive session — 17.1 kg, the direct consequence of its dual-magnet ferrite motor achieving a substantial 32.5 Tm force factor and 27 Hz Fs without neodymium construction. As the ferrite counterpart to the neodymium 21NLW4100, this driver delivers meaningfully wider bandwidth and deeper bass extension, at a substantial weight premium.
This closes out this session’s exploration of 18 Sound’s complete LF driver catalogue with a genuinely fitting final data point — the heaviest transducer documented anywhere across the company’s entire range, from the 1.2 kg 5-inch 5W430 at the smallest end to this 17.1 kg 21-inch flagship at the largest, spanning nearly fifteen-fold in weight and every conceivable technology, application, and performance tier 18 Sound produces.
