Description

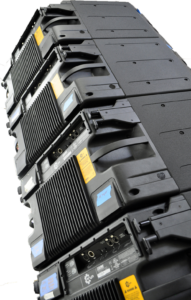

EAW ANYA
3-WAY FULL-RANGE ADAPTIVE ARRAY MODULE
EAW Anya is a complete, self-contained, high-power sound reinforcement system that adapts all performance parameters electronically, allowing it to be used in virtually any application. Columns of Anya modules hang straight, without any vertical splay, and Resolution 2 software adapts total system performance to produce asymmetrical output that delivers coherent, full-frequency range response across the entire coverage area as defined by the user. It is extremely powerful and immensely scalable, making it suitable for anything from small venues to the largest stadiums.
EAW ANYA Specifications
| Frequency Response | 35 Hz to 18 kHz |
| Max SPL | 152 dB |
| Operating Mode | Amplifier Channels
2x LF; 6x MF; 14x HF |
| Subsystem | LF 2× 15-in cone, 4 in voice coil MF 6× 5-in cone, 38mm voice coil HF 14×1-in exit, 35mm voice coil |
| Nominal Beamwidth | Horz: 70° (for single column; scalable up to 360° utilizing multiple columns) Vert: Adaptive |
| Power Handling | LF 2 x 1,700W MF 6 x 350W HF 14 x 350W |
| Connections | Neutrik® powerCON™ TRUE1™ Analog & AES In/Loop 2x Neutrik® etherCON™ (DANTE enabled) |
| Dimensions | Height: 17.1 in Width: 45.2 in Depth: 30 in |
| Weight | 285 lbs (129.3 kg) |
Each Anya module includes 14x 1-in exit / 35mm voice coil HF compression drivers loaded on a proprietary HF horn that expands to fill nearly the entire face of the enclosure. 6x 5-in MF cone transducers, arranged in two columns of three, use Radial Phase Plugs™ and Concentric Summation Array™ technology to enter the horn and sum coherently with the HF wavefront. Dual 15-in LF cone transducers use Offset Aperture™ loading to increase the spacing of the apparent acoustical centers, extending effective horizontal pattern control well into the LF range.
The module’s horizontal symmetry ensures coherent summation without anomalies through the crossover regions that result from physically-offset acoustic sources. This provides consistent, HF dispersion and broadband pattern control in the horizontal plane. Each Anya module includes a field-replaceable power and processing unit with 22 channels of digital signal processing and amplification to drive each of the module’s 22 transducers.
Via Resolution 2 software, Adaptive Performance controls all performance parameters of the total array to develop an asymmetrical output profile shaped so that all listening locations as defined by the user receive nearly identical response. By carefully crafting the size and spacing of the transducers, EAW engineers enabled Anya to create radical coverage patterns (i.e., narrowly focused and directed almost straight down) while maintaining an appealing, musical sound quality.
